Traxxas

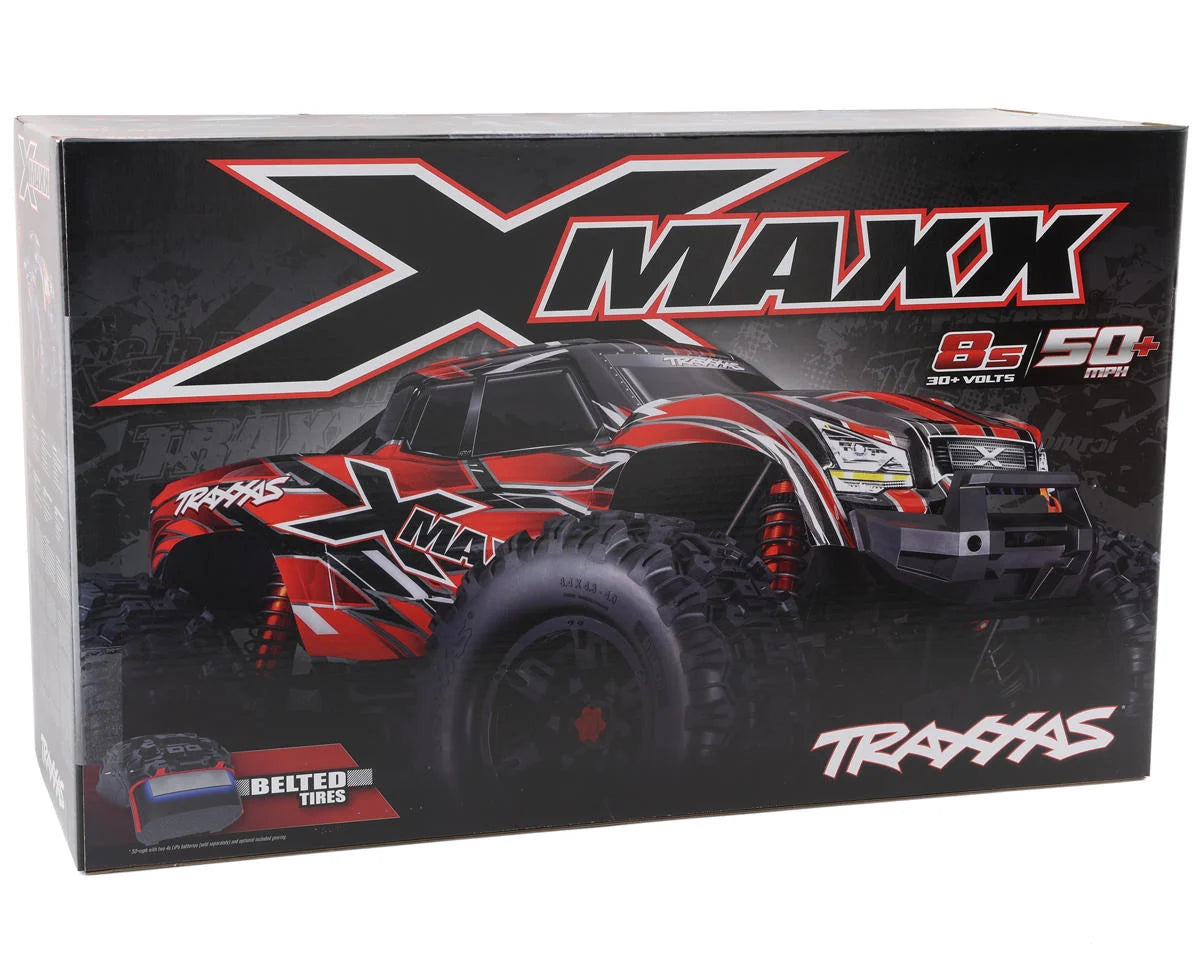

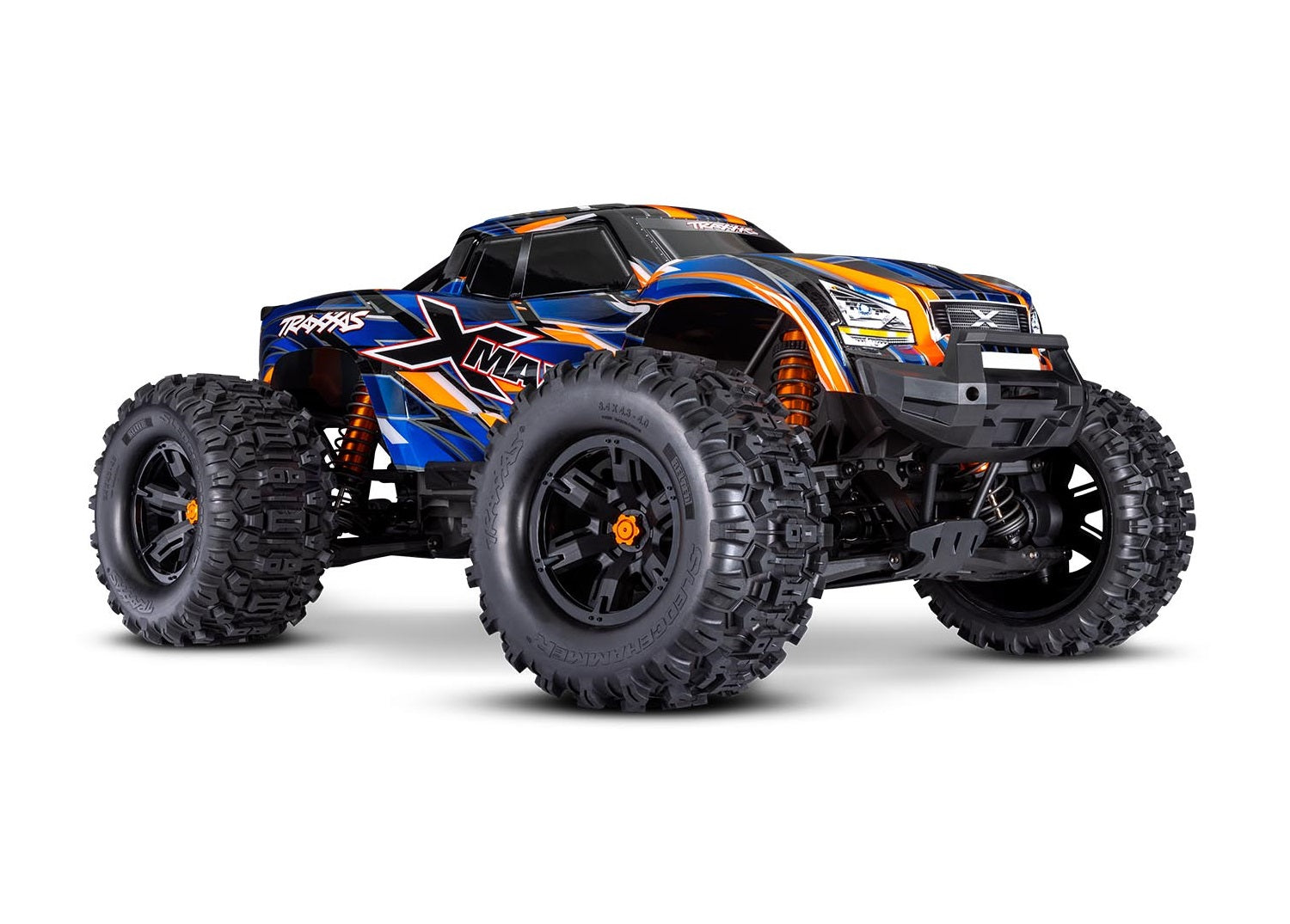

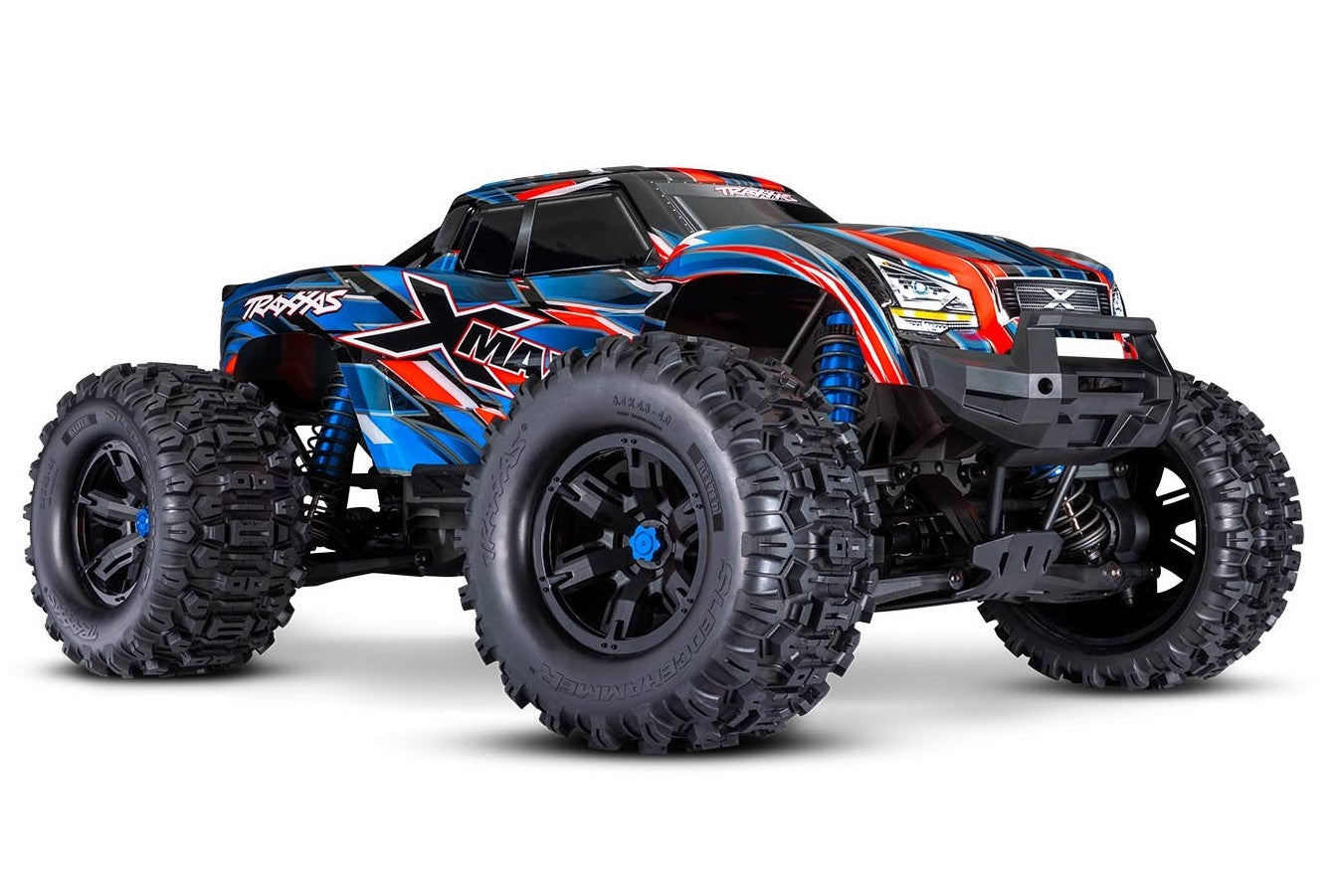

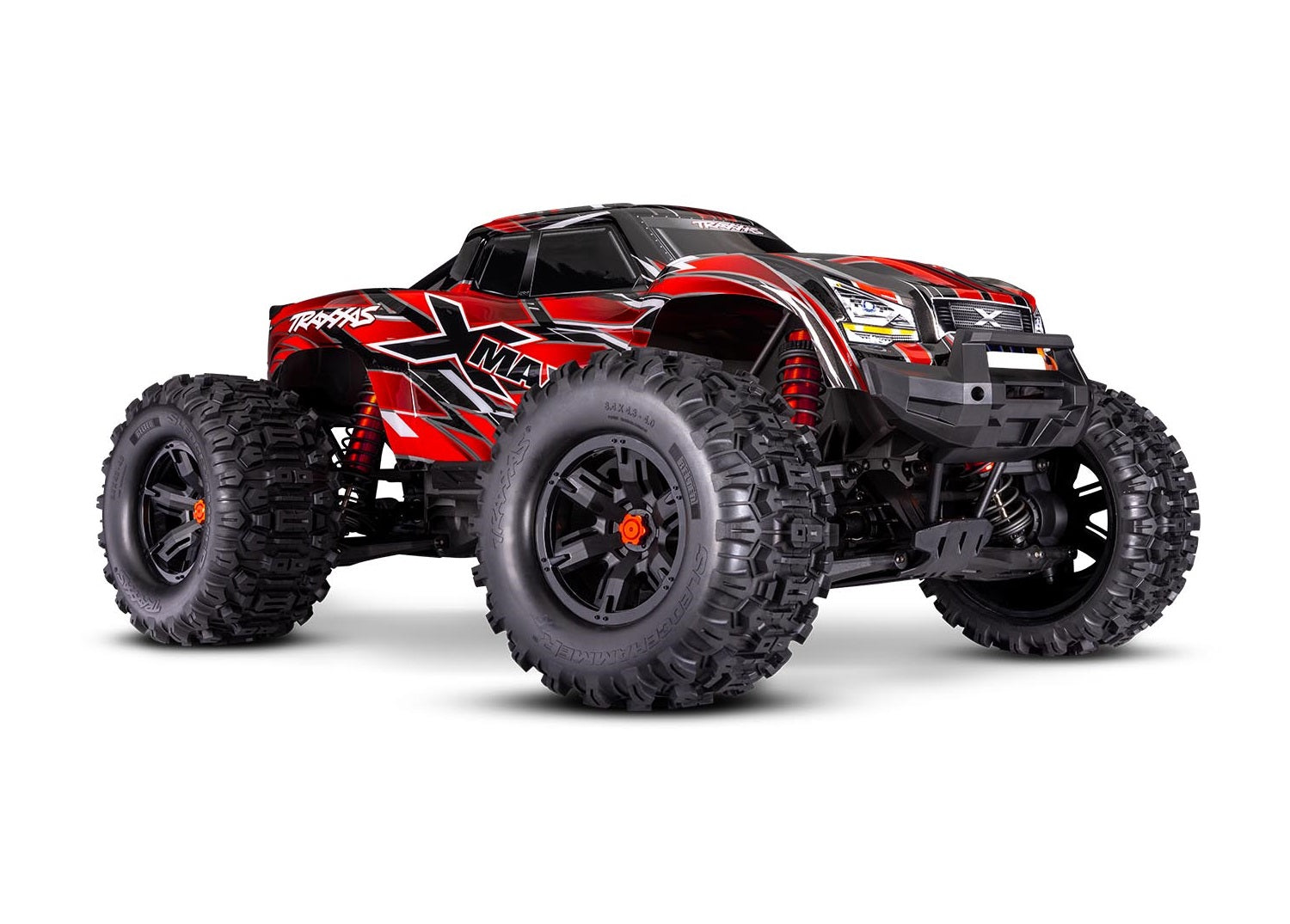

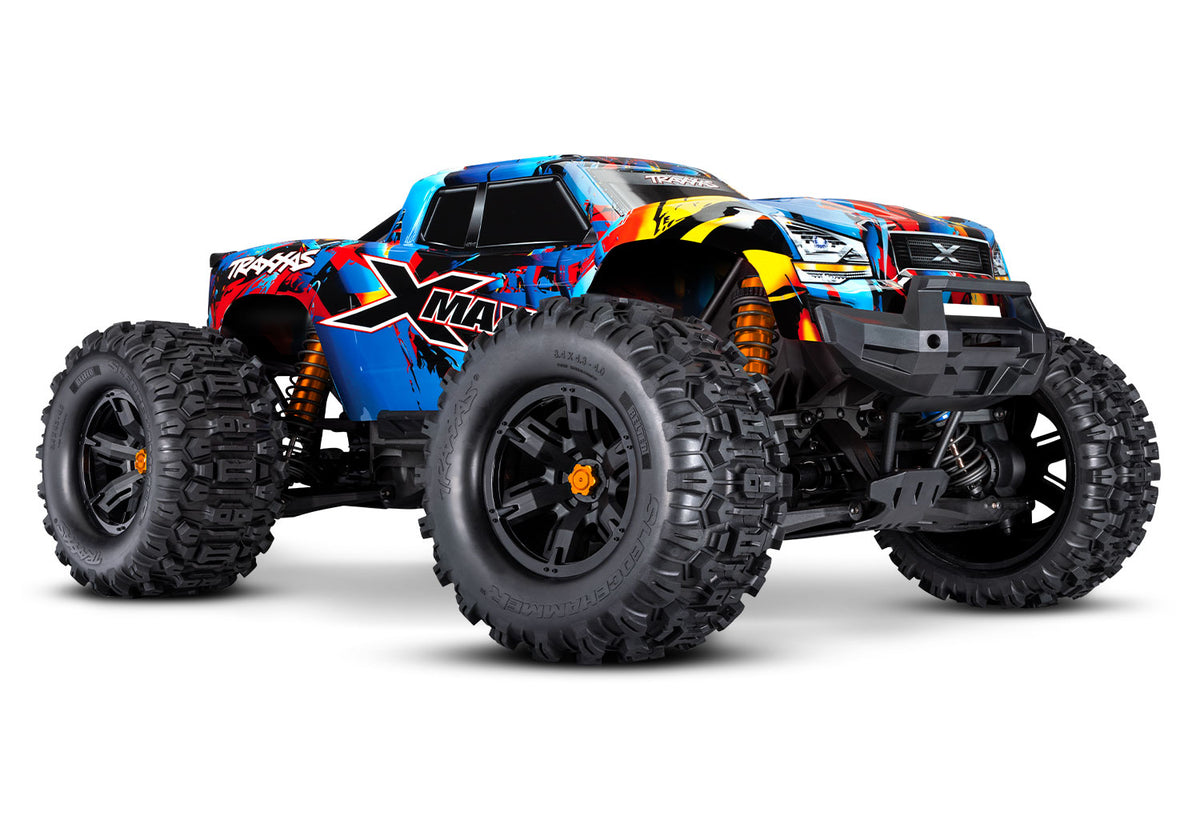

X-Maxx 8S 4WD Brushless RTR Monster Truck w/2.4GHz TQi Radio, TSM & Belted Tires

$899.95 USD

Sale Sold out

Shipping calculated at checkout.

Color Blue Green Orange Red

Product variants

SKU:77096-4

Quantity

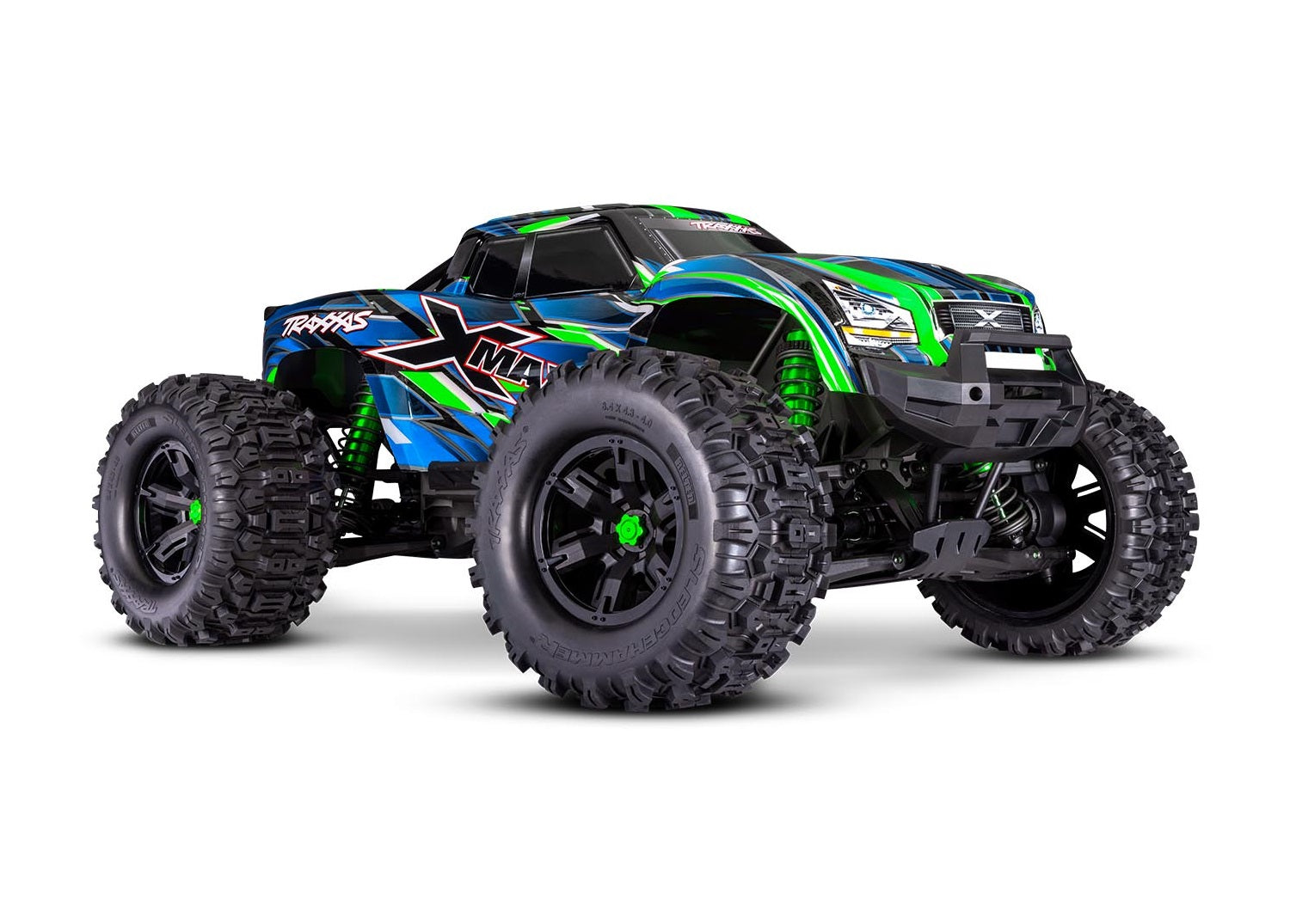

X-Maxx 8S 4WD Brushless RTR Monster Truck w/2.4GHz TQi Radio, TSM & Belted Tires

Includes:

(1) Traxxas X-Maxx 8S Monster Truck
(1) Product Manual

Needed To Complete:

(2) Traxxas 4S LiPo Battery with ID Connector
(1) Compatible Traxxas Charger
(4) AA Batteries for Transmitter

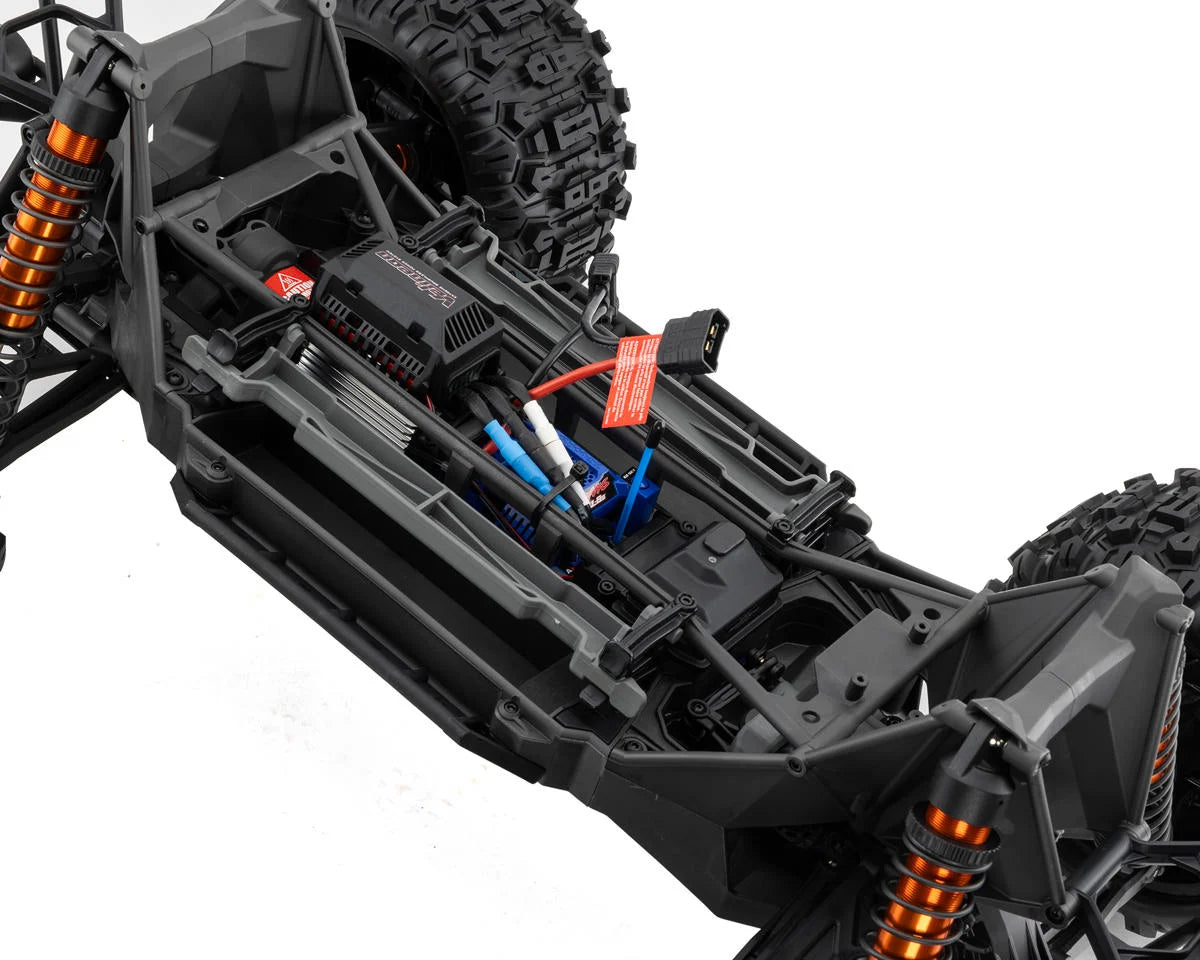

VXL-8s™ Waterproof Electronic Speed Control
- 8s LiPo compatible
- Built-in cooling fan
- Real-time telemetry via Traxxas Link
- Machined heat sinks
- 10-gauge silicone wire
- Integrated protection circuits
- LED status lights
Velineon^® 1200XL Brushless Motor
- “Big Block” brushless motor
- 4-pole 1275 kV
- 5 mm output shaft
- Aluminum slip-on heat sink
- Dual motor cooling fans
50+ MPH with Two 4s LiPo Batteries and Included Optional Spur Gear
Traxxas Stability Management^® (TSM)
- Helps prevents spinouts and loss of control
- Adjusts from off to 100% assistance from the transmitter
TQi™ 2.4 GHz High Output Radio System
- Traxxas Link™ enabled
- 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
- Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- BEC Voltage and Motor Temperature Sensor installed
Clipless Body Mount System
- Quick one-hand installation and removal
- Uses pivoting rear latch mechanism
- Eliminates body posts and clips

Drivetrain
- Full-time shaft-driven 4-wheel drive
- All-metal gears and CVDs
- Overdrive gearing pre-installed
- Torque-Biasing Center Drive™ absorbs shocks and distributes power

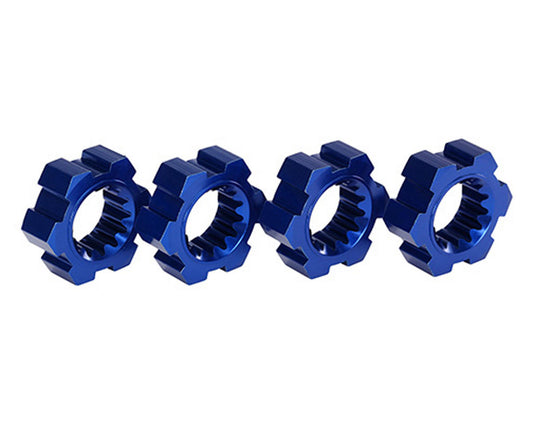

- 24 mm splined wheel hexes
- Wheel hexes retained with a clip
- 17 mm hex on outside of wheel
- Sealed, silicone fluid-filled diffs with large module ring and pinion gears
- Splined outdrives attached with external thru-bolt method
- Heavy-duty Cush Drive™ with steel spur gear
- Fully machined aluminum stub axles
- Splined aluminum center driveshaft
Heavy-Duty Fixed Motor Mount
- Precision, preset gear mesh adjustments
- No manual gear mesh adjustments are required
- Motor retention separate from gear mesh

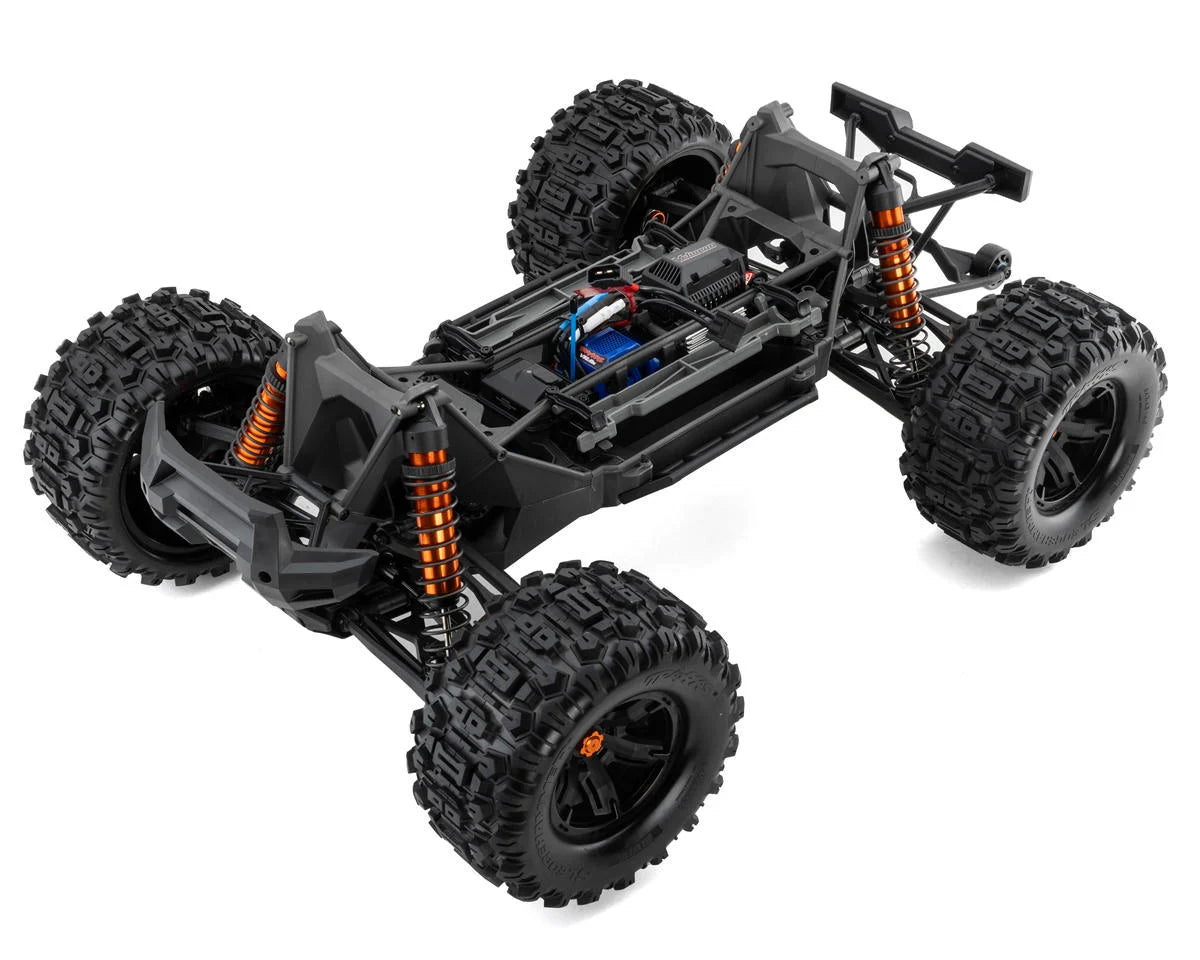

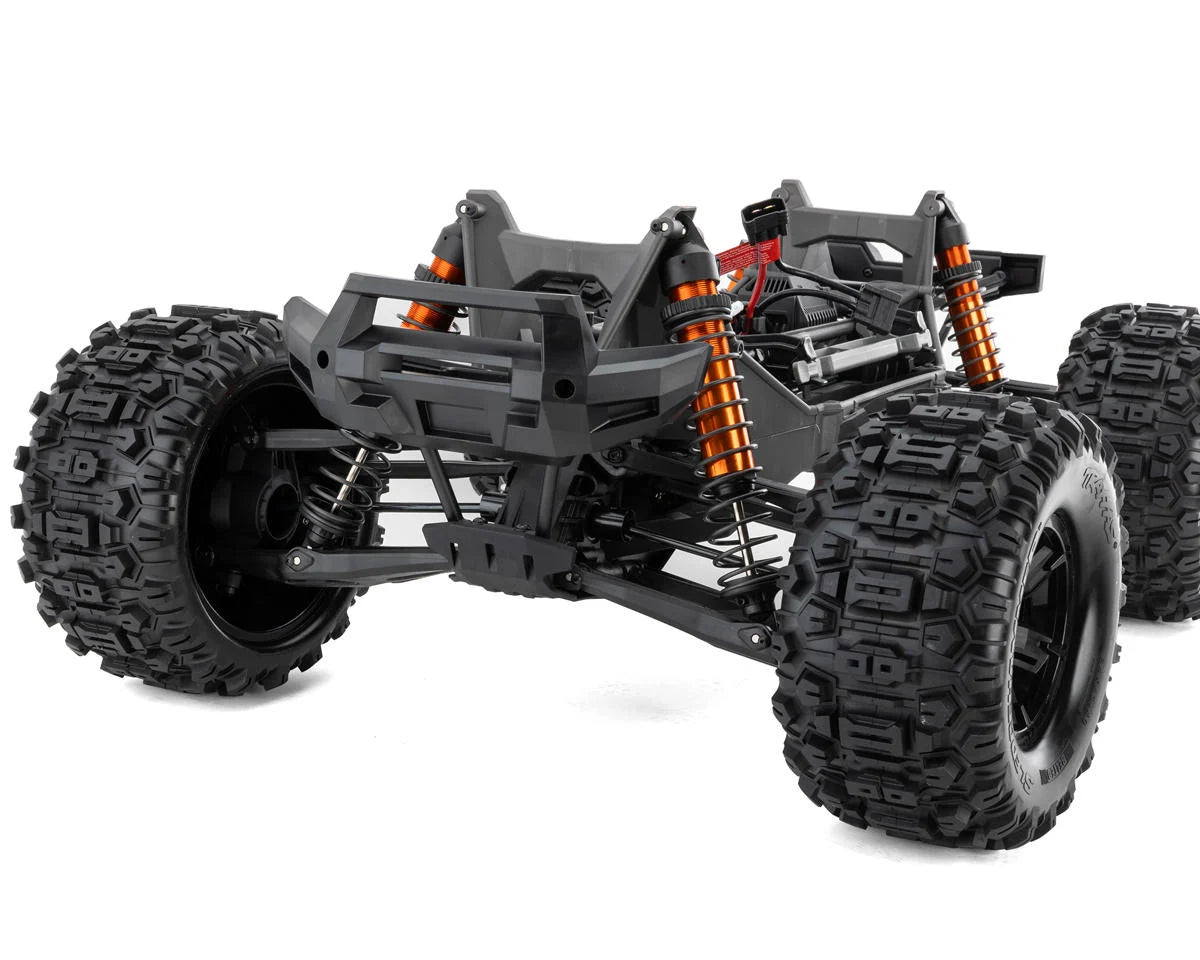

Heavy-Duty Modular Composite Chassis

Interlocking front and rear bulkheads
Motor mounts to rear bulkhead to eliminate gear crunching flex
Easy to service and access components
Driveline is sealed in the chassis to keep out dirt and grit

Clipless Battery Retention System
- No body clips or hook and loop straps
- Battery hold-downs pivot for easy access
- Adjustable for battery size
- More secure than conventional retention systems
- Integrated into chassis top brace for improved battery tray and chassis stiffness
Bumpers
- Front energy absorbing rubber impact bumper
- Lower front and rear skids for impact and abrasion resistance

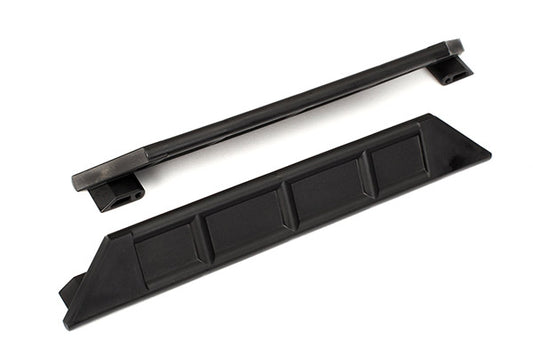

- Integrated nerf bars for side impact resistance

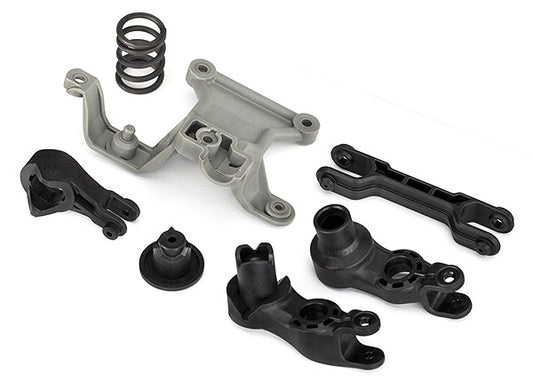

Heavy-Duty Steering Bell Cranks and Servo Saver
- High-output steering servo
- Wired directly into the RX box, no external wires seen on chassis
- New mounting system to fully support case
- Double-shear, bearing supported servo horn
Suspension
- Engineered to optimize suspension travel and steering angles
- All critical suspension points have double shear strength
- High strength steel suspension pins used throughout
- Suspension pins retainers won’t come loose or “back-out”
- 4 mm machined pivot balls
- C-hub and steering block geometry maximizes steering angle
- Adjustable roll center
- Fixed, high-strength camber and toe links
- Steel upper and lower tie bars
- Full contact sealed bearings used in exposed locations
Large-Scale GTX Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- 5.2 mm damper shaft
- Lower seal cartridge includes integrated wiper seal combination
- Adjustable upper spring retainer
- Plastic shock caps with pivot balls
- Fixed shock locations
- Lower spring perches bolted on

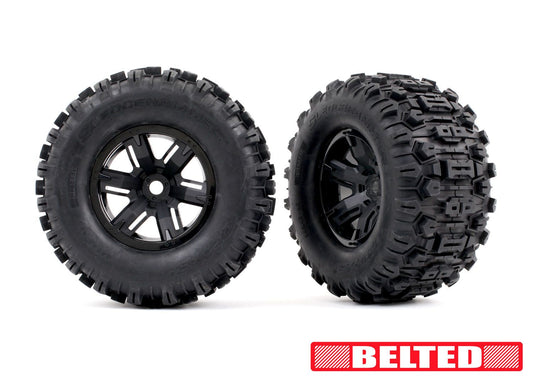

Wheels/Tires

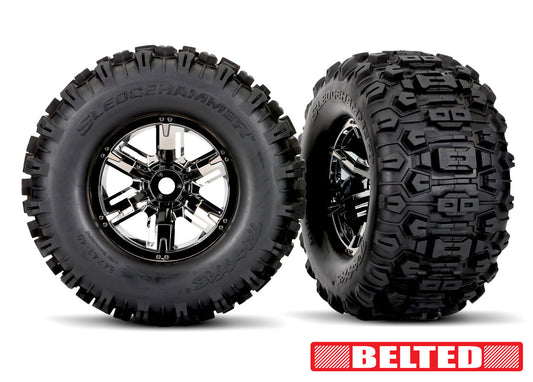

- Massive 8.4″ Sledgehammer^® belted tires
  - Virtually eliminates ballooning at high speeds
  - Open tread block design
  - 2-piece foam insert
  - High-strength glue and bead design
- Large, dual-diameter wheels

Model Specs

Model Name:	X-Maxx 8s Belted
Model Type:	Monster Truck
Model Speed:	50+ mph with two 4s LiPo batteries and optional pinion gear
Model Skill Level:	6
Scale:	X-Truck
Weight:	19.1 pounds (8.66 kg)
Length:	30.67 inches (779 mm)
Width:	21.3 inches (540 mm)
Front Track:	21.3 inches (540 mm)
Rear Track:	21.3 inches (540 mm)
Height:	13.99 inches (355 mm)

Wheelbase:	18.92 inches (480 mm)
Center Ground Clearance:	4.2 inches (107 mm)
Drive System:	Shaft-driven 4WD
Drivetrain:	Shaft-driven 4WD
Transmission:	Single speed
Differential Type:	Sealed, hardened steel bevel, limited slip
Gear Pitch:	1.0 metric pitch
Servo(s):	2085X metal gear ultra-high-torque waterproof
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with wireless module
Battery Compartment Specs:	197 mm X 52 mm X 44 mm

Motor Specs

Motor Name:	Velineon® 1200XL
Motor Type:	1275 kV sensorless brushless
Motor Weight:	23.44 ounces (665 g)
Motor Length:	4.32 inches (110 mm)
Motor Diameter:	1.88 inches (48 mm)
Motor Shaft Size:	5 mm
Motor Connector Type:	6.5 mm bullet connectors

ESC Specs

ESC Name:	Velineon® VXL-8s™
ESC Type:	Brushless
ESC Case Size:	2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
ESC Weight:	7.60 ounces (215.5 g)
Motor Connectors:	6.5 mm bullet connectors
Battery Connectors:	Traxxas High-Current Connectors
ESC Power Wire:	10 gauge Maxx® Cable

Exceptionally Powerful & Durable Big RC Monster Truck!

Get ready to unleash the ultimate monster with the Traxxas X-Maxx 1/6 8S Monster Truck equipped with belted tires. This formidable RC beast defies physics with its jaw-dropping acceleration and blistering speeds of over 50mph, making it a force to be reckoned with on any terrain. Built to conquer the most extreme challenges, the X-Maxx boasts unparalleled durability, innovative design features, and cutting-edge technology, setting a new standard for high-performance RC monster trucks. Whether you're tearing up the track or dominating the backwoods trails, the X-Maxx delivers adrenaline-pumping excitement and unbeatable performance like never before.

About the X-Maxx 8S

Body, Wheelie bar, Wheels & Tires

The Traxxas X-Maxx 1/6 8S Monster Truck with belted tires is an absolute beast of an RC vehicle, designed to conquer the most extreme terrain with its mammoth size and unrelenting power. Featuring a clipless body mounting system, the X-Maxx allows for easy removal and installation of the reinforced body, which is further enhanced with a protective cage to minimize flex and external skids for strategic protection during intense bashing sessions. The integrated nerf bars provide additional side impact resistance, ensuring durability and longevity even in the most demanding conditions. Paired with the specifically formulated 8s rubber compound and large, dual-diameter wheels, the belted Sledgehammer tires offer exceptional grip and durability for high-speed runs and aggressive off-road maneuvers.

Chassis, Suspension & Drivetrain

Built on a robust chassis with a full-metal driveline, the X-Maxx boasts exceptional strength and durability to withstand the rigors of extreme bashing. The suspension system is engineered to optimize suspension travel and steering angles, with all critical suspension points featuring double shear strength for added reliability. The GTX shocks with machined aluminum threaded bodies and extra-large bore capacity ensure smooth and consistent damping over rough terrain, while the fully sealed bearings used in exposed locations provide long-lasting performance with minimal maintenance requirements. The drivetrain features all-metal gears and CVDs, along with Traxxas' Torque-Biasing Center Drive unit for maximum wheels-up punch and unrelenting acceleration.

Electronics

Equipped with the Velineon VXL-8s Brushless Power System, the X-Maxx delivers jaw-dropping acceleration and speeds of over 50mph, thanks to its powerful Velineon 1200XL Brushless Motor and VXL-8s Waterproof Electronic Speed Control. The built-in cooling fan and machined heat sinks ensure efficient heat dissipation during high-speed runs, while the real-time telemetry via Traxxas Link provides valuable performance data to optimize the driving experience. The Traxxas Stability Management (TSM) helps prevent spinouts and loss of control by adjusting from off to 100% assistance from the transmitter, offering unparalleled stability and control for drivers of all skill levels. Additionally, the TQi 2.4 GHz High Output Radio System with Traxxas Link-enabled allows for easy customization and adjustment of steering and throttle parameters, ensuring a personalized driving experience tailored to individual preferences.
