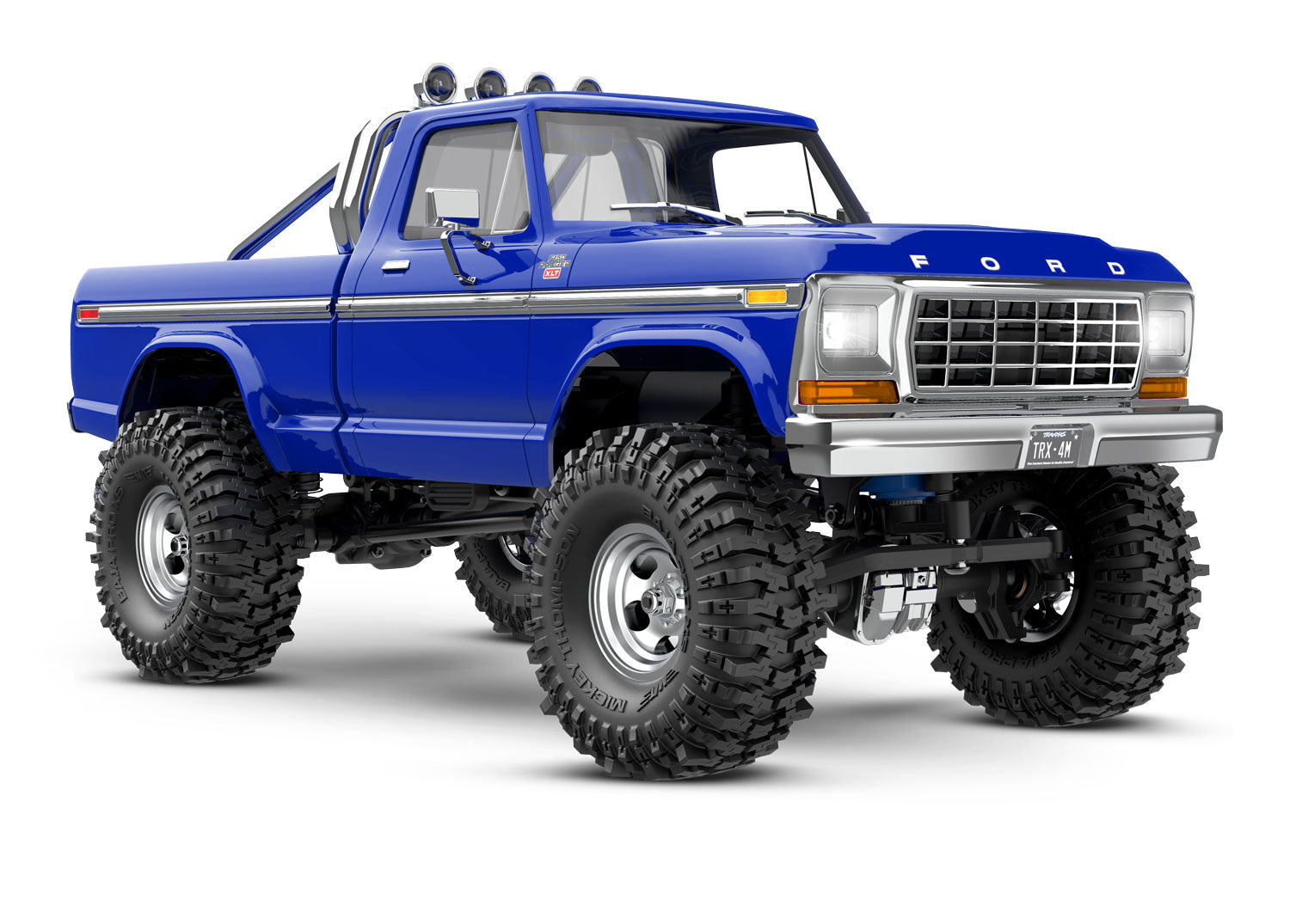

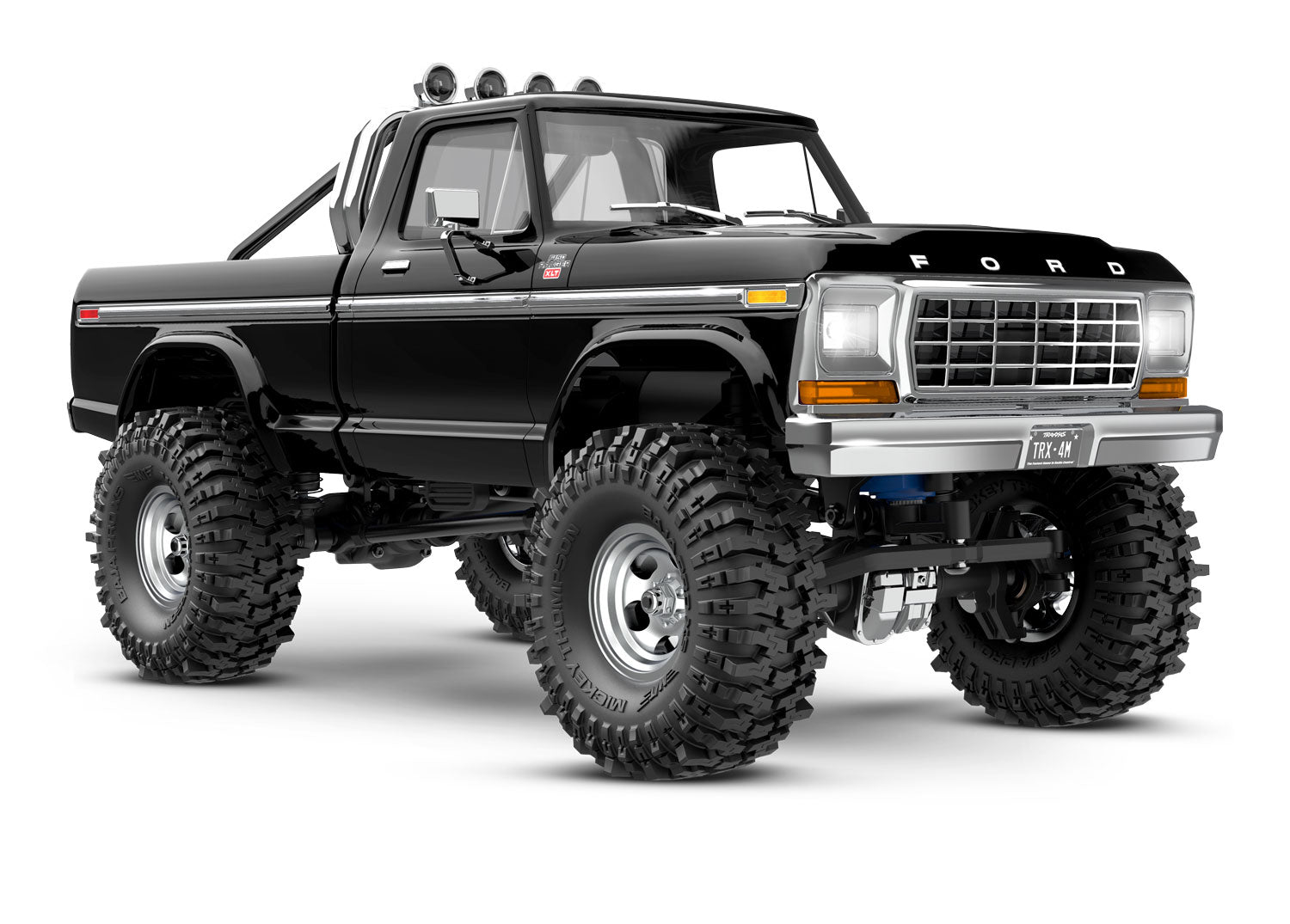

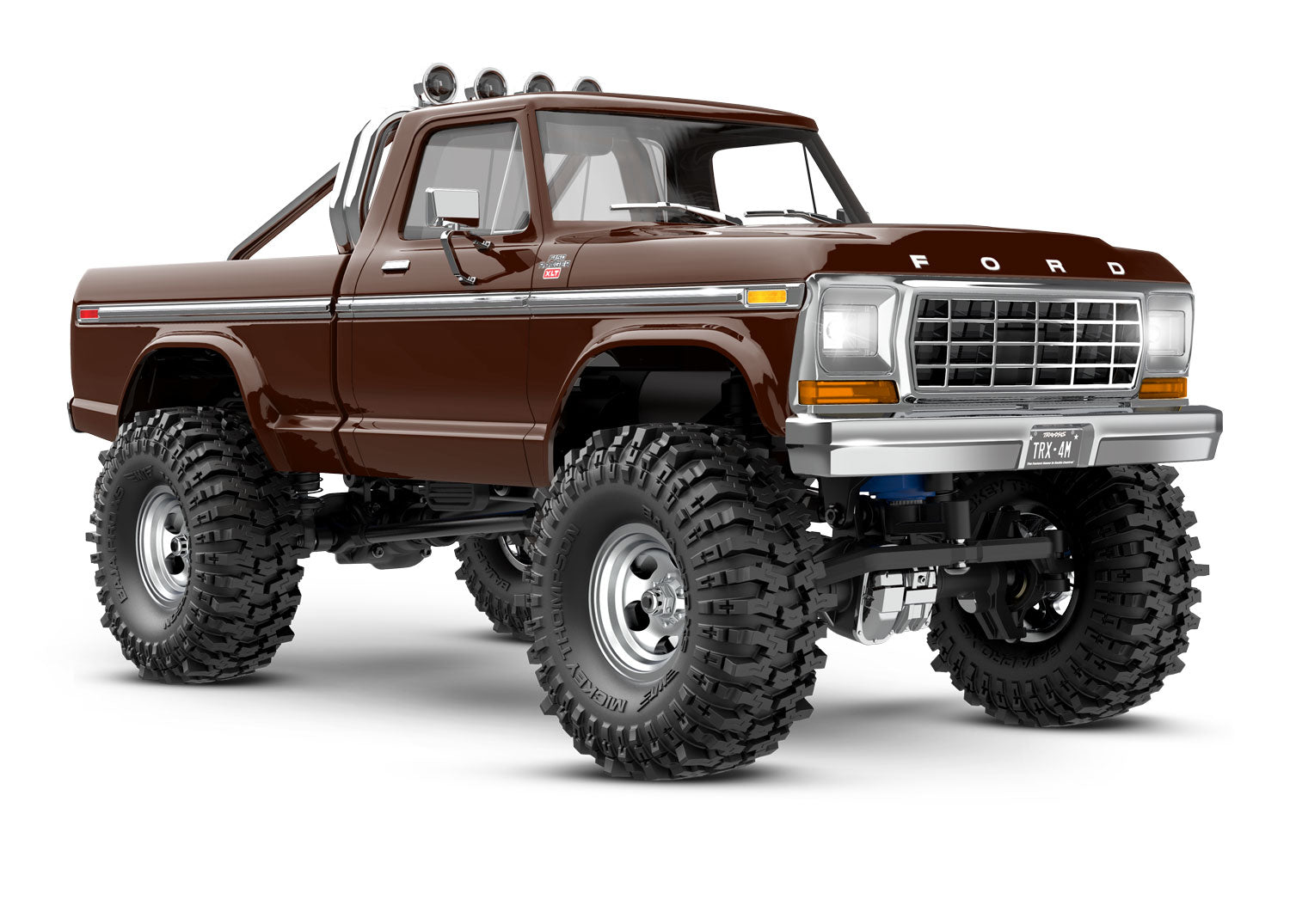

TRX-4M Ford F-150 High Trail Edition
TRX-4M Ford F-150 High Trail Edition
You might also need...
SKU:97044-1
TRX-4M Ford F-150 High Trail Edition
-
Officially Licensed Ford® F-150® Clipless Body
- Highly-detailed ABS hard body
- Molded-in color won’t chip or flake
- Tough fender flares and rock sliders
- Realistic side mirrors, door handles, roll bar, & wipers
- LED headlights
- Heavy-duty latching clips
- Hold tightly on the trail
- Release in just seconds
- Highly-detailed ABS hard body
-
ECM-2.5™ Electronic Control Module
- Incorporates ESC, receiver, and LED controller in one chassis
- Fully waterproof for all-weather fun
- Three drive profiles
- Sport Mode — forward / brake / reverse
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Built-in Pro Scale® LED functionality
- Two stage low voltage protection (LVD)
- Motor overload protection
-
TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
-
Titan® 180 87-Turn Brushed Motor
- Fixed gear mesh doesn’t require adjustment
- Forward mounting position for improved crawling dynamics
-
Extended Heavy-Duty Steel Ladder Frame
- Deep C-channel design
- Thicker center section for maximum rigidity
- Rails run from bumper to bumper
-
Drivetrain
- Full-time shaft-driven 4-wheel drive
- Solid steel axles
- Spool-equipped front and rear axles
- Heavy-duty CV center driveshafts
-
Low-CG Battery Tray
- Concentrates weight lower for improved stability
- Wide rubber strap secures battery in place
-
Optional Transmission Ratios (sold separately)
- Optional Low Range or Speed Gearing transmissions
- Modular design swaps out in minutes
-
Steering
- Heavy-duty 2065T steering servo
- Metal main gear
- Superior 45° steering angle
- Direct steering (no servo saver)
- Heavy-duty 2065T steering servo
-
Lifted High Trail™ Suspension
- Revised shock towers
- Triangulated 4 link front and rear
- Heavy-duty rod ends
-
Oil-Filled GTM™ Shocks
- Provides smooth controlled damping
- Realistic driving body movements
- Adjustable pre-load spacers
- Easily refreshed with available rebuild kits
-
Wheels and Tires
- 1″ Replica slotted chrome mag wheels
- 7 mm hex
- Pre-mounted Mickey Thompson® Baja Pro™ XS tires
- Trail-tuned rubber compound
- 1″ Replica slotted chrome mag wheels
-
Battery and Charger Included
- High-capacity 2-cell LiPo battery with iD®
- 7.4 volts
- 750 mAh for over an hour of run time
- 2-amp USB-powered charger
- iD® technology for faster, safer charging
- High-capacity 2-cell LiPo battery with iD®
- Low-Maintenance Self-Lubricating Bushings
- Durable Hex hardware
Model Specs
Model Name: | Ford F-150 High Trail Edition |
---|---|
Model Type: | Trail / Crawler |
Model Skill Level: | 1 |
Scale: | 1/18 |
Weight: | 1.03 lbs (468 g) |
Length: | 10.6 inches (269 mm) |
Width: | 5.0 inches (127 mm) |
Front Track: | 5.0 inches (127 mm) |
Rear Track: | 5.0 inches (127 mm) |
Height: | 5.0 inches (127 mm) |
Wheelbase: | 6.38 inches (162 mm) |
Center Ground Clearance: | 1.57 inches (40 mm) |
---|---|
Battery Type: | Lithium polymer (LiPo) |
Drivetrain: | Shaft-driven 4WD |
Transmission: | Single speed direct drive |
Differential Type: | Locked spool |
Gear Ratio (Internal): | 11.38 |
Gear Pitch: | 64 pitch |
Servo(s): | 2065T |
Radio System: | TQ 2.4 GHz 2-channel transmitter |
Battery Compartment Specs: | 51 mm X 31 mm |
Motor Specs
Motor Name: | Titan 180 |
---|---|
Motor Type: | 87-turn brushed motor |
Motor Weight: | 1.16 ounces (33 g) |
Motor Length: | 1.66 inches (42 mm) |
Motor Diameter: | .81 inches (21 mm) |
ESC Specs
ESC Name: | ECM 2.5™ |
---|---|
ESC Type: | Brushed |
ESC Case Size: | 1.79 inches ( 45 mm) x 1.26 inches (32 mm) x 0.6 inches (15 mm) |
ESC Weight: | .92 ounces ( 26 g) |
Includes:
- (1) TRX-4M 1/18 RTR Micro Rock Crawler (High Trail) w/Ford F-150 Body
- (1) 2S (7.4V-750mAh) LiPo Battery
- (1) 2A USB Fast Charger
Needed To Complete:
- (4) AA Batteries for Transmitter
Specifications:
Scale | 1/18 |
---|---|
Length | 10.6 inches (269mm) |
Width | 5 inches (127mm) |
Height | 5 inches (127mm) |
Wheelbase | 6.38 inches (162mm) |
Ground Clearance | 1.57 inches (40mm) |
Weight | - |
Approach Angle | 62 Degrees |
Departure Angle | 52 Degrees |
Hex Size | 7mm |
Power Source | Electric |
Input Voltage | 2S 7.4V LiPo |
Completion Level | Ready-To-Run |
Lifted '79 Ford Ranger Mini Scale R/C Crawler
Prepare for big adventures in a compact package with the Traxxas TRX-4M 1/18 Micro Rock Crawler (High Trail) featuring the iconic Ford F-150 body. This miniature crawler packs a punch, offering enthusiasts the thrill of off-road exploration in a small-scale, yet high-performance package. With its officially licensed body, detailed wheels, and rugged tires, this micro crawler is ready to conquer any terrain with style and precision. Get ready to experience the excitement of rock crawling like never before with the TRX-4M High Trail edition, where big fun comes in small packages.
About The TRX-4M High Trail Ford F-150 Ranger XLT
Officially Licensed Scale Body, Wheels & Tires
Experience the ultimate small-scale adventure with the Traxxas TRX-4M 1/18 Micro Rock Crawler (High Trail) featuring the iconic Ford F-150 body. This micro crawler truck offers enthusiasts a high-performance off-road experience like no other. With its officially licensed body, wheels, and tires, meticulously detailed to replicate the classic Ford F-150, this miniature crawler boasts exceptional scale realism. The replica 1.0" authentic chrome mag wheels paired with the 2.4" Mickey Thompson Baha Pro XS tires not only enhance the truck's appearance but also provide superior traction on various terrains, ensuring an authentic and thrilling rock crawling experience.
Chassis, Suspension & Drivetrain
Built to conquer challenging terrain, the TRX-4M High Trail edition boasts a rugged chassis, advanced suspension, and powerful drivetrain components. The extended rigid steel ladder frame eliminates flex while adding stability, thanks to the longer wheelbase. The four-link suspension system, coupled with heavy-duty telescoping driveshafts featuring a smooth-running CV design ensures exceptional articulation and traction. With a tight turning radius and an exceptional 45-degree steering angle, this micro crawler outmaneuvers much larger trucks, making it perfect for navigating tight trails and rocky obstacles with ease.
Electronics
Equipped with innovative electronics, the TRX-4M High Trail edition delivers reliable performance in all weather conditions. The all-in-one ECM-2.5 ESC and receiver, along with the Pro Scale lighting control module, are housed in a sleek, waterproof package, ensuring durability and functionality on every adventure. Powering this micro crawler is a potent 87T Titan motor, offering exceptional low-speed torque for precise control during challenging climbs. Additionally, the low-CG battery tray concentrates weight lower for improved stability, while the included 2S 7.4V LiPo battery provides over an hour of run time, ensuring extended off-road fun without interruption. Whether you're tackling steep climbs or technical terrains, the TRX-4M High Trail edition delivers unmatched performance and excitement in a compact package.
Features:
- Officially licensed by Ford to Traxxas
- Extremely scale detailed replica molded hard body
- Officially licensed Mickey Thompson Baja Pro XS tires and 8-hole chrome wheels
- Designed to balance exquisite style, scale detail and superior driving performance
- Extended wheelbase to boost stability and performance
- Long arm lift kit provides 35% higher ground clearance
- Performance oriented axle mounted servo with superior 45 degrees steering angle
- Innovative all in one waterproof ECM-2.5 ESC receiver and lighting control
- Heavy-duty 180 size motor and steering servo
- Super smooth oil-filled and rebuildable GTM shocks
Share
Accessories for this product...
-

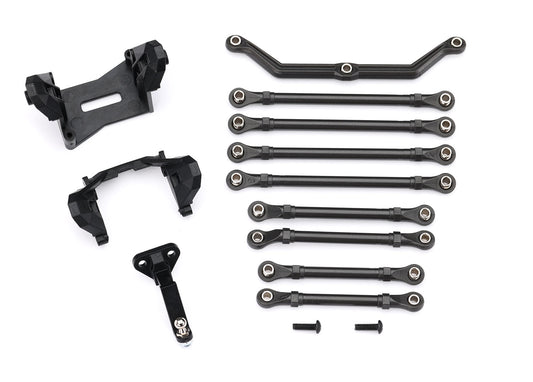

SUSP LINK SET HIGH LIFT COMPLETE ASSM TRX-4M
Regular price $19.95 USDRegular priceUnit price / per -

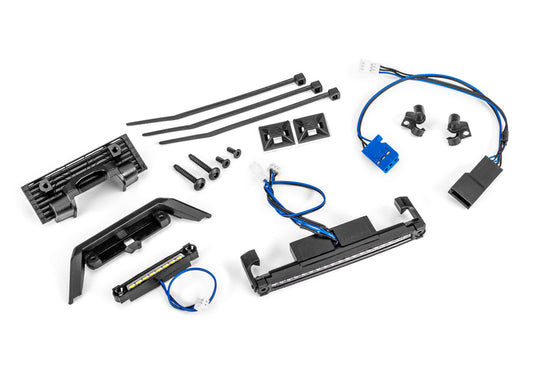

LED LIGHT BAR KIT TRX-4M
Regular price $29.95 USDRegular priceUnit price / per -

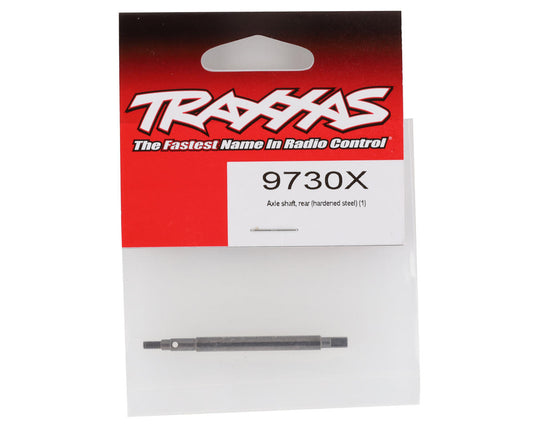

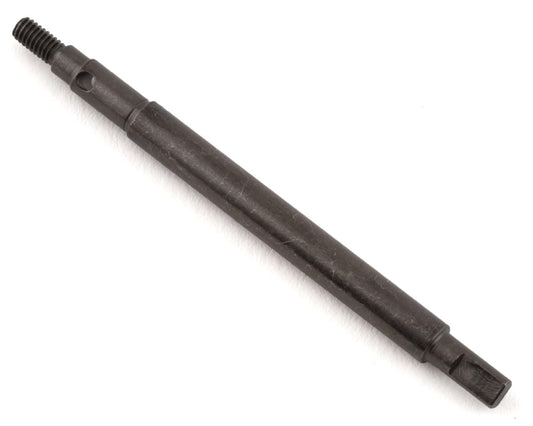

TRX-4M Rear Heavy Duty Steel Axle Shaft (1)
Regular price $6.00 USDRegular priceUnit price / per -
Sold out
UTILITY TRAILER/HITCH/SPACERS
Regular price $29.95 USDRegular priceUnit price / perSold out -
LED LIGHT SET FOR 9795 TRAILER
Regular price $24.95 USDRegular priceUnit price / per -

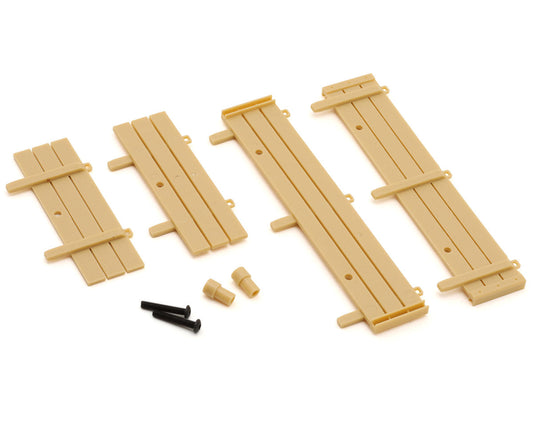

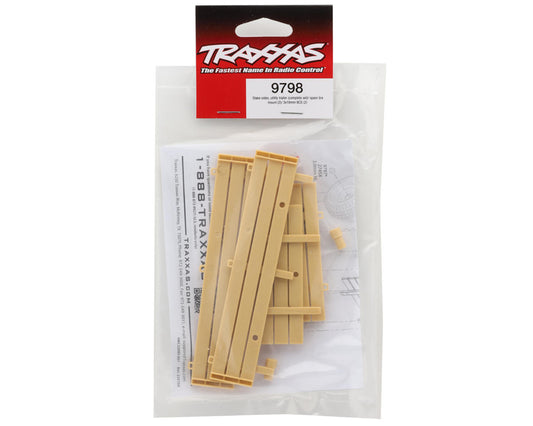

TRX-4M Utility Trailer Stake Side Panels
Regular price $8.00 USDRegular priceUnit price / per
Upgrades for this product...
-

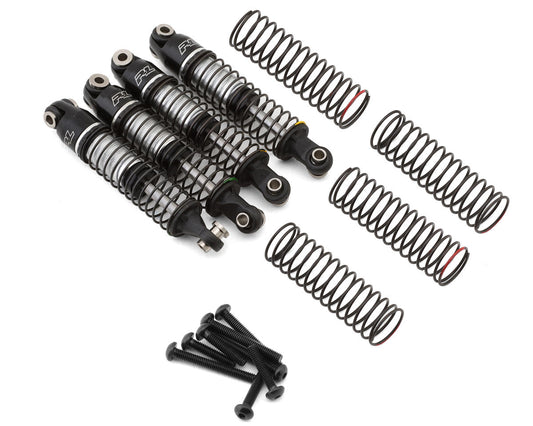

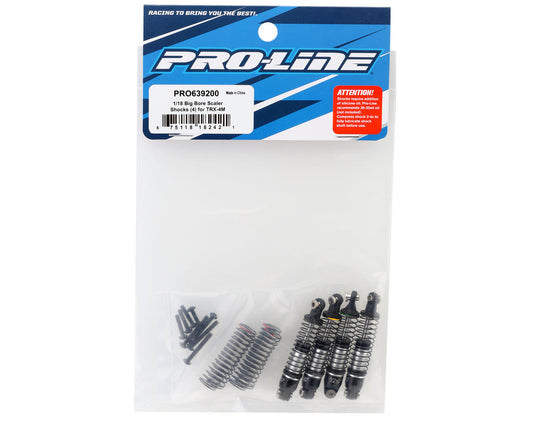

Pro-Line TRX-4M Big Bore Scaler Shocks (4)
Regular price $49.99 USDRegular priceUnit price / per -
Aluminum Heat Sink (TRX-4M)
Regular price $10.00 USDRegular priceUnit price / per -

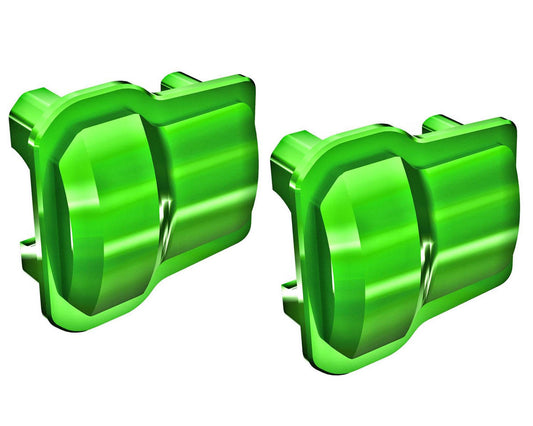

Aluminum Axle Cover (2) (TRX-4M)
Regular price From $29.95 USDRegular priceUnit price / per -

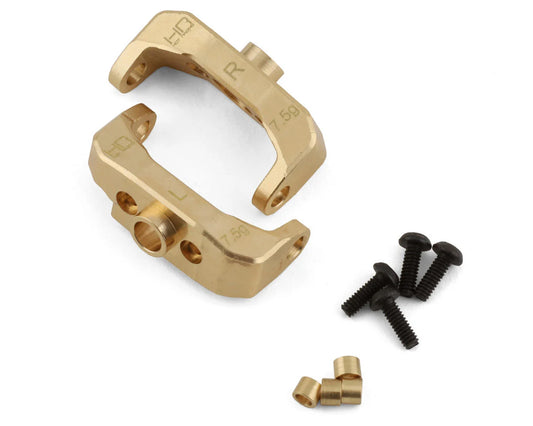

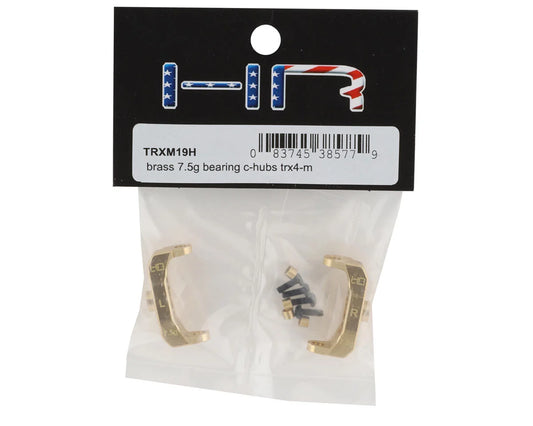

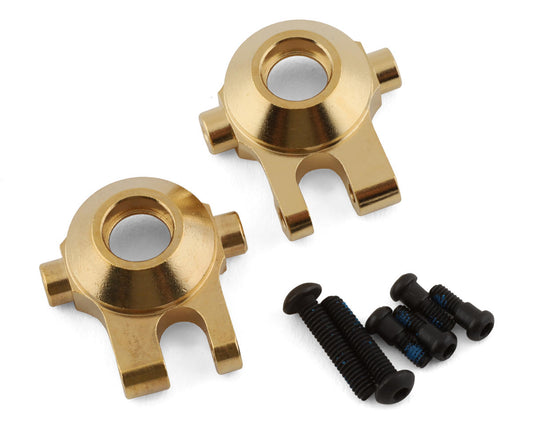

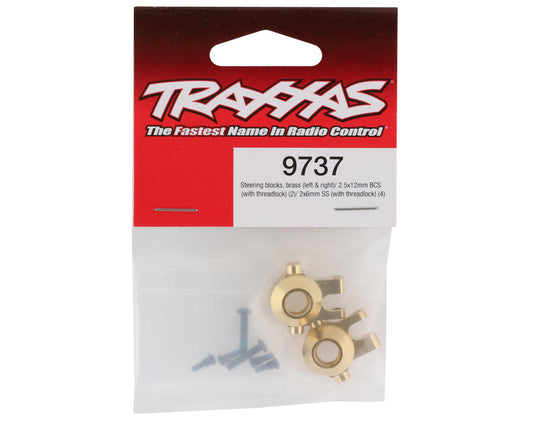

TRX-4M Brass Steering Blocks (2) (7g)
Regular price From $29.99 USDRegular priceUnit price / per -

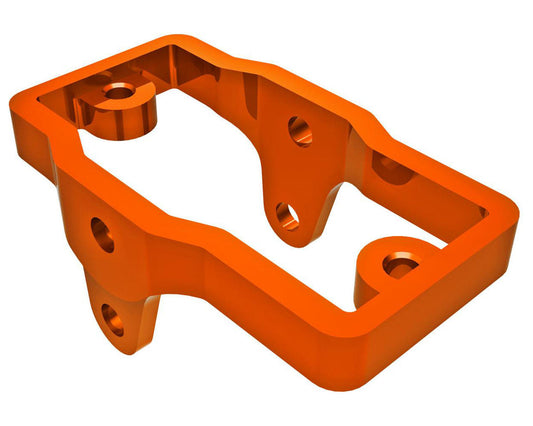

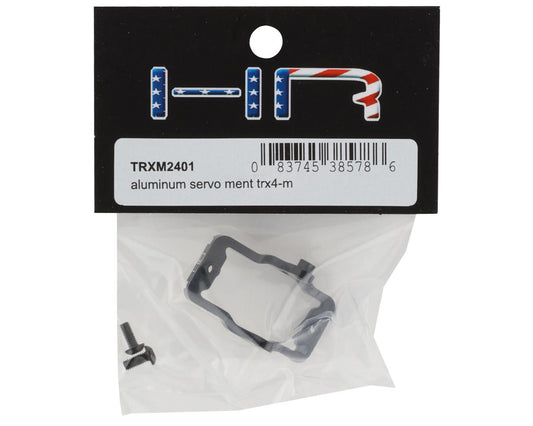

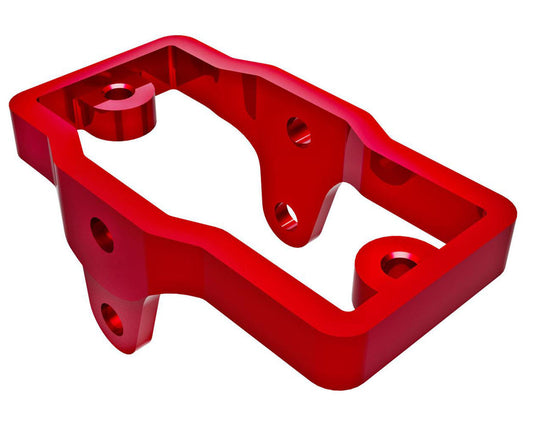

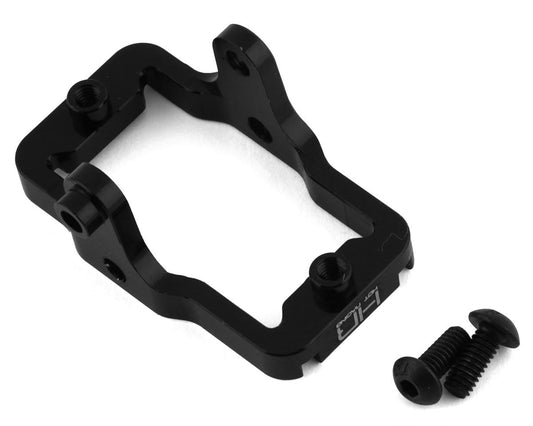

TRX-4M Servo Mount Aluminum and basic
