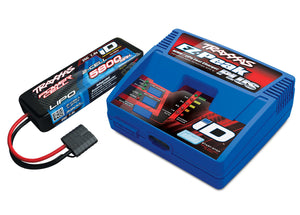

$109.95 2S LIPO COMPLETER 2843X/2970 (addon details...)

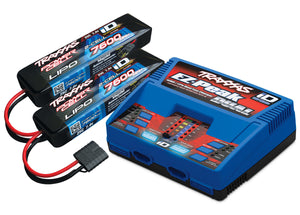

$249.95 2S LIPO COMPLETR 2869X(2)/2972 (addon details...)

Product variants

SKU:82016-4-R6

Quantity

TRX-4 1/10 Scale Trail Rock Crawler Assembly Kit w/TQi 2.4GHz Radio

The amazing Traxxas TRX-4 Scale and Trail Crawler chassis kit offers the same innovative features as the RTR vehicle, combined with the fun and excitement of building your own kit. Build your own portal axles, high/low range transmission, and remotely locking differentials. All the parts are organized neatly in labeled bags with waterproof electronics and pre-assembled shocks and suspension links. A fully illustrated color manual makes the kit as much fun to construct as it is to take off-road.

Easy to Follow Assembly Instructions
The TRX-4 Chassis Kit isn’t just for experts. Traxxas goes the extra mile to make the full-color instruction book easy to follow and fun to use. Each section corresponds to a labeled bag with step-by-step assembly instructions. True-to-scale part illustrations and ruler charts make it easy to differentiate between different screws, bearings, and gears. Helpful assembly tips and clear illustrations take the frustration out of the assembly process. Have fun on the workbench and on the trail with the new TRX-4 Chassis Kit.

Features:

Easy to follow full-color assembly manual
Trail-tuned XL-5 HV Waterproof Electronic Speed Control
Powerful Titan™ 21T reverse rotation motor
Portal Axles
Rigid Steel Frame
Full-time shaft driven 4-wheel drive
Tough 6mm stub axles
Steel front CV driveshafts
Hardened steel rear axle shafts
Remote locking steel gear differentials with cable-actuation
Steel gear transfer case
Innovative Battery Compartments
Secondary battery mount over front axle for forward weight bias
Two speed high/low range transmission with remote shifting
Superior 45° steering angle
Front — 3 link with panhard
Rear — Triangulated 4 link
Pre-assembled heavy-duty rod ends with steel hollow balls
5mm diameter steel link rods with 4mm threaded ends
Coilover GTS shocks exclusive to TRX-4 chassis
Silver-anodized aluminum bodies
Threaded bodies with collars easily adjust ride height
Silky smooth damping for the toughest trails
O-ring cap seal and dual X-ring shaft seals
Shock oil included in kit
1.9” Canyon Trail tires with trail-tuned foam inserts
Tough black scale wheels
Trail tuned S1 rubber compound
12mm steel hex
Tire glue required
TQi™ 2.4GHz 4-channel transmitter
Patented O-Ring sealed watertight receiver box keeps the micro receiver dry
Sealed Ball Bearings
Hex hardware with rust-resistant black oxide coating

Specifications:
Length: 20.57 inches (523mm)
Front Track: 9.78 inches (249mm)
Rear Track: 9.78 inches (249mm)
Ground Clearance: 3.14 inches (80mm)
Weight: 6.42lb (2.91kg)
Height: 10.47 inches (266mm)
Wheelbase: 12.28 inches (312mm)
Front Shock Length: 3.54 inches (90mm)
Rear Shock Length: 3.54 inches (90mm)
Approach Angle: 63.82°
Departure Angle: 43.22°
Breakover Angle: 58.93°
Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)
Front Tires: 4.64 x 1.89 inches (118 x 48mm)
Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
Wheel Hex: 12mm
Speed Control: XL-5™ HV
Motor (electric): Titan® 21T Reverse Rotation
Transmission: 2-speed Hi-Lo, Remote Shifting
Gear Pitch: 32
Brake Type: Electronic “Hill Hold”
Skill Level: 2
Battery Tray: 158.75 L x 47 W x 23/26mm H

Includes:

Unassembled TRX-4 Chassis Kit
TQi™ 2.4GHz 4-channel radio system
Steering Servo
3 Sub Micro Servos (2-speed & diff locks)
XL-5 HV waterproof ESC
Titan® 21T 550 motor
Full-color step-by-step assembly manual

Needed to Complete:

TRX-4 compatible body (313mm wheelbase)
(4) AA batteries for transmitter
6 or 7 cell NiMH or 2s or 3s LiPo battery pack with Traxxas High-Current Connector
Battery charger
Metric hex drivers (1.5mm, 2.0mm, 2.5mm)
Basic hand tools (screwdrivers, needle nose pliers)
CA glue
Safety glasses
