Traxxas

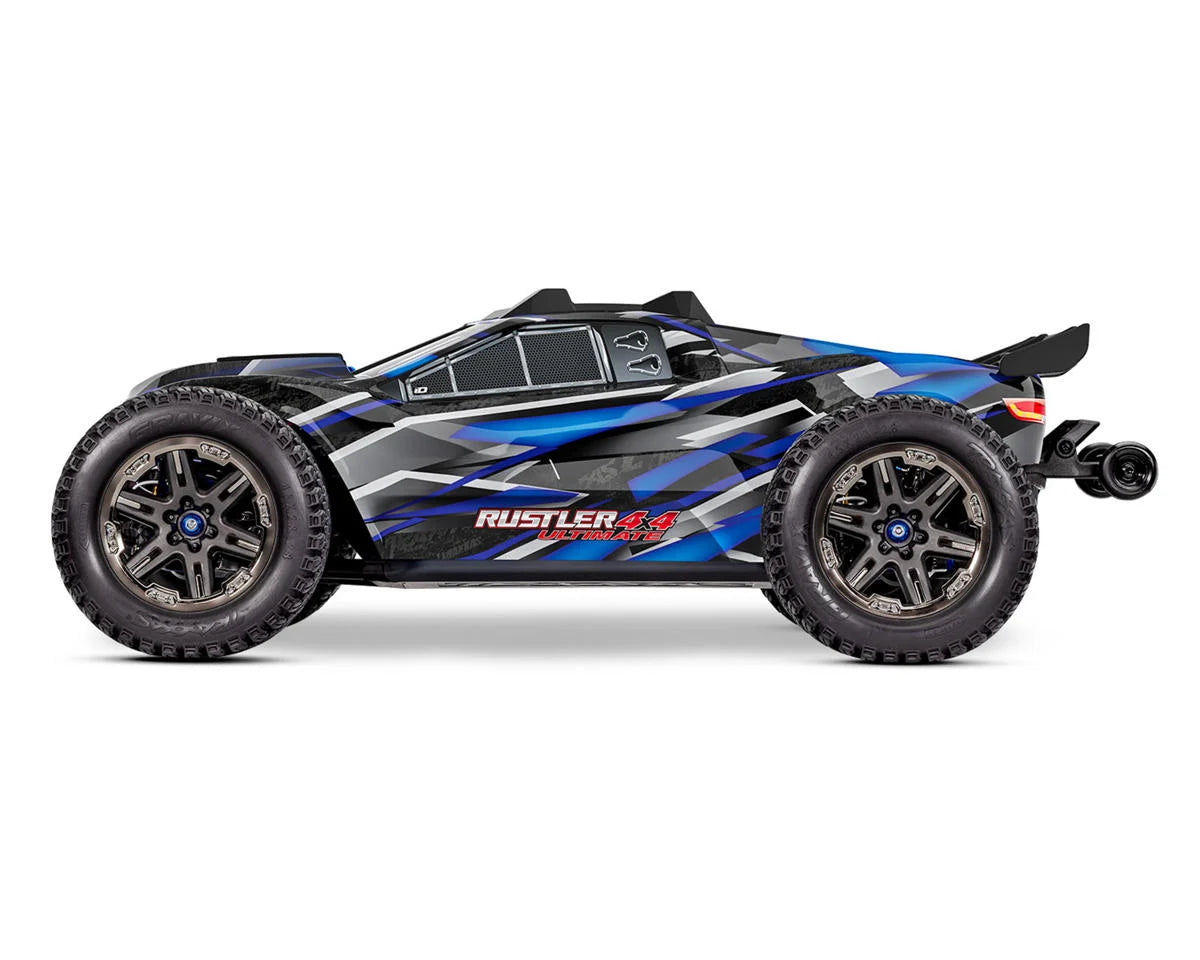

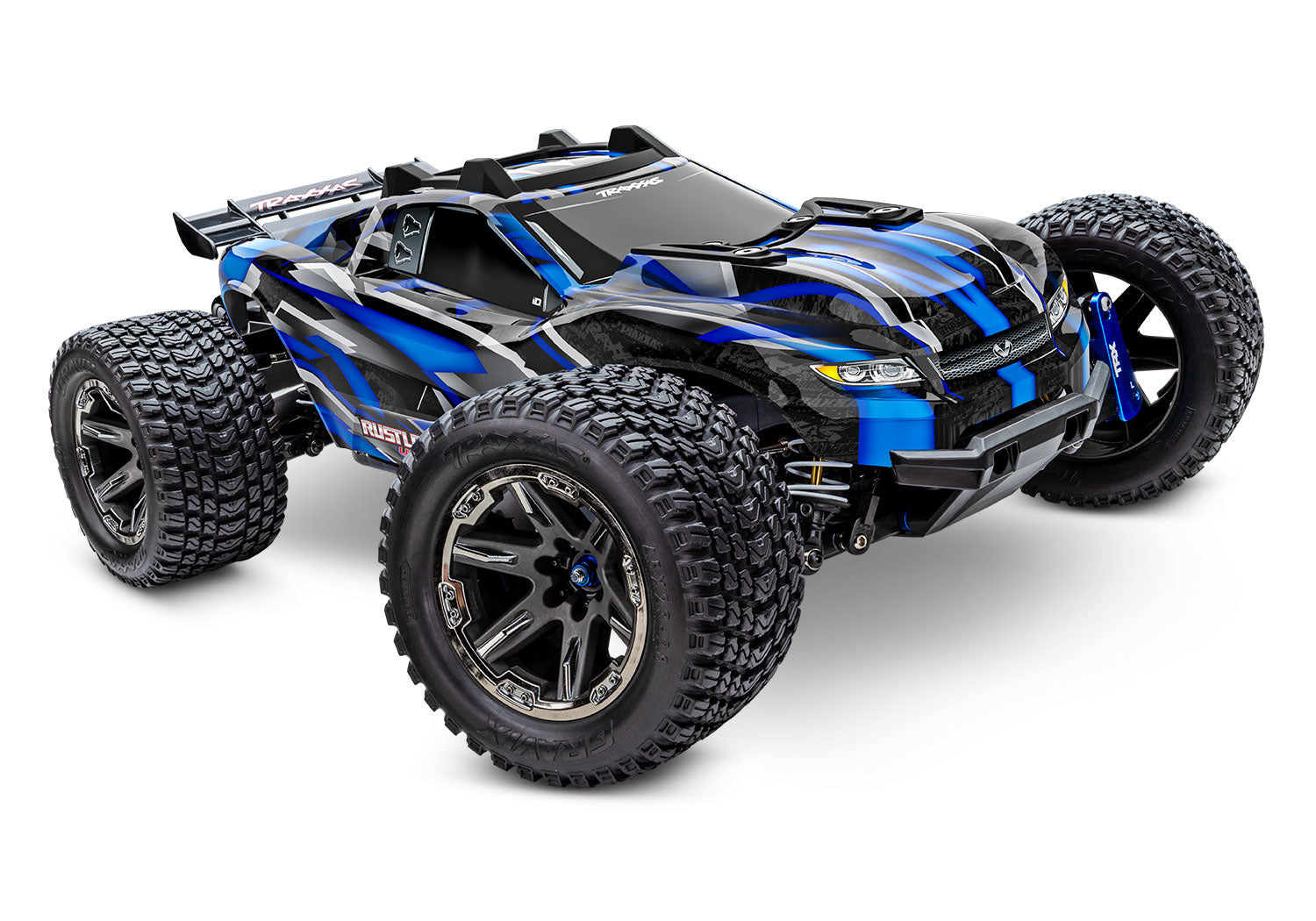

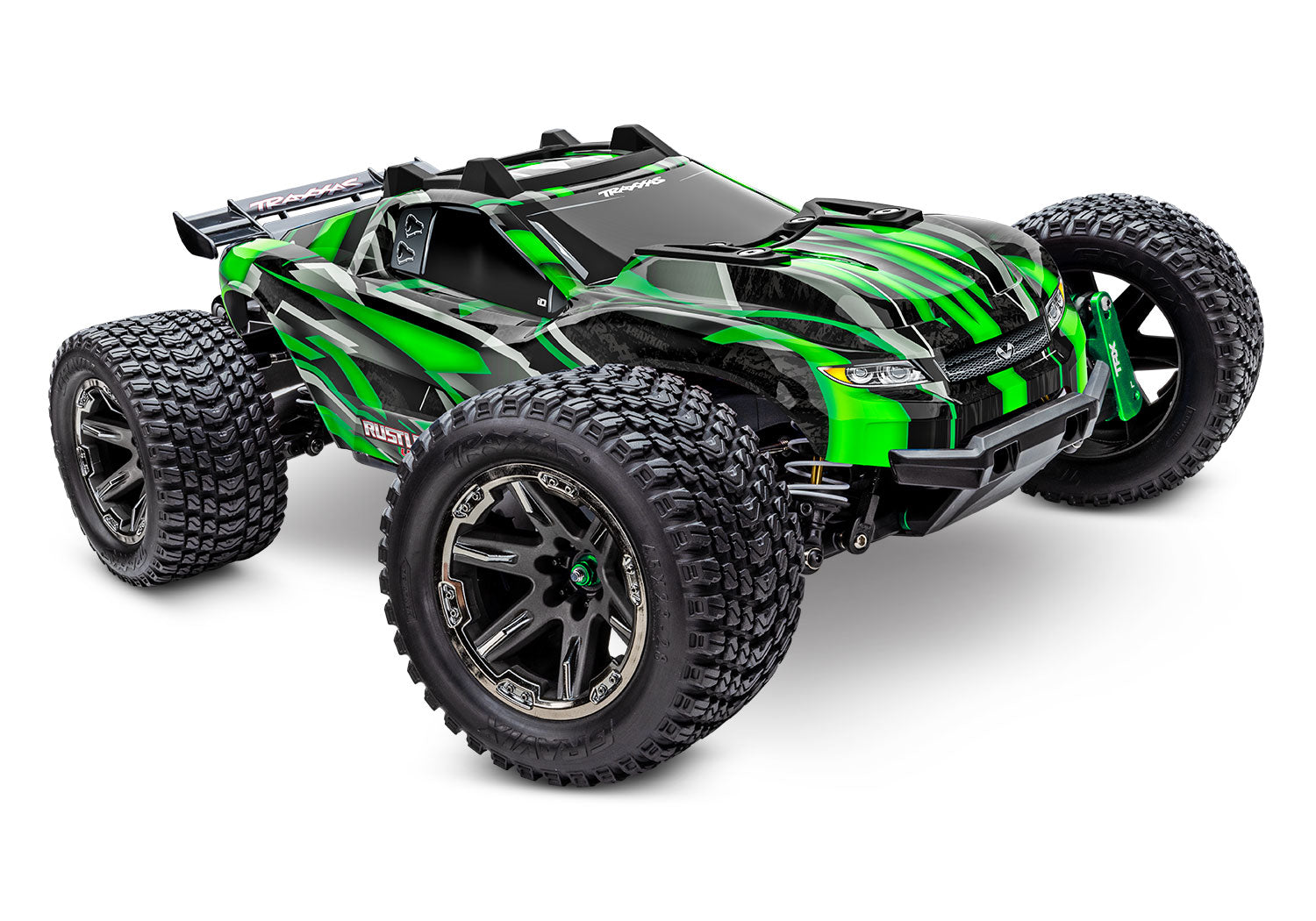

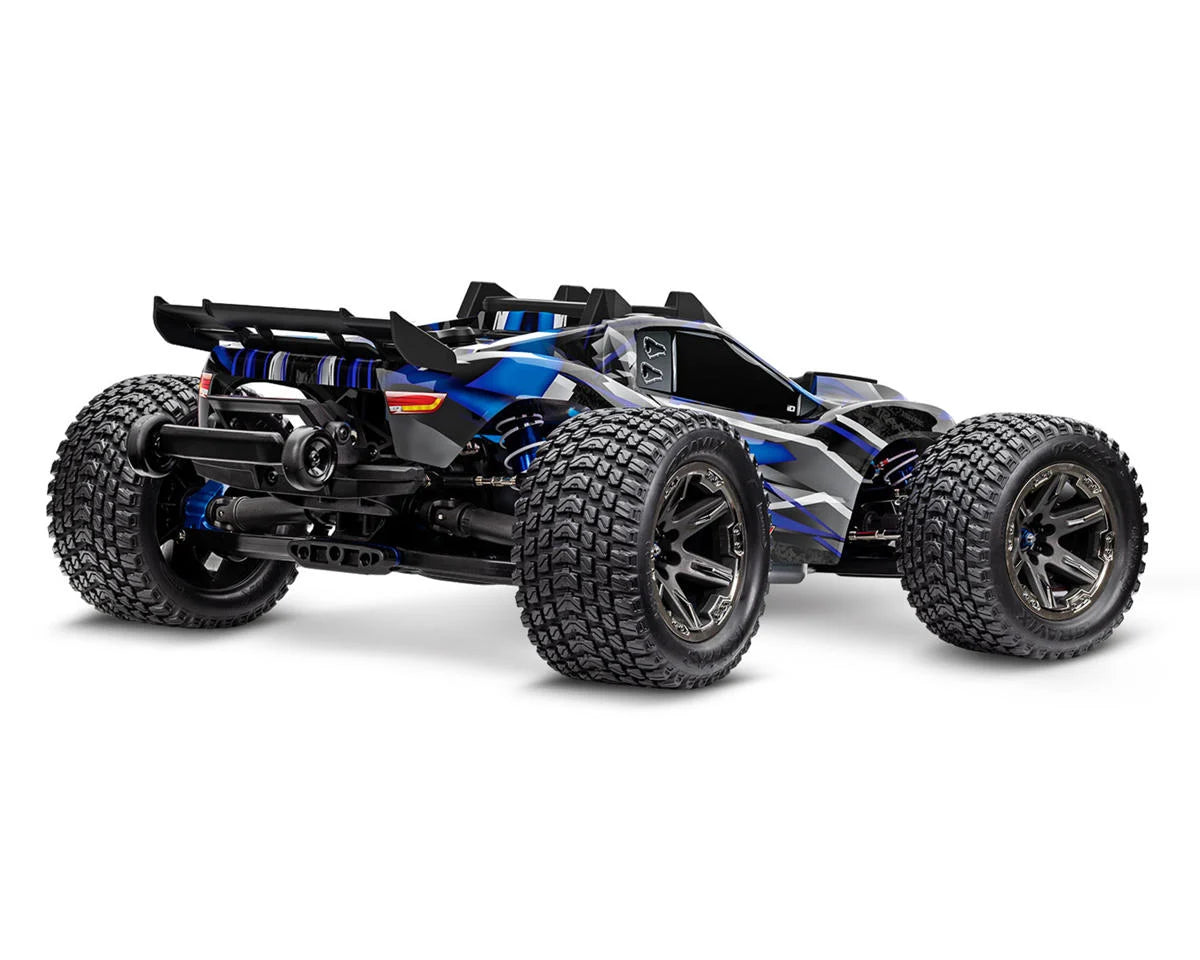

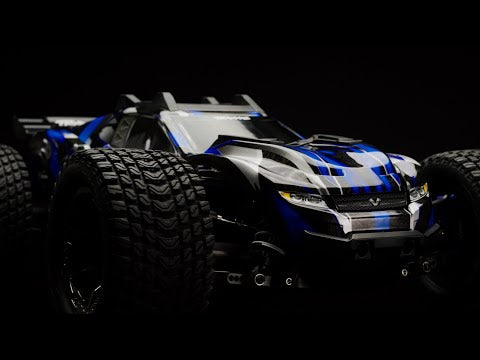

Rustler 4x4 Ultimate 1/10 RTR Brushless Stadium Truck

Rustler 4x4 Ultimate 1/10 RTR Brushless Stadium Truck

Regular price $529.95 USD
Regular price Sale price $529.95 USD
Sale Sold out
Shipping calculated at checkout.

You might also need...

$119.95 3S LIPO COMPLETER 2872X/2970 (addon details...)
$69.95 3S LIPO 5000MAH 11.1V 25C (addon details...)
$62.99 2S LIPO 5800MAH 7.4V 25C (addon details...)
Color

SKU:67097-4

RUSTLER 4X4 VXL ULTIMATE

Includes:

  • (1) Rustler Ultimate 1/10 4x4 Brushless RTR Stadium Truck
  • (1) User Manual

Needed to Complete:

  • (1) 6-7 Cells NiMH or (2-3S) LiPo Battery w/iD Connector
  • (1) Compatible Battery Charger
  • (4) (AA) Batteries for Transmitter



  • High-Performance Aluminum Upgrades
    • 6061-T6 aluminum C-hubs
    • 6061-T6 aluminum steering blocks
    • 6061-T6 aluminum rear hub carriers
    • Aluminum chassis stiffener
    • Aluminum axle nuts

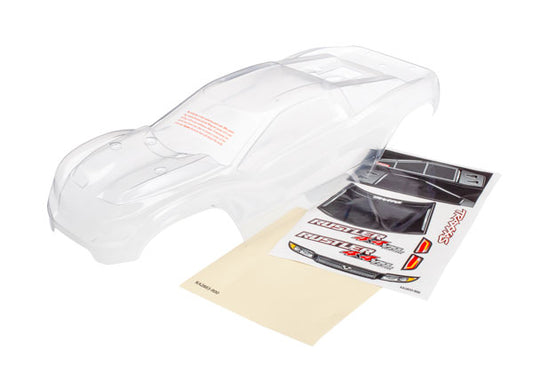

  • Clipless ProGraphix® Body
    • Easy one-handed removal
    • Reinforced inner cage
    • Strong oversized latch
    • Rugged roof rollover protector

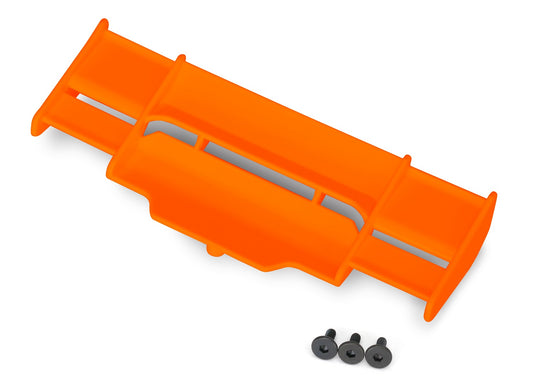

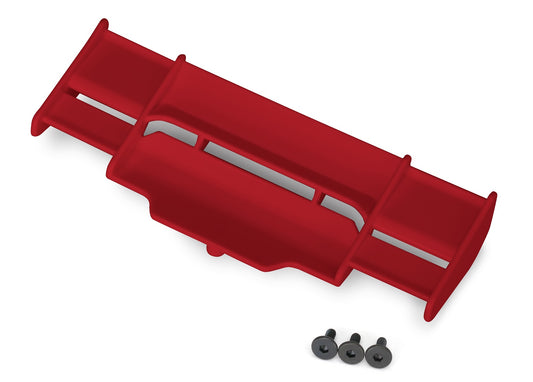

    • Molded composite plastic wing
  • VXL-3s™ Waterproof Electronic Speed Control
    • Three programmable drive profiles:
      • Sport Mode - Forward / Brake / Reverse
      • Race Mode - Forward / Brake
      • Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
    • Traxxas EZ-Set® one-button setup
    • Large heat sink
    • Built-in two-stage low-voltage detection for LiPo batteries
    • NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
    • LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
  • Velineon® Brushless Motor
    • Ultra high-temperature sintered Neodymium magnets
    • Optimized for power and efficiency in 1/10th scale vehicles
    • Low-maintenance, unique Traxxas design
    • Efficient, high-speed ball bearings
    • Precision-balanced rotor
    • 3500 kV
    • Brilliant blue-anodized finish
  • Traxxas Stability Management® (TSM)
    • Improves straight line acceleration and braking on low-traction surfaces
    • Maintains steering composure to allow throttle-on powerslides
    • Never dulls throttle or slows the truck
    • Adjusts from off to 100% assistance from the transmitter
  • TQi™ 2.4 GHz High Output Radio System with Wireless Module
    • Factory-installed telemetry sensors
    • TQi 2-channel transmitter
    • 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
    • Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
    • Programmable multi-function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle end points

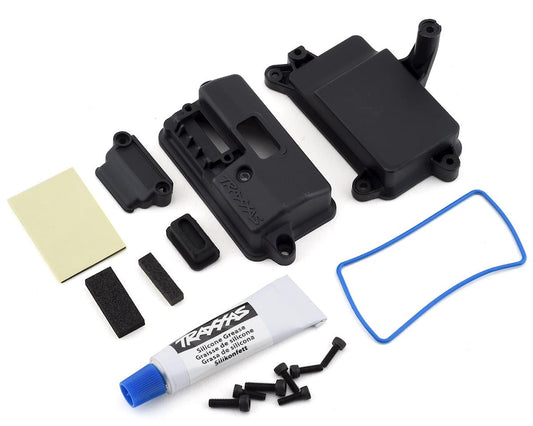

    • Patented waterproof receiver box

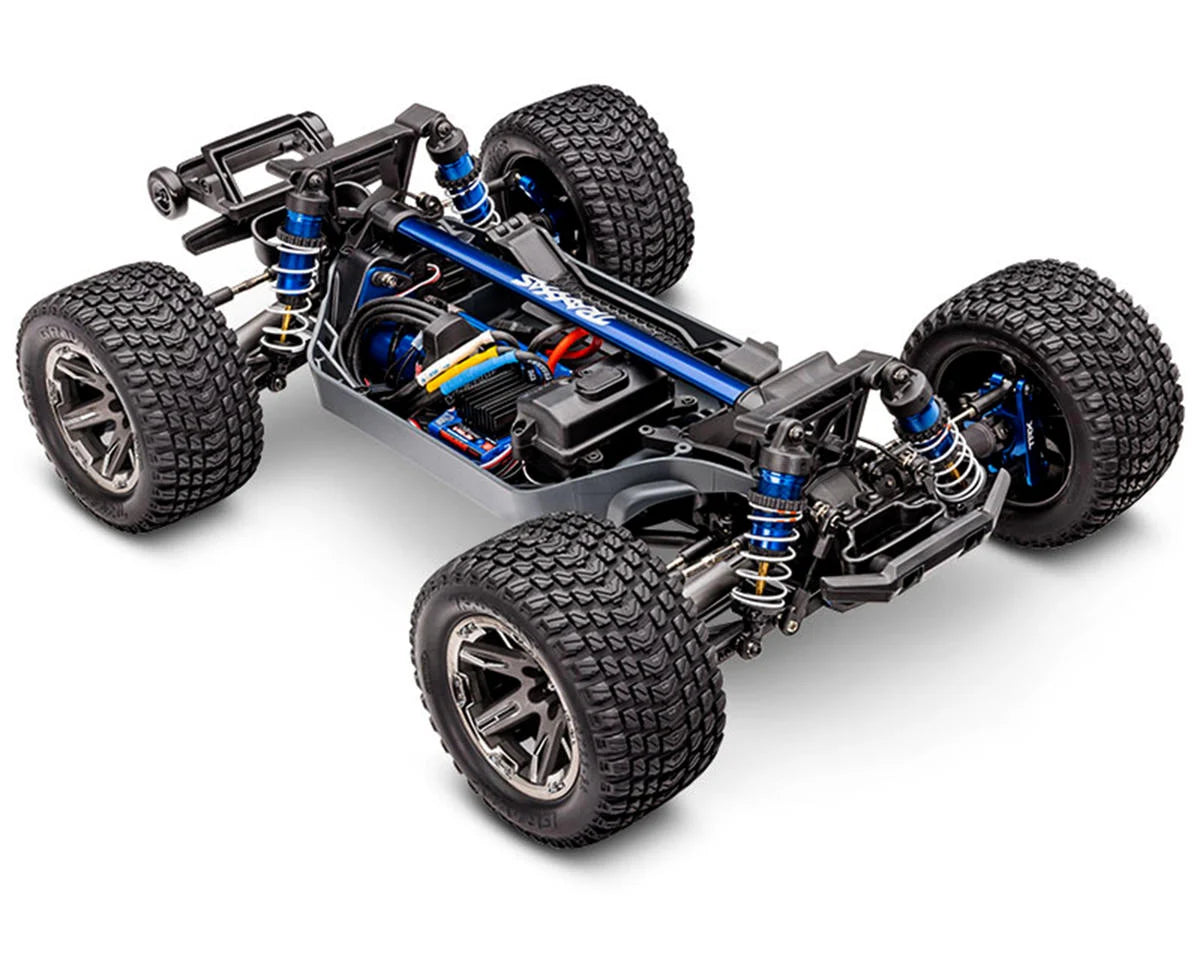

  • Chassis
    • Low-CG design for responsive handling

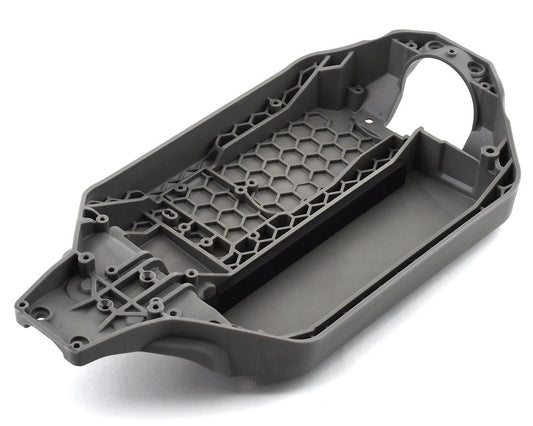

    • Modular composite tub design
    • Latching battery hold-down

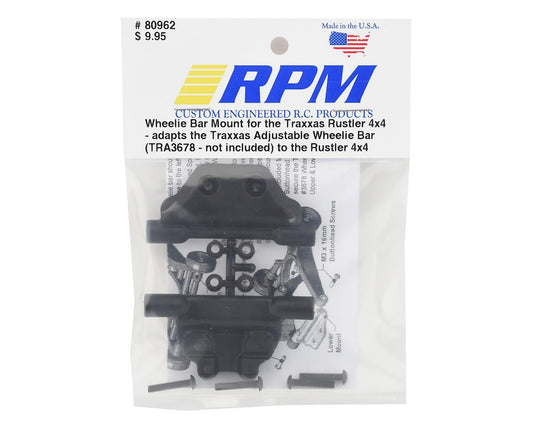

    • Reinforced integrated wheelie bar
    • High-approach front bumper to climb curbs
  • Drivetrain
    • Extreme heavy-duty driveshafts

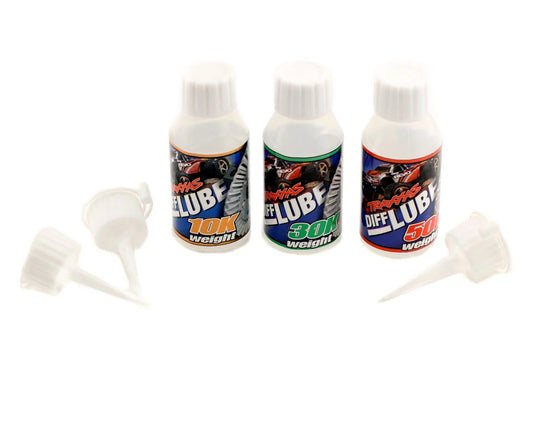

    • Oil-filled steel gear front and rear differentials
    • Large 32-pitch gearing
    • Torque Control™ heavy-duty slipper clutch with aluminum pads
    • Anodized-aluminum center driveshaft
  • Steering
    • High speed metal gear 2075R servo
    • Dual bellcrank design with integrated servo saver
  • Suspension
    • Adjustable front and rear sway bars
    • Adjustable toe and camber links
    • Impact-resistant suspension arm composite
    • Oil-filled Ultra Shocks
    • Captured rod ends won't pop off

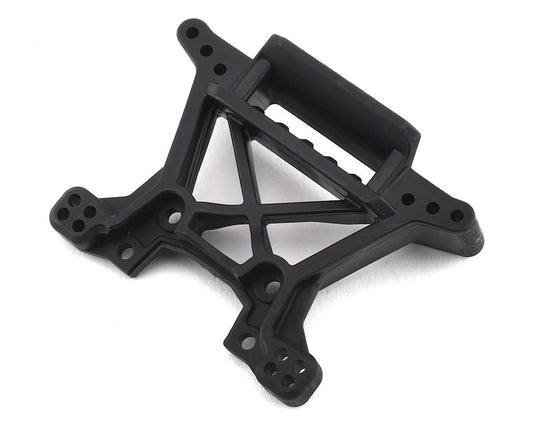

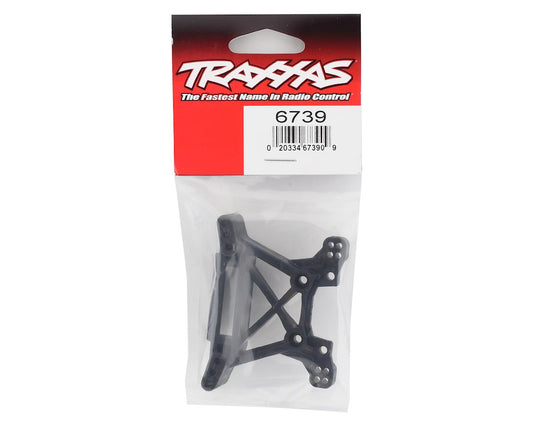

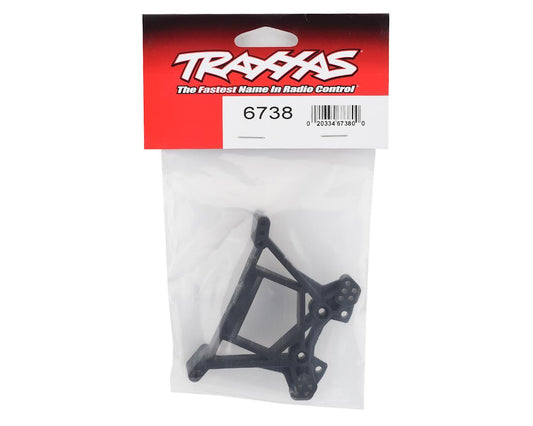

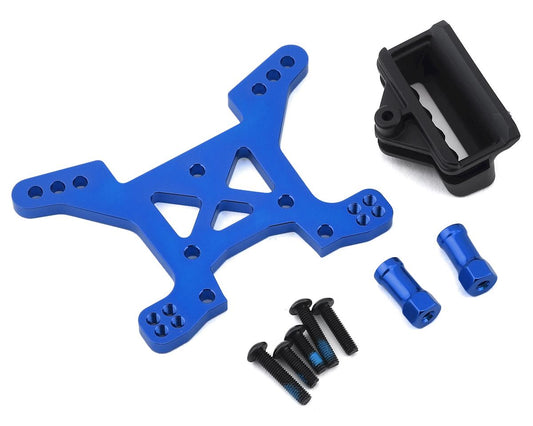

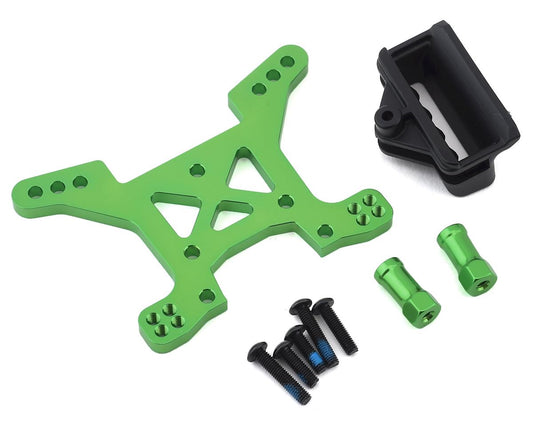

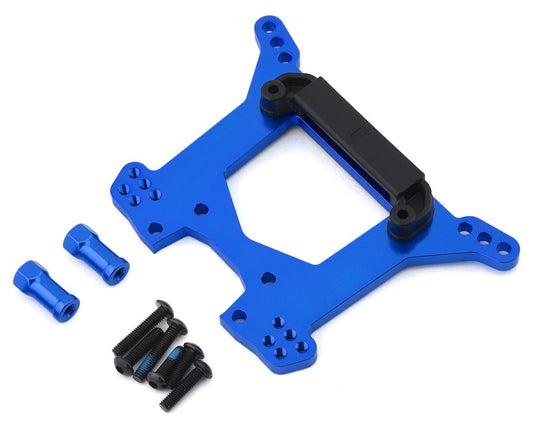

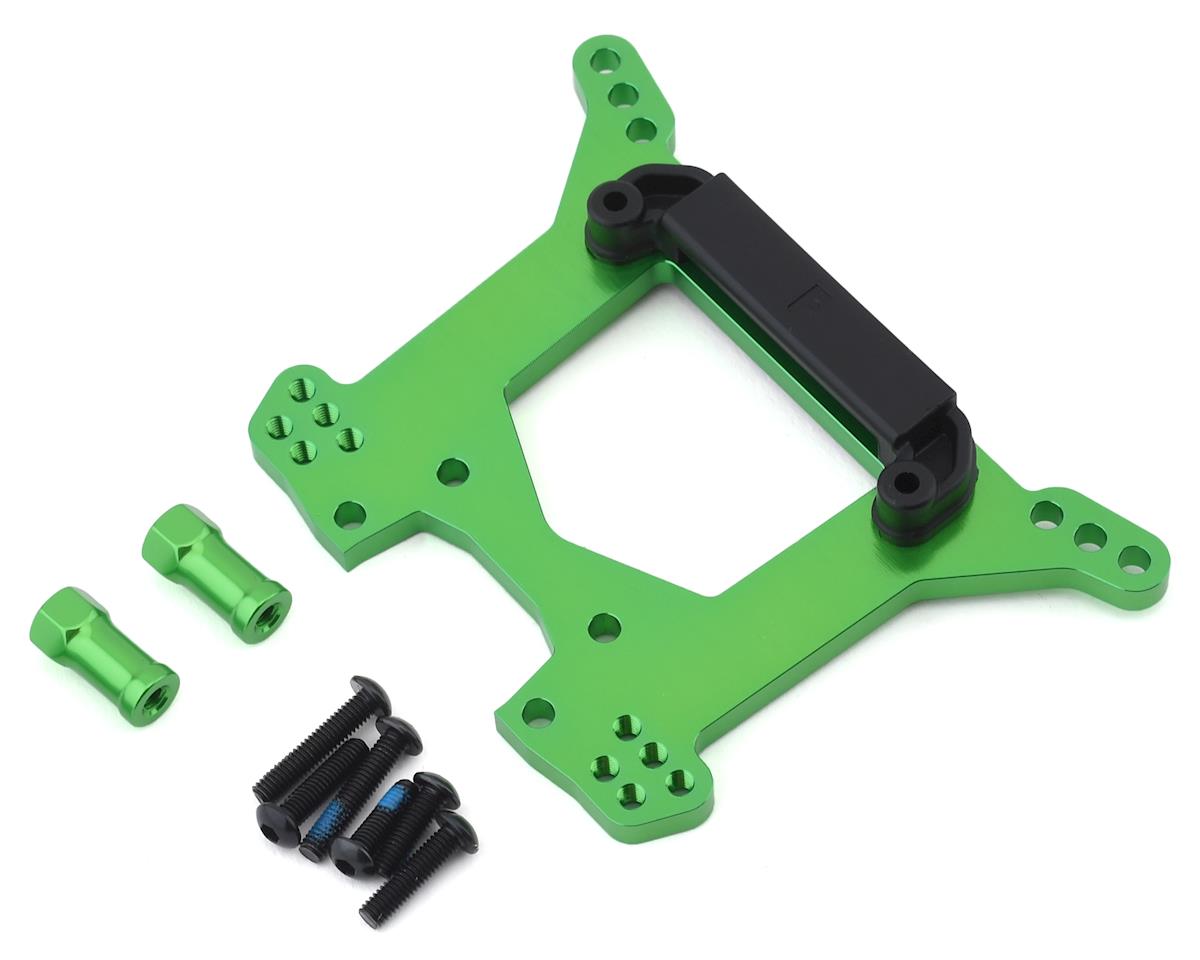

    • Rugged front and rear shock towers
    • White powder-coated progressive springs
  • Wheels and Tires
    • Large 2.8″ charcoal gray RXT wheels with black chrome beadlock trim
    • 2.8″ Gravix tires
  • Sealed Ball Bearings
  • Hex hardware with Rust-Resistant Black Oxide Coating
  • Requires Battery and Charger (Sold Separately)

Model Specs



Model Name: Rustler 4X4 VXL ULTIMATE
Model Type: Stadium Trucks
Model Speed: 65+ mph
Model Skill Level: 2
Scale: 1/10
Weight: 5.12 pounds (2.32 kg)
Length: 18.78 inches (477 mm)
Width: 12.94 inches (329 mm)
Front Track: 12.94 inches (329 mm)
Rear Track: 12.94 inches (329 mm)
Height: 12.94 inches (329 mm)

Motor Specs


Motor Name: Velineon® 3500
Motor Type: Sensorless brushless
Motor Weight: 9.24 ounces (262 g)
Motor Length: 3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length
Motor Diameter: 1.41 inches (36 mm)
Motor Shaft Size: 3 mm
Motor Connector Type: 3.5 mm bullet

ESC Specs


ESC Name: VXL-3s™ electronic speed control
ESC Type: Brushless
ESC Case Size: 1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)
ESC Weight: 3.17 ounces (90 g)
Motor Connectors: 3.5 mm bullet
Battery Connectors: Traxxas High-Current Connector
ESC Power Wire: 12 gauge Maxx® Cable



Traxxas's Most Advanced 3S Stadium Truck!

The Rustler 4x4 VXL Ultimate is the ultimate Heavy Duty choice for speed enthusiasts seeking robust capabilities, boasting unparalleled agility and unstoppable 4WD traction. Beneath its reinforced clipless body, the Rustler's low and broad chassis guarantees superb stability and precise maneuverability, setting the bar higher for handling prowess. Packed with both chassis and electronics updates the Rustler 4x4 is more exciting than ever!

The Rustler 4x4 VXL Ultimate pre-installed Extreme Heavy Duty Upgrade Kit elevates its drivetrain and suspension to unparalleled levels of strength. Boasting reinforced components from heavy-duty suspension arms to steel wheel hubs, this upgrade kit forms the strongest driveline ever offered in a Rustler. Additionally, the clipless body mounting system ensures secure attachment and swift, single-handed removal/installation, featuring a sleek, aerodynamic design fortified by an internal rugged structure and external rollover protection. Equipped with a powerful Velineon 3500 brushless system, the Rustler Ultimate is capable of running 2S to 3S LiPo with a top speed of 60+ MPH! providing the Rustler 4x4 VXL Ultimate with all the power needed for shredding tires, doing wheelies on demand and be a robust speed weapon!

Carve corners like a pro thanks to Rustler 4x4 VXL Ultimate’s adjustable sway bars and ultra-smooth, PTFE-coated aluminum GTR shocks. Rustler 4x4 VXL Ultimate’s agility and 4-wheel drive grip is further enhanced by its 2.8" Gravix tires. Pioneered on XRT, Gravix tires deliver outstanding grip on hard-packed surfaces with fast and quiet-running precision. comes fully loaded with aluminum upgrades for maximum strength and durability and they’re color-matched to the body. Brightly anodized caster and steering blocks, axle carriers, and chassis stiffener look as good as they perform and give Rustler 4x4 VXL Ultimate the brute strength required for extreme driving. A Traxxas Link Wireless Module comes standard on Rustler 4x4 VXL Ultimate along with factory-installed telemetry sensors to unlock the full potential of the TQi transmitter. Adjust the transmitter’s settings on the fly and record real-time telemetry data like speed, RPM, and battery voltage on your mobile device using the free Traxxas Link app!

Features:

  • Velineon 3500 Brushless Power System: Capable of running 2S to 3S LiPo with a top speed of 60+ MPH!
  • Extreme Heavy Duty Upgrade Kit: Upgraded drivetrain and suspension components for ultimate strength, including HD suspension arms and steel wheel hubs
  • Clipless Body Mounting: Secure body latching system for easy one-handed removal/installation, aerodynamic design with rugged internal structure for durability
  • Modular Chassis: Easily perform maintenance and repairs with the Rustler 4x4's modular chassis design

Ultimate Features:

  • Anodized aluminum chassis stiffener brace
  • CNC-machined anodized aluminum caster, steering blocks and hub carriers
  • Extremely lightweight aluminum center driveshaft
  • Blue anodized PTFE-coated aluminum GTR shocks with nitride coated shafts
  • Factory installed composite body reinforcement
  • Low CG (Center of Gravity) chassis
  • Adjustable front and rear sway bars
  • High speed metal gear servo
  • All-Terrain Gravix tires on RXT wheels

Specifications:

  • Scale: 1/10
  • Length: 18" (457mm)
  • Width: 12.94" (329mm)
  • Wheelbase: 11.6" (295mm)
  • Weight: 5.13lbs (2.33kg)
  • Drive: 4WD
  • Power Source: Electric
  • Input Voltage:
    • 6-7 cells (7.2-8.4V) NiMH
    • 2-3S (7.4-11.1V) LiPo
  • Gear Ratio: 12.81:1
  • Assembly Level: Ready To Run
