SKU:74276-4

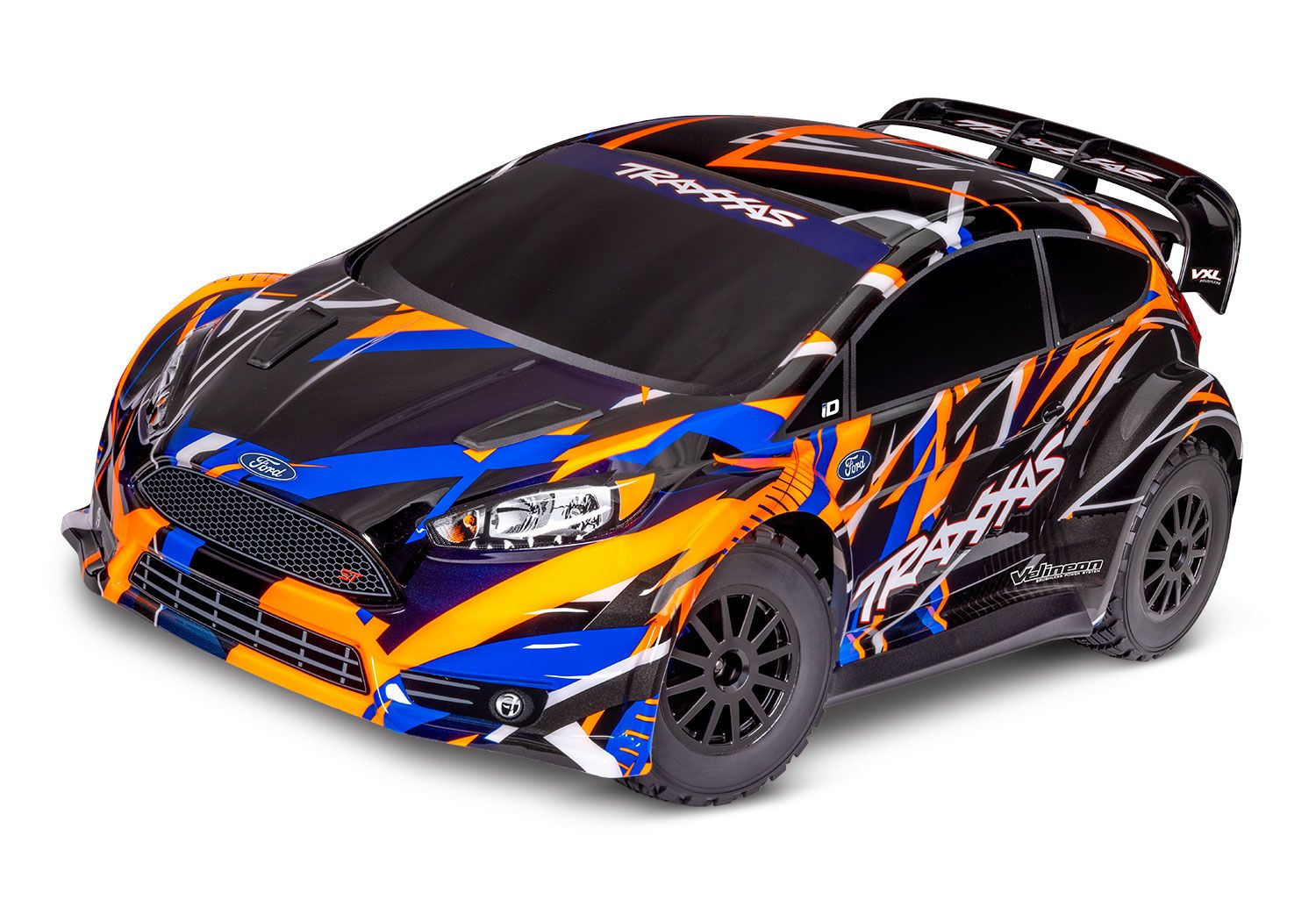

Traxxas Ford Fiesta ST Rally VXL
Includes:
- (1) Ford Fiesta ST 4x4 VXL Brushless 1/10 RTR AWD Rally Car
- (1) Optional Pinion Gear
- (1) TQi 2.4GHz Radio System w/TSM
- (1) Velineon Brushless VXL-3s™ ESC
- (1) Velineon 3500kV Sensorless Brushless Motor
- Miscellaneous Tools
- Product Manual
Needed To Complete:
- (1) 6-7 Cell NiMH or 2-3S LiPo Battery (7.2-11.1V)
- (1) Compatible Battery Charger
- (4) AA Batteries for Transmitter
Specifications:
Scale | 1:10 |
---|---|
Drive | 4WD |
Power Source | Electric |
Length | 21in (535mm) |
Wheelbase | 12.8in (324mm) |
Width | 11in (281mm) |
Height | 8.1in (206mm) |
Weight | 5.8lbs (2.63kg) |
Motor: | Velineon 3500kV (10-turn) |
ESC | VXL-3s |
Connector | Traxxas iD® |
Servo | High-torque 2075 Digital Waterproof |
Front | 12-Spoke Rally |
Rear | 12-Spoke Rally |
Hex | 12mm |
Front | Gravel Pattern Directional |
Rear | Gravel Pattern Directional |
Assembly Level | RTR* |
-

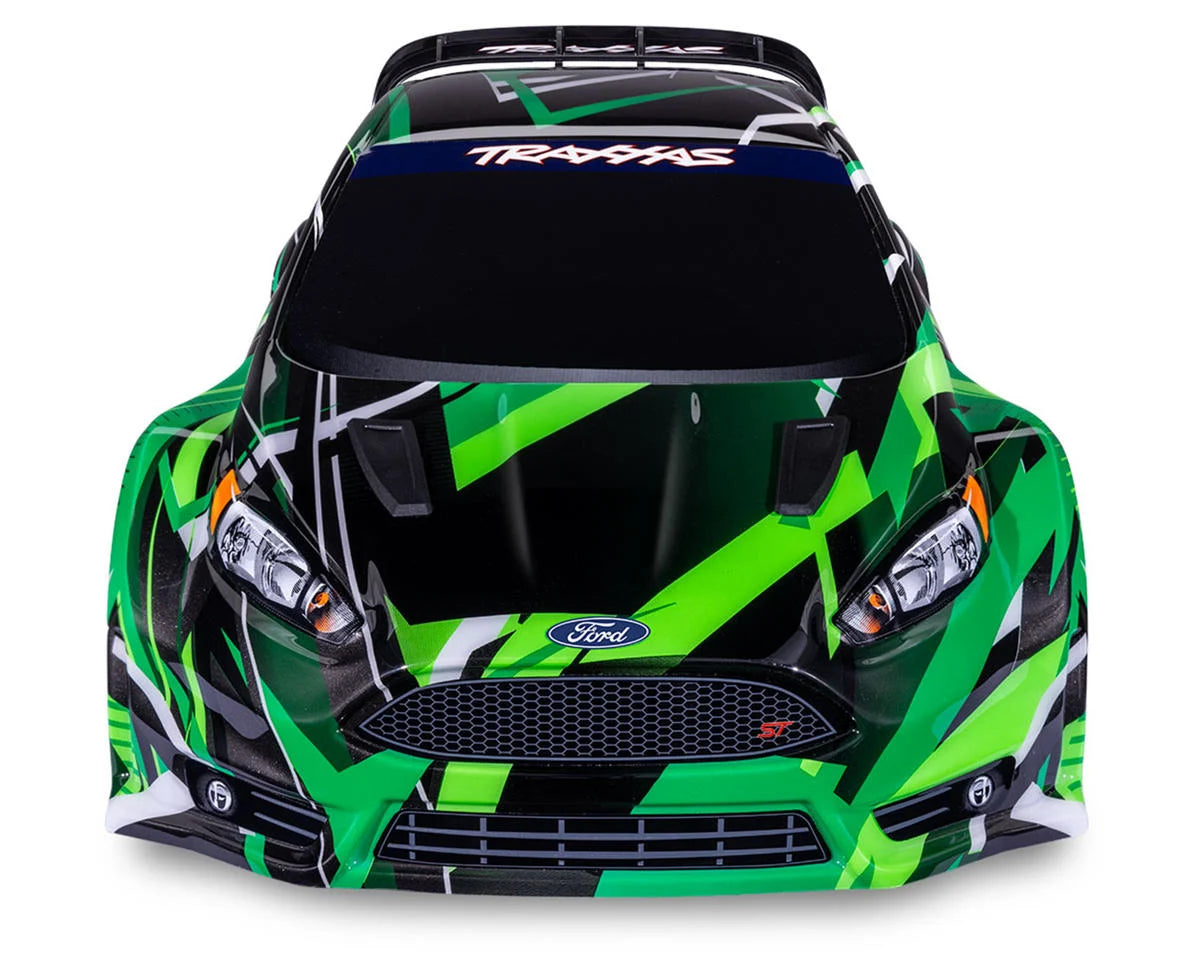

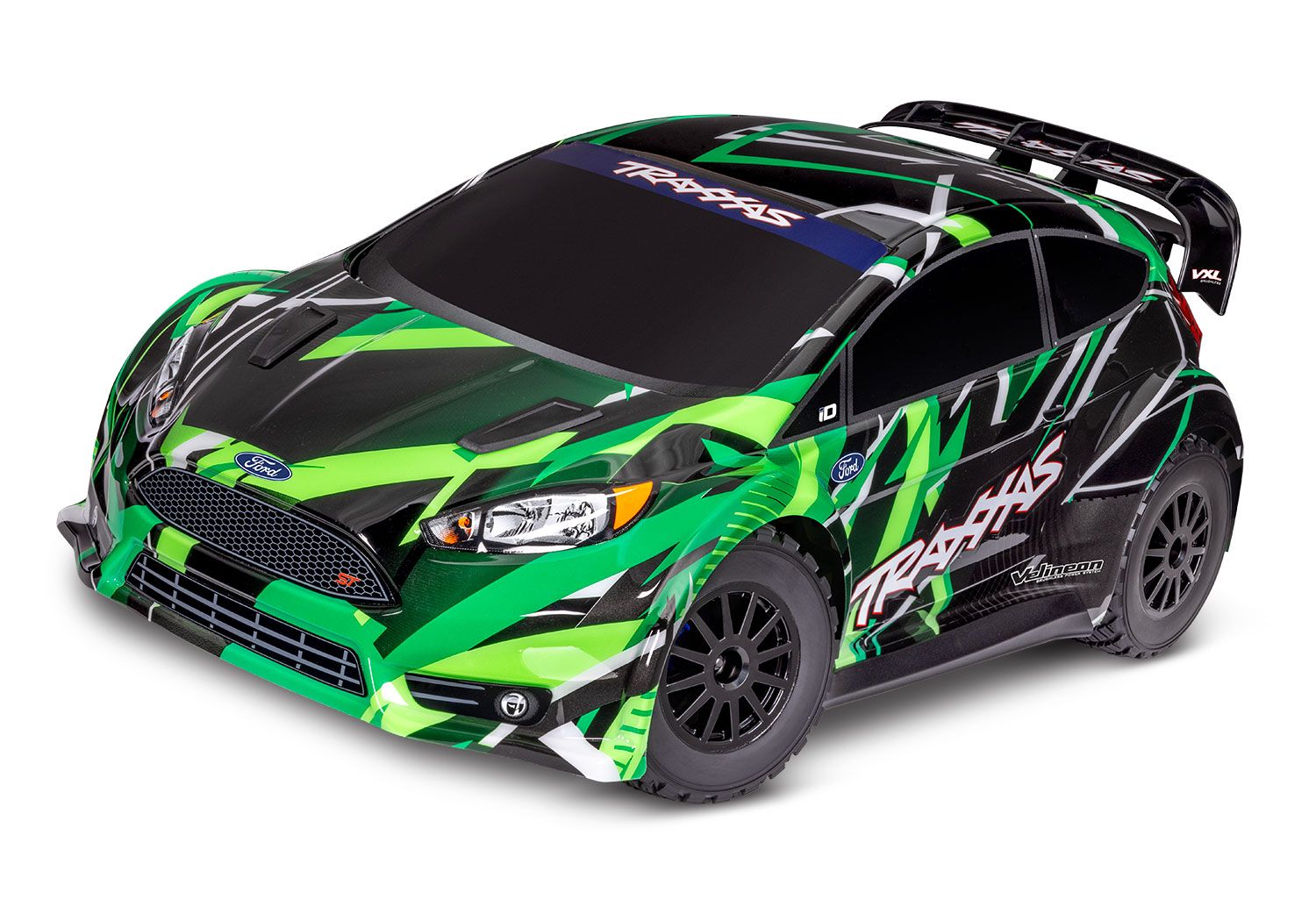

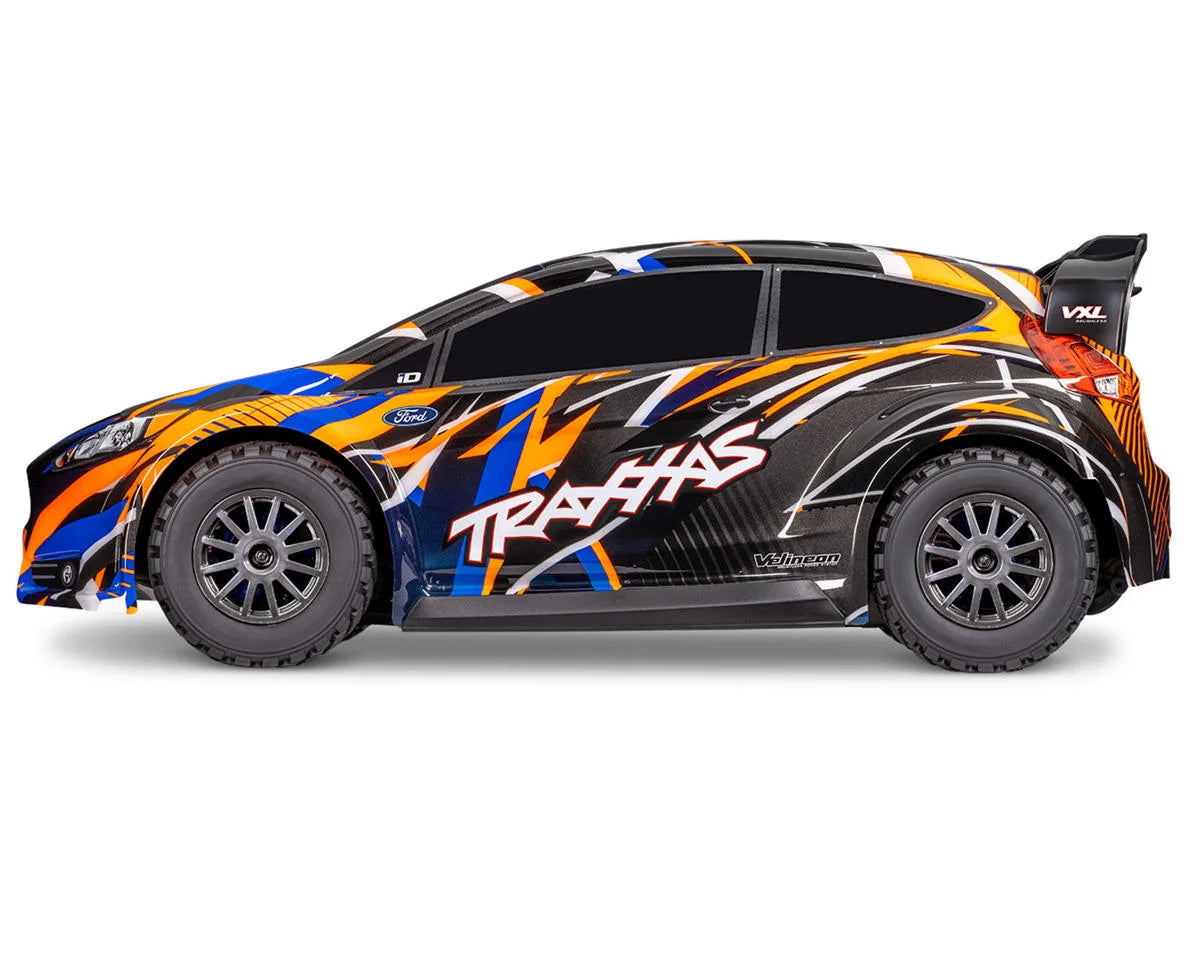

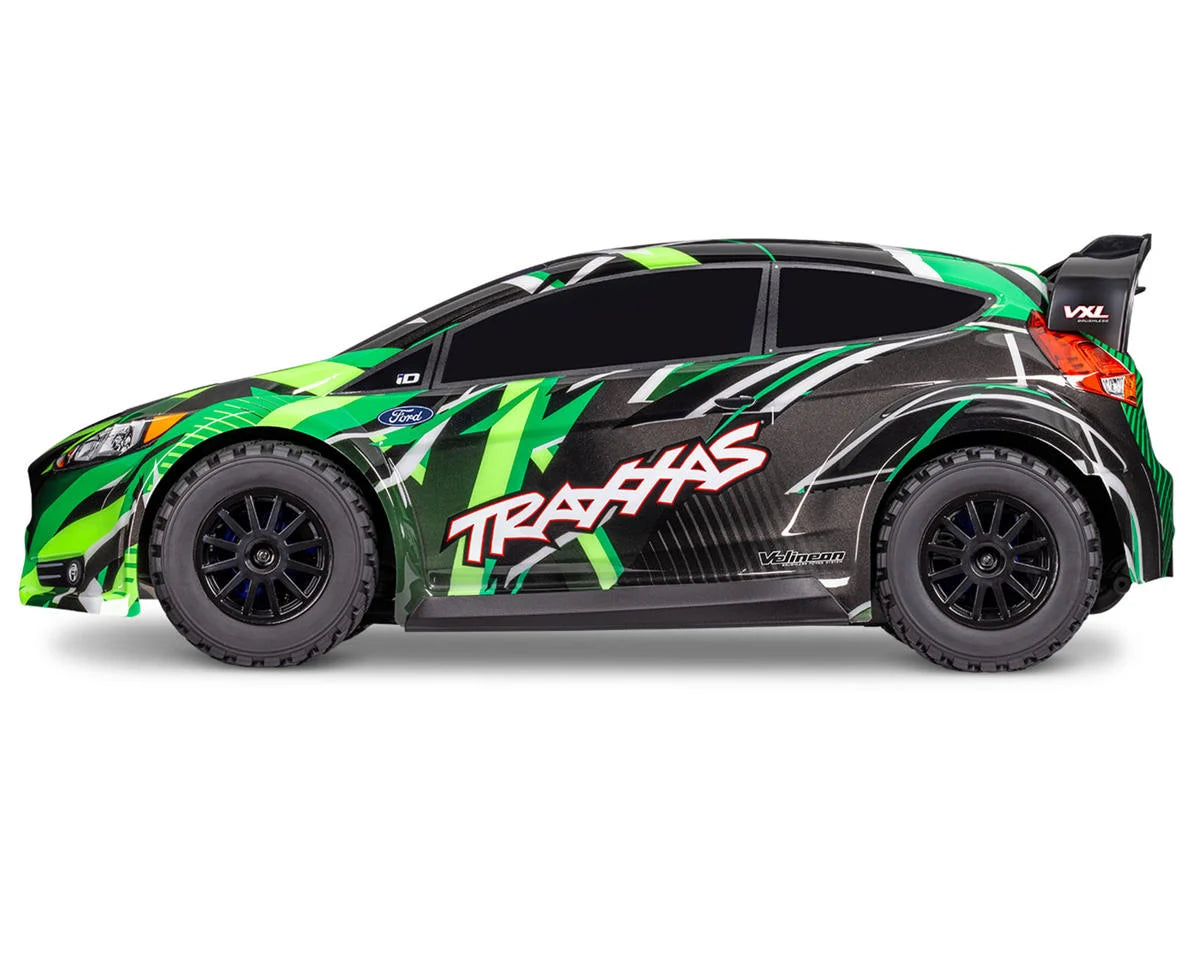

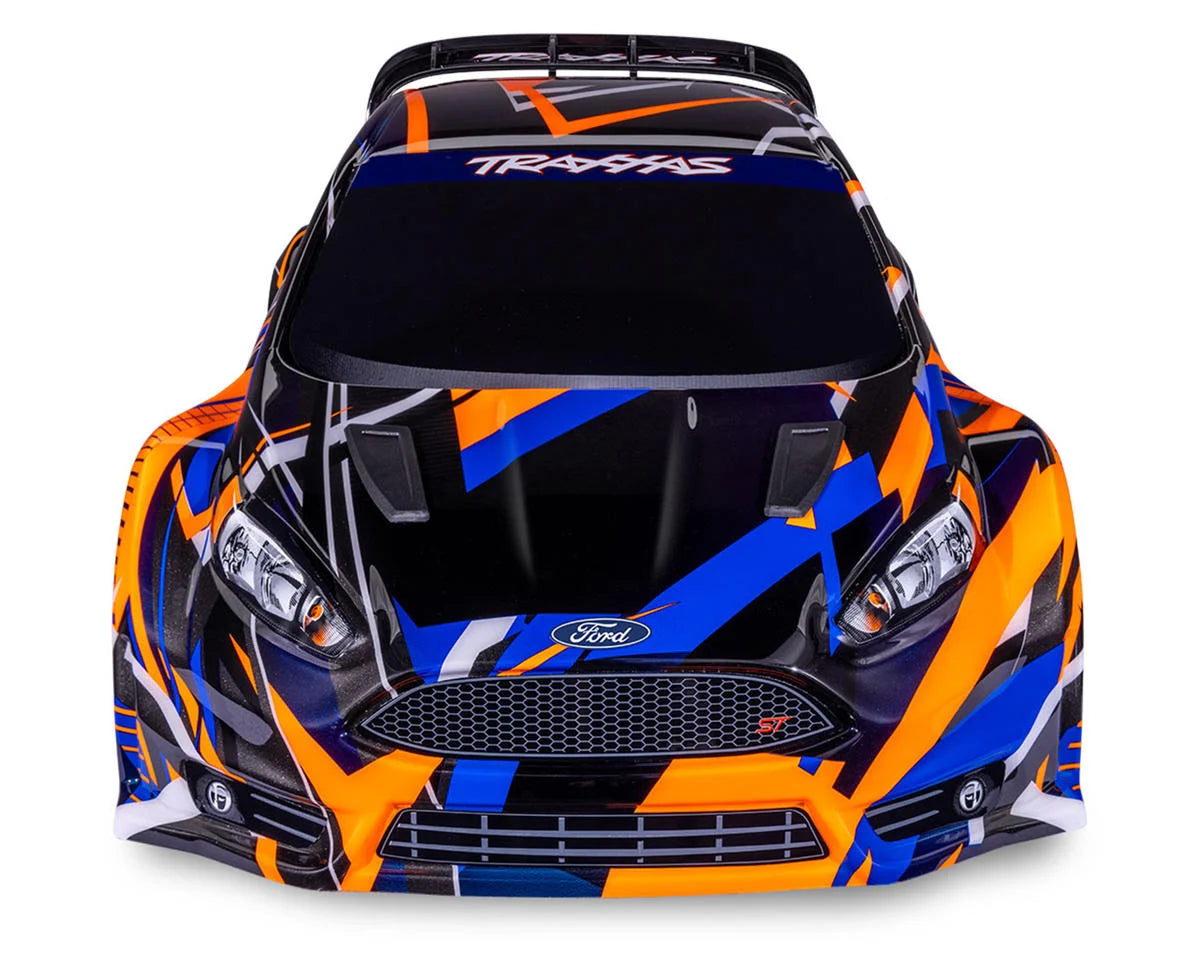

Clipless Body
- Officially Licensed Ford® Fiesta® ST body
- Pre-painted with applied decals
- Tough composite rear wing
- High approach angle front bumper
- Internal reinforcement with integrated nerf bars
- Quick and easy removal
- Holds tight for intense action
-
Extreme Heavy Duty Upgrade Kit Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- Extreme heavy duty driveshafts
- Oversize diameter
- 6 mm axles
-
TQi™ 2.4 GHz High Output Radio System
- TQi 2-channel transmitter
- Programmable multi-function knob
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- 5-channel receiver (6533) with fail-safe security
- Waterproof receiver box with easy-access plug
-
Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
-
VXL-3s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan (3340)
- Three Programmable Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
-
Velineon® 3500 kV Brushless Motor
- Ultra high-temperature sintered Neodymium magnet
- Low-maintenance design
- Efficient high-speed ball bearings
- 3500 kV
- Brilliant blue-anodized finish
-
Steering
- Chassis-mounted 2075 servo
- Dual bellcrank design with integrated servo saver
-

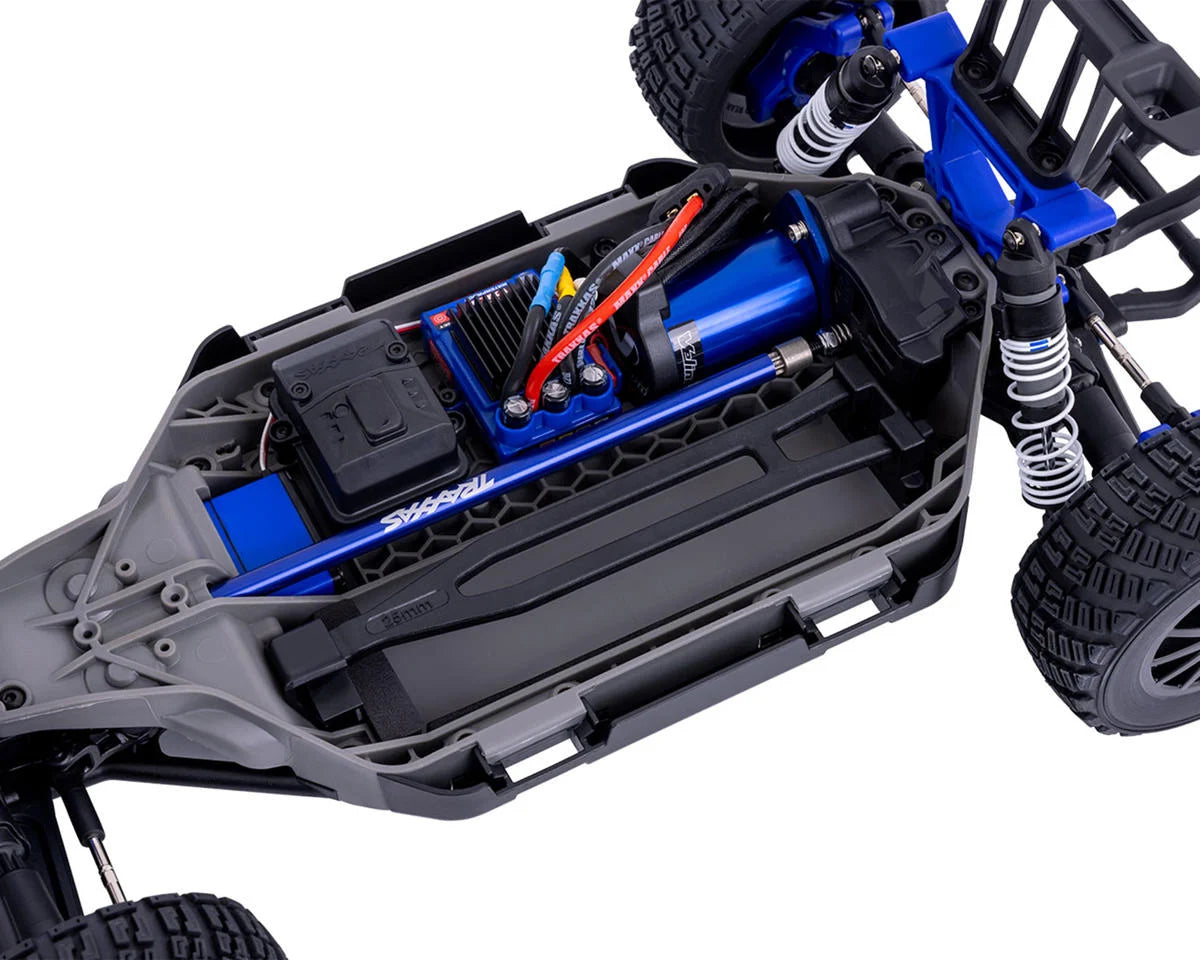

Easy Access Battery Compartment
- Adjustable battery hold down
- Accepts 6- and 7-cell NiMH flat packs and 2-3 cell LiPo batteries
-

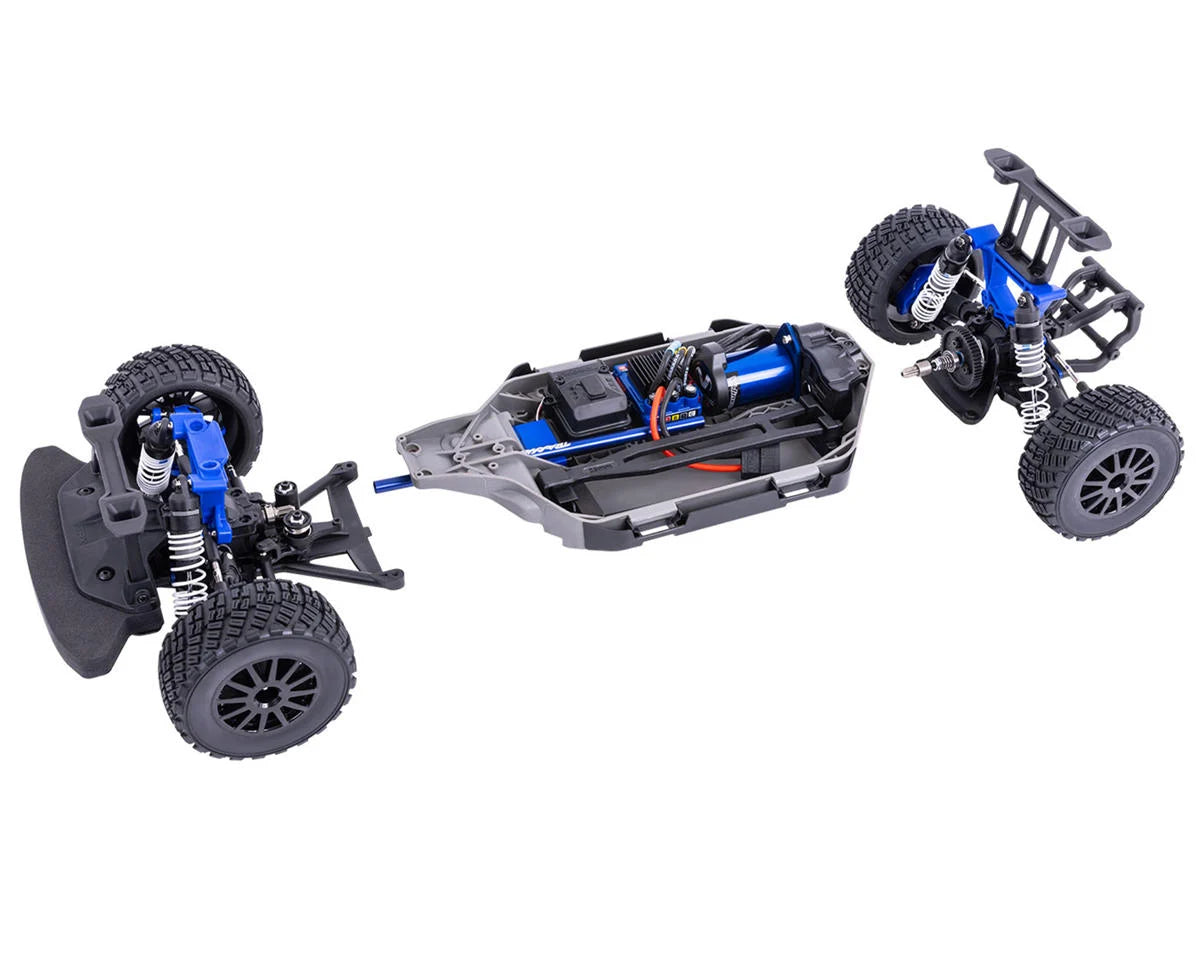

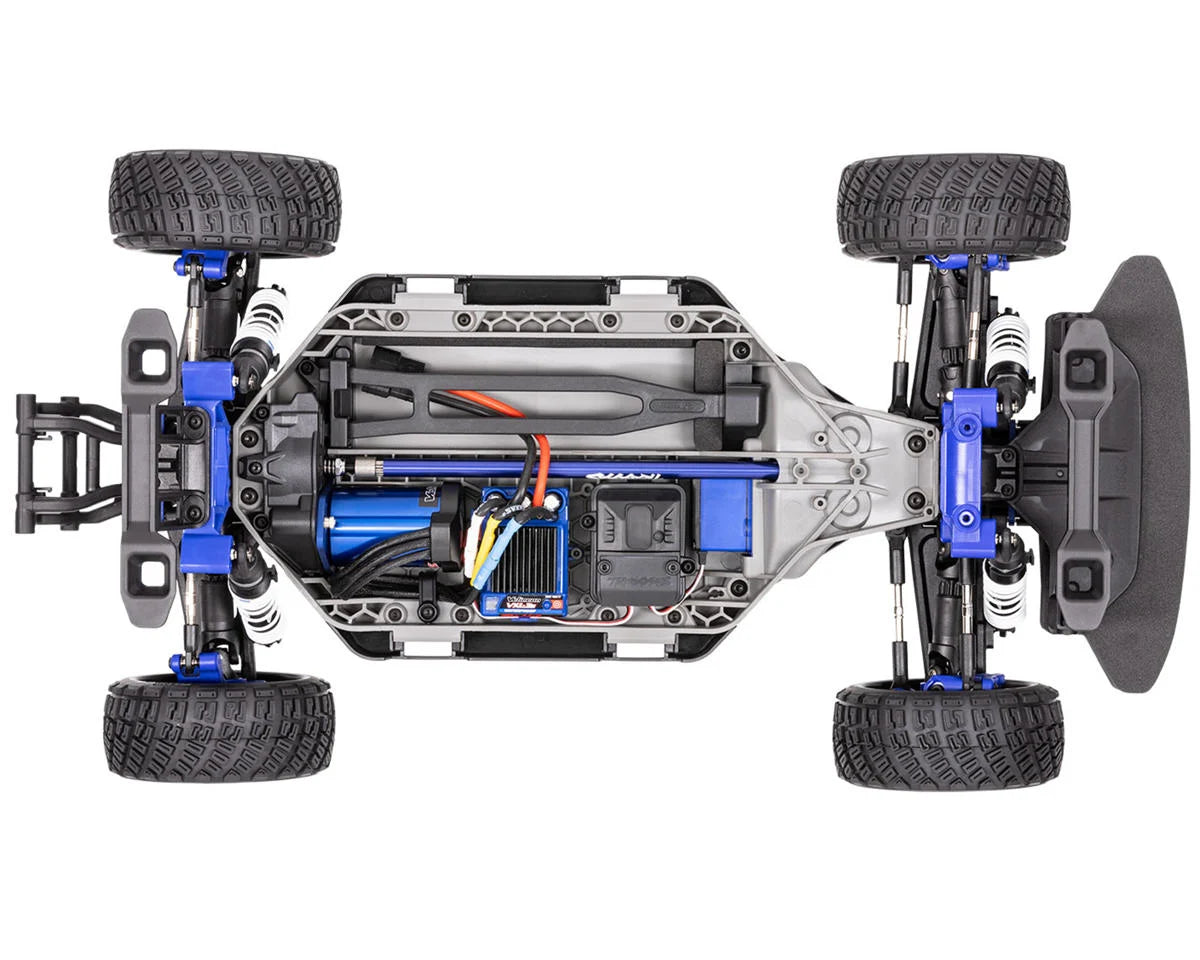

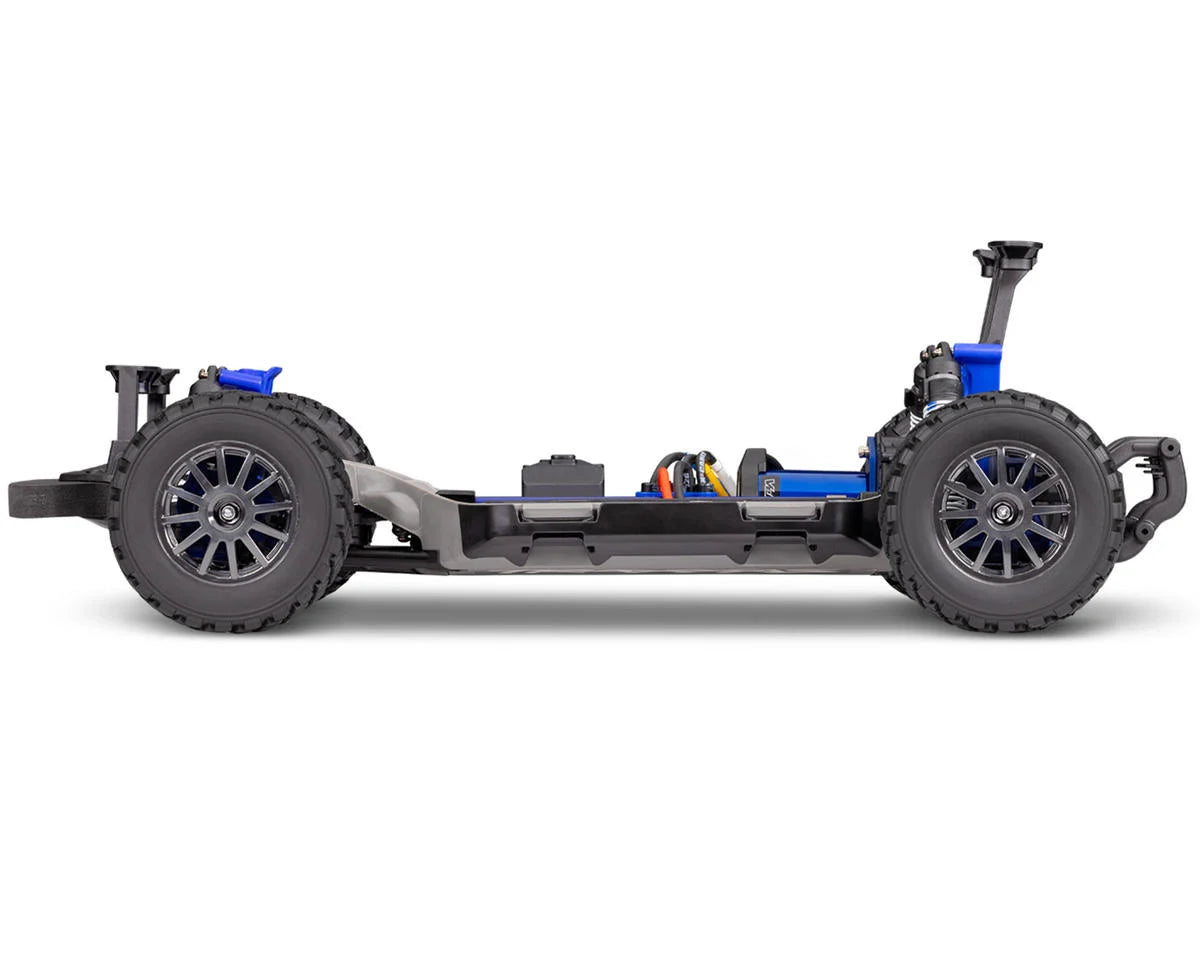

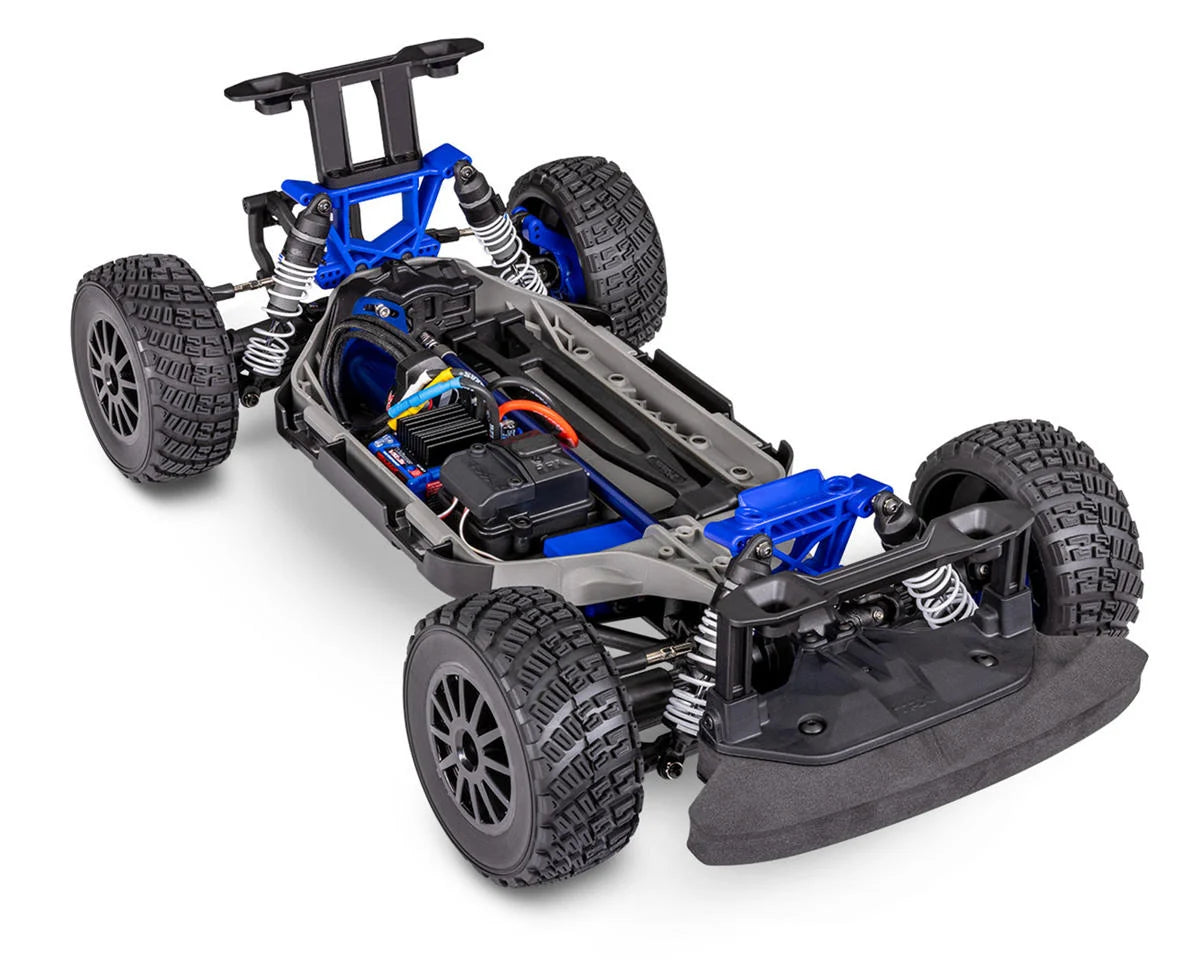

Low-CG Reinforced Modular Chassis
- High-angle front bumper
- Modular chassis makes maintenance quick and easy
- Batteries and electronics held low for improved handling
- Low-CG design dramatically increases corner speed
- Easy motor access with single-screw motor plate attachment
-
Suspension
- Oil-filled Ultra Shocks™
- White powder-coated springs
-

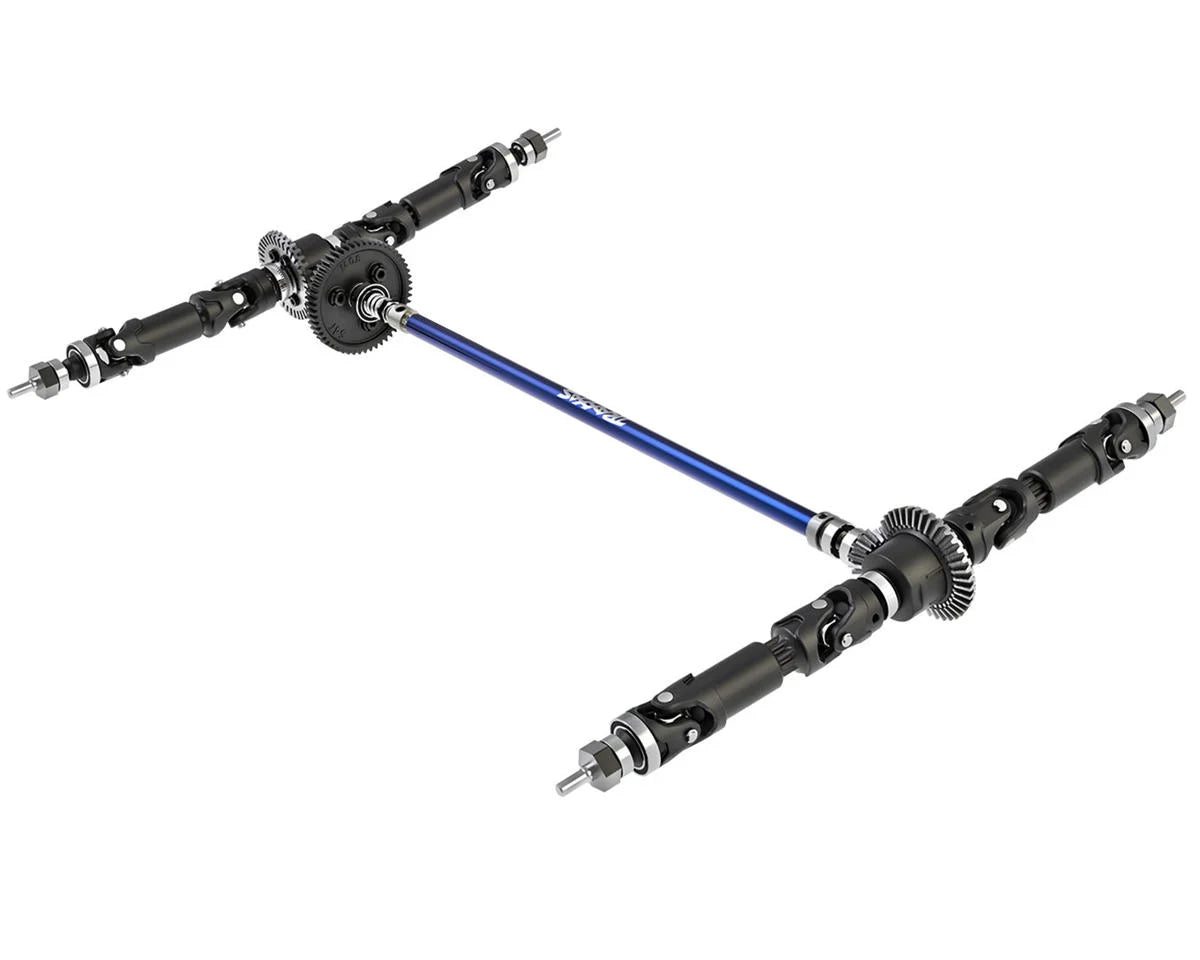

Drivetrain
- Full-time shaft-driven 4-wheel drive
- Oil-filled steel gear front and rear differentials
- Large 32-pitch steel spur gear
-
Wheels and Tires
- Pre-glued all-terrain rally tires with performance foam inserts
- 2″ outer diameter, 3″ inner diameter dual-profile 12-spoke rally wheels
- Rubber-Sealed Ball Bearings
- Precision Hex Hardware
Model Specs
Model Name: | Ford Fiesta ST Rally VXL |
---|---|
Model Type: | On-Road Cars |
Model Skill Level: | 2 |
Scale: | 1/10 |
Weight: | 6.11 pounds (2.77 kg) |
Length: | 21.0 inches (535 mm) |
Width: | 11.0 inches (281 mm) |
Front Track: | 11.0 inches (281 mm) |
Rear Track: | 11.0 inches (281 mm) |
Height: | 8.1 inches (206 mm) |
Wheelbase: | 12.8 inches (324 mm) |
---|---|
Center Ground Clearance: | 0.82 inches (21 mm) |
Drivetrain: | Shaft-driven 4WD |
Differential Type: | Hardened steel bevel, sealed, limited slip |
Gear Ratio (Internal): | 19.69:1 |
Gear Pitch: | 32 pitch |
Servo(s): | 2075 high-torque waterproof |
Radio System: | TQi™ 2.4 GHz 2-channel radio |
Battery Compartment Specs: | 165 mm X 50 mm X 23/26 mm |
Motor Specs
Motor Name: | Velineon 3500 kV |
---|---|
Motor Type: | sensorless brushless |
Motor Weight: | 9.24 ounces (262 g) |
Motor Length: | 2.20 inches (56 mm) |
Motor Diameter: | 1.41 inches (36 mm) |
Motor Shaft Size: | 3 mm |
Motor Connector Type: | 3.5 mm bullet |
ESC Specs
ESC Name: | Velineon VXL-3s |
---|---|
ESC Type: | Brushless |
ESC Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
ESC Weight: | 3.84 ounces (109 g) |
Motor Connectors: | 3.5 mm bullet |
Battery Connectors: | Traxxas High-Current Connector |
ESC Power Wire: |
12 gauge Maxx® Cable
|
Share
Accessories for this product...
-

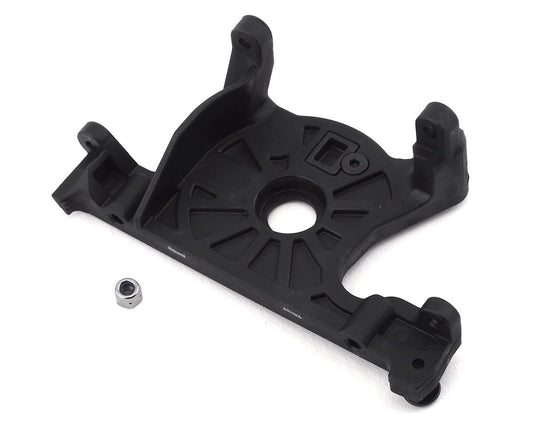

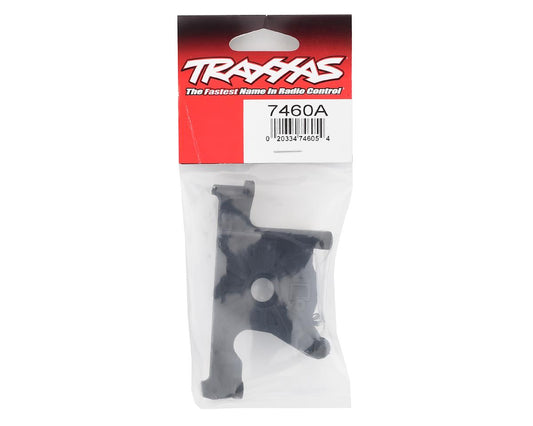

Rustler 4X4 Motor Mount
Regular price $6.00 USDRegular priceUnit price / per -

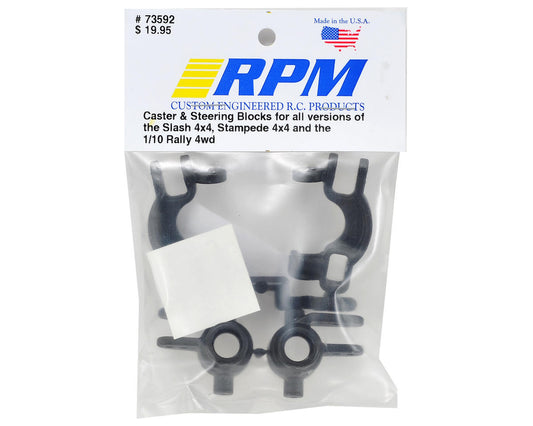

4x4 Caster & Spindle Block Set (Black) Traxxas
Regular price $19.95 USDRegular priceUnit price / per -

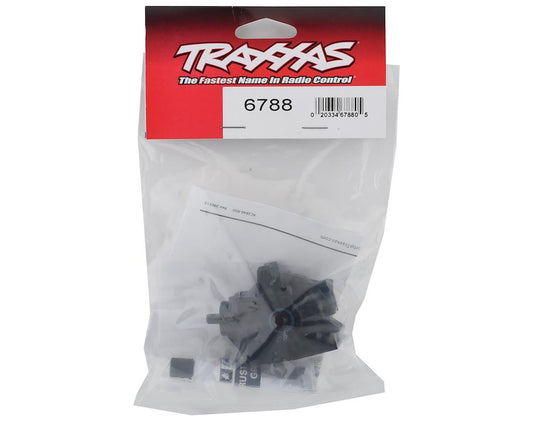

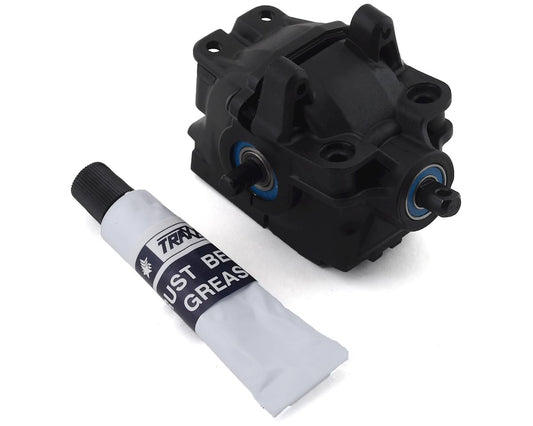

Slash 4x4 Pro-Built Front Differential
