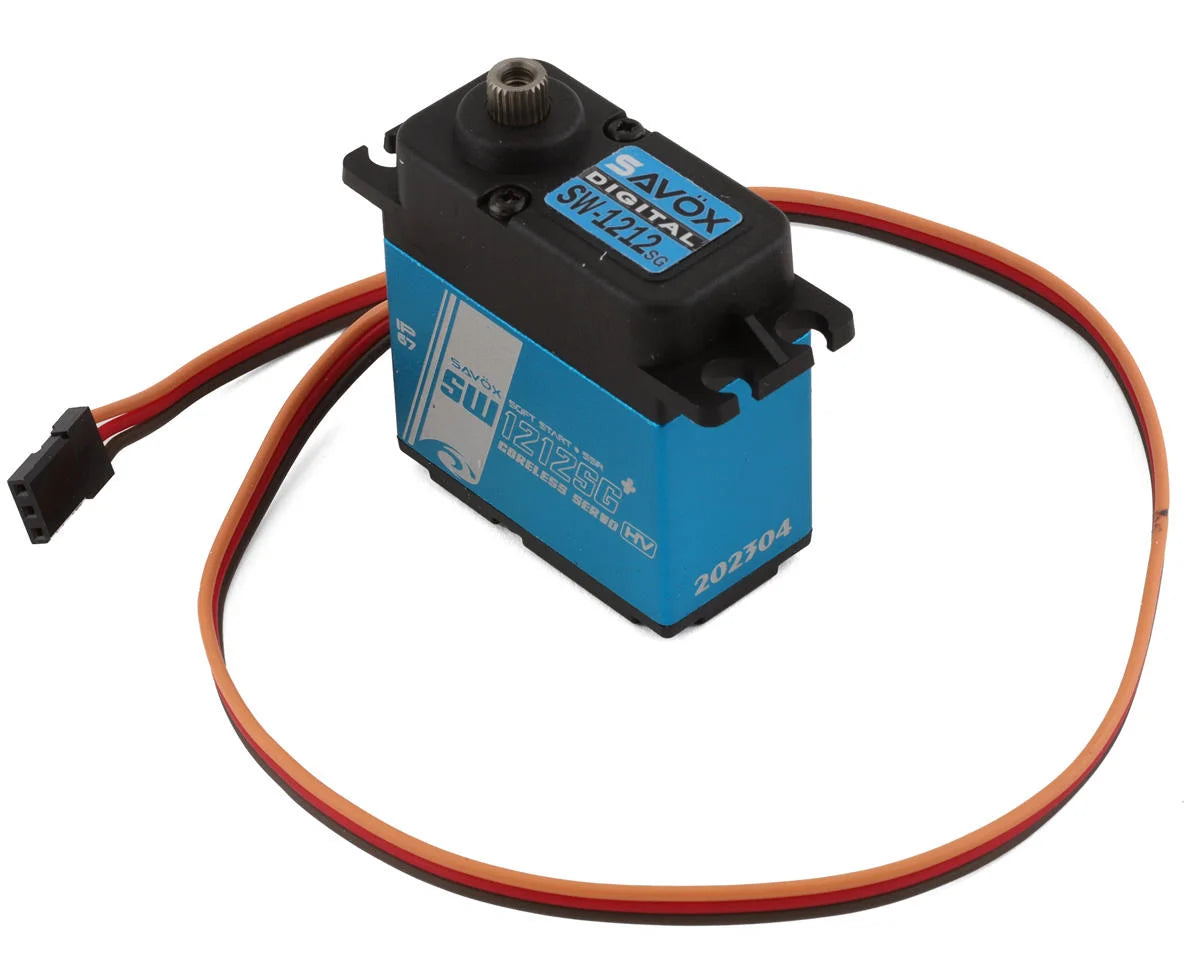

SW-1212SGP Waterproof Steel Gear Digital Servo (High Voltage) (Tall)

Savox SW-1212SGP Digital Waterproof Aluminum Case High Voltage Tall Servo. Constructed with the most advanced materials and technologies to get the best performance and reliability, this high quality powerful servo is equipped with aluminum and composite case and steel gears with plenty of torque and speed for numerous applications! In addition, the SW-1212SGP is high voltage approved and is capable of running high voltage to provide you with up to 638.2oz/in of torque and 0.14sec/60° of speed at 7.4V!

NOTE: This SW-1212SGP servo is taller then other standard 1/10 or 1/8 servos

Features:

• High Voltage compatible
• Waterproof design
• Extremely durable steel gears
• Center aluminum with nylon composite top and bottom case
• Operates directly on 7.4V without the need for an eternal BEC
• Fast and high torque for numerous applications
• Precision ball bearings

Specifications:

• Application: 1/10 or 1/8 Monster Trucks and most Scalers and Crawlers applications where a slightly taller servo can be fitted
• Motor: Coreless
• Operating Voltage: 6V-8.4V
• Speed:
  • 6.0V: 0.17sec/60°
  • 7.4V: 0.14sec/60°
• Torque:
  • 6.0V: 36Kg/cm (500oz/in)
  • 7.4V: 46Kg/cm (638oz/in)
• Spline: 25T
• Gear: CNC-Machined Steel
• Waterproof: Yes, 30 minutes in water up to 3 feet deep
• Dimensions (LxWxH): 40.6x20.7x46.1mm
• Weight: 83g

Includes:

• (1) Savox SW-1212SGP Digital Waterproof Aluminum Case High Voltage Tall Servo
