Traxxas

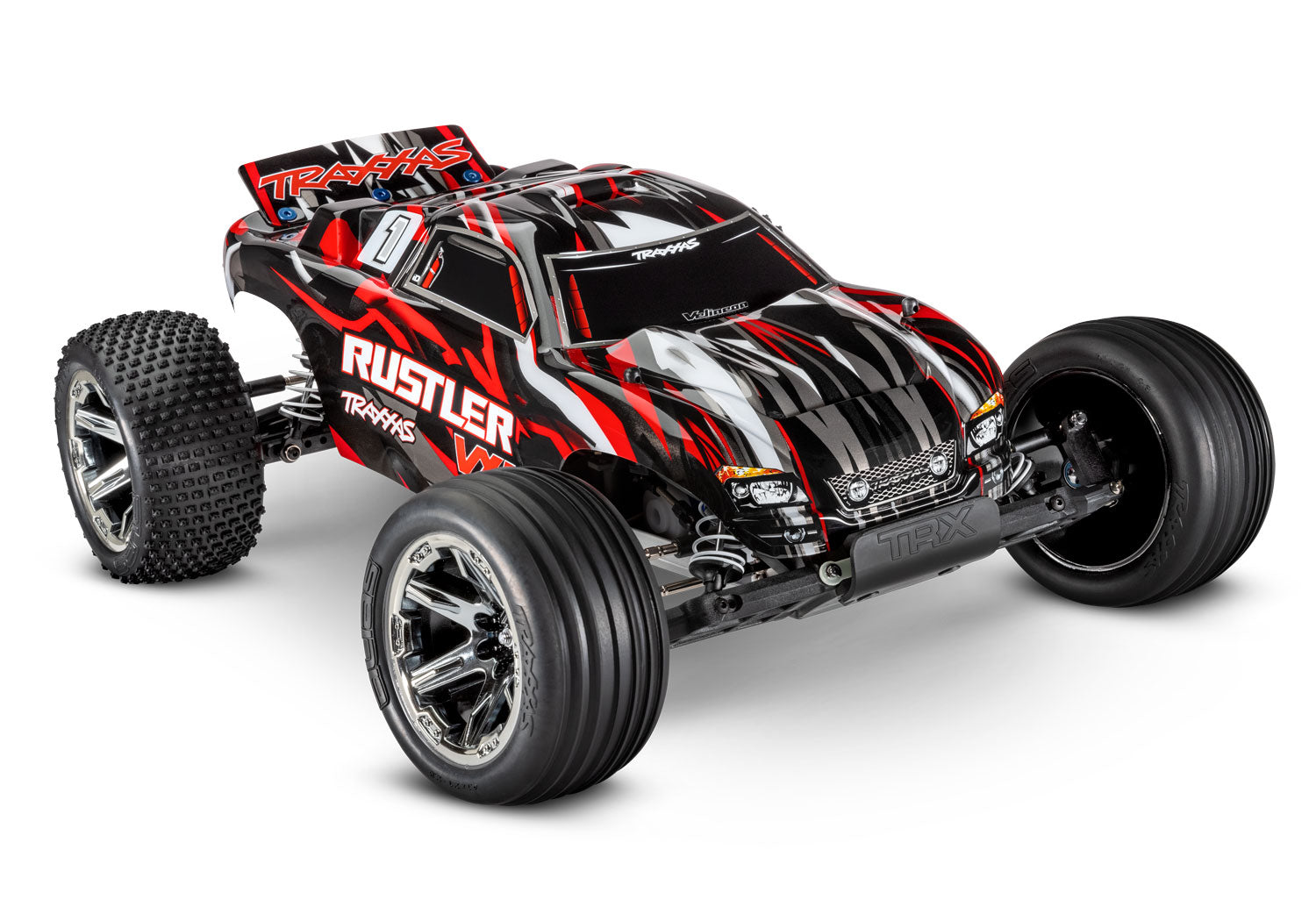

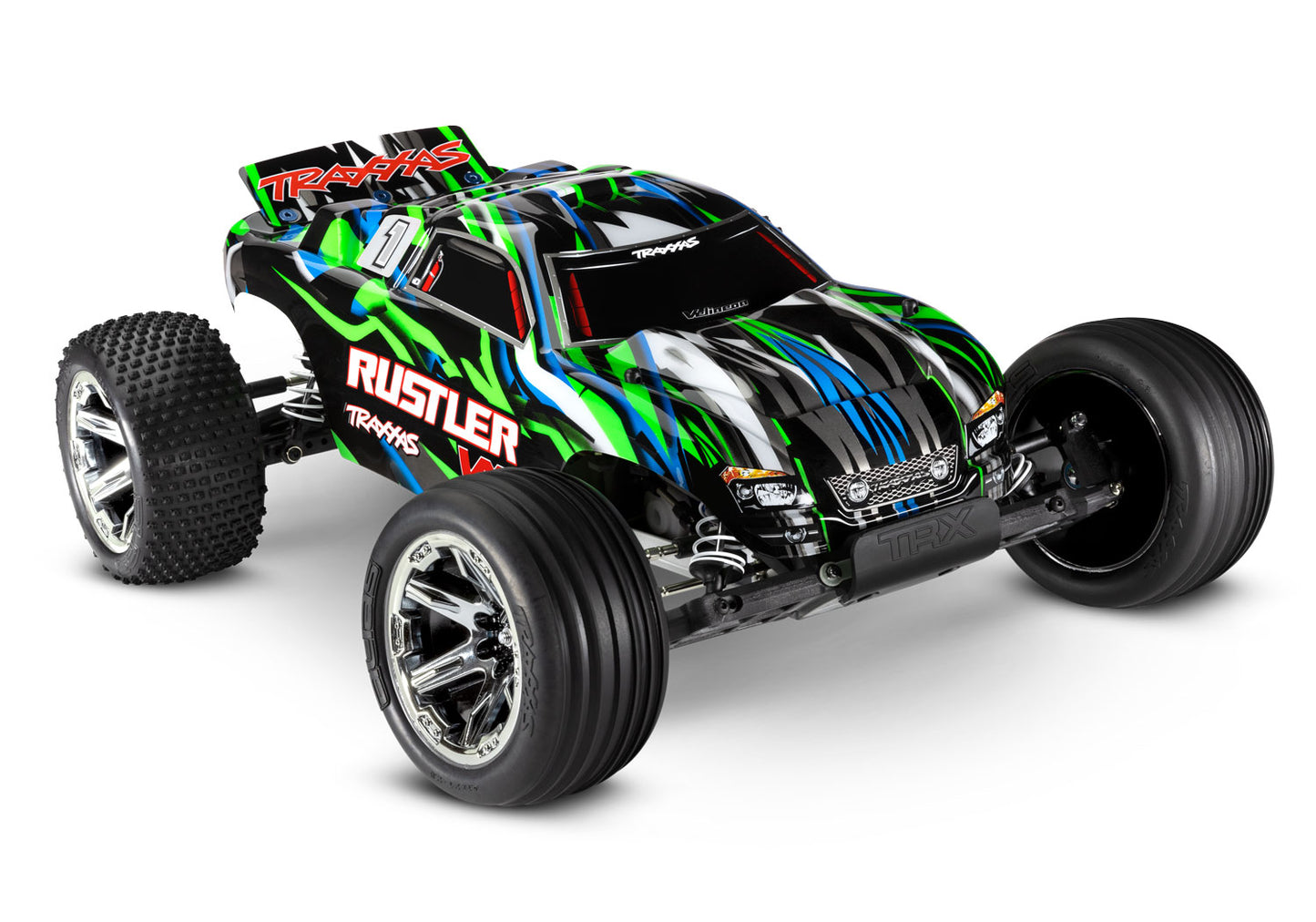

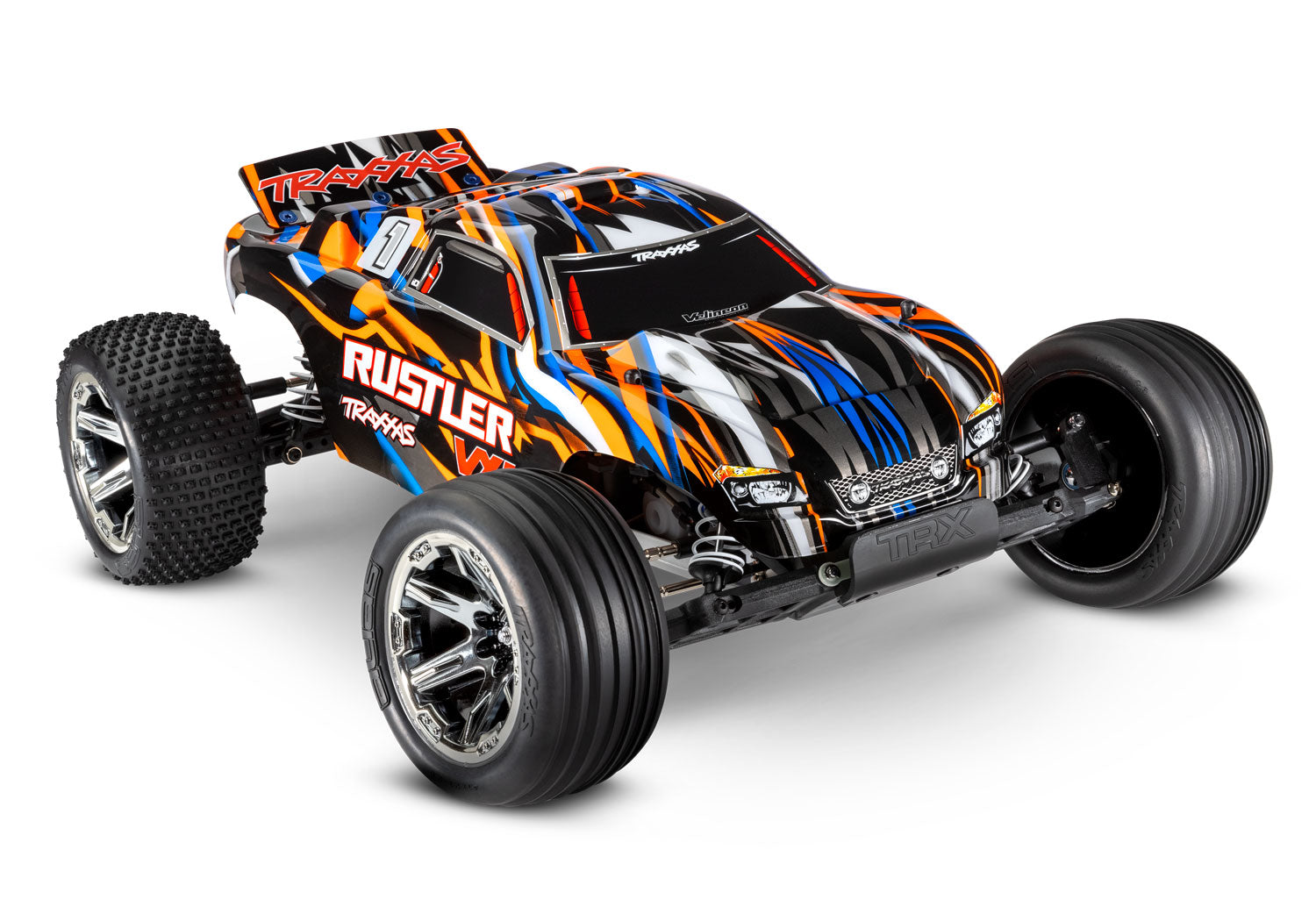

RUSTLER VXL W/ MAGNUM 272R

$329.95 USD

Sale Sold out

Shipping calculated at checkout.

$119.95 3S LIPO COMPLETER 2872X/2970 (addon details...)

$19.99 3000mAh 8.4v NIMH Battery (addon details...)

Color Green Orange Red

Product variants

SKU:37076-74

Quantity

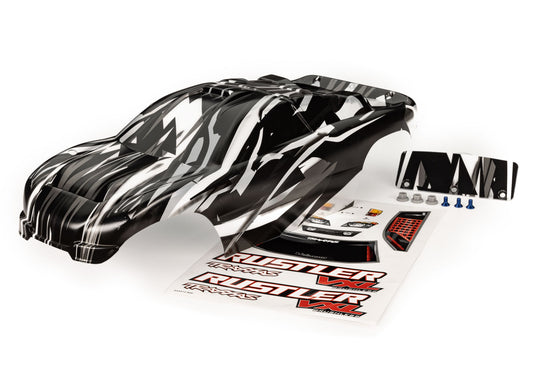

ProGraphix^® Painted Body
- Pre-painted body with applied decals
- Aggressive, aerodynamic body with rear wing
VXL-3s™ Waterproof Electronic Speed Control
- Three programmable drive profiles:
  - Sport Mode - Forward / Brake / Reverse
  - Race Mode - Forward / Brake
  - Training Mode^™- 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set^® one-button setup
- Large heat sink
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 4-9 cells (4.8 to 10.8 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
Velineon^® Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Low-maintenance design
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- 3500 kV
- Brilliant blue-anodized finish
Traxxas Stability Management^® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the vehicle
- Adjusts from off to 100% assistance from the transmitter

TQi™ 2.4 GHz High Output Radio System
- TQi 2-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- Patented waterproof receiver box

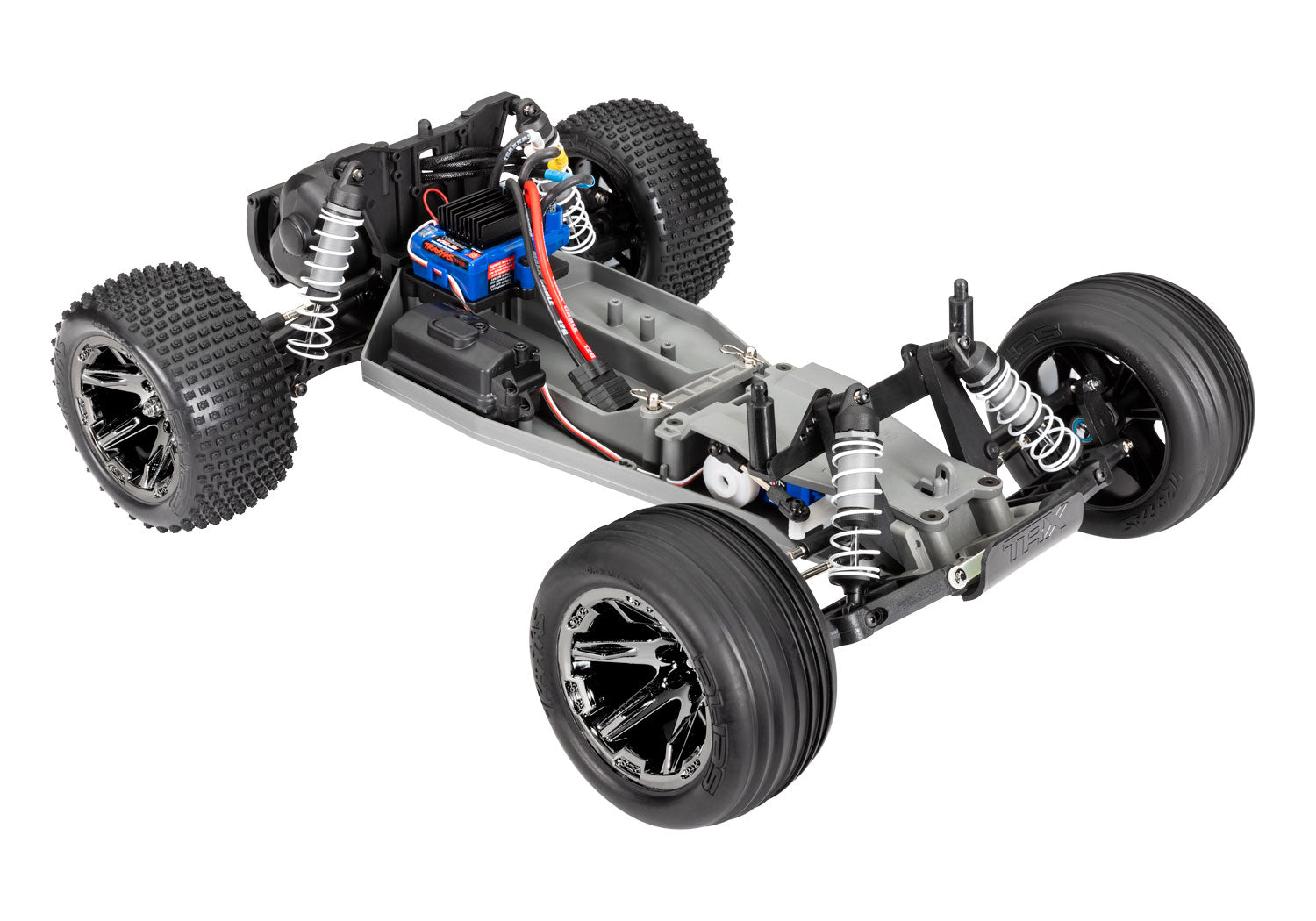

Tough Fiber-Composite Monocoque Chassis
- Wide, low-profile design for increased stability
- All electronics securely fastened to chassis
Steering
- Digital High-torque waterproof Traxxas 2075 steering servo
- High-performance bellcrank system minimizes bump steer
Suspension
- Adjustable steel turnbuckles
- Captured rod ends won't pop off

Magnum 272R^™ Transmission
- Redesigned heavy-duty low-CG case
- Fixed gear mesh
- High-strength steel gears
- Sealed bevel-gear differential
- Easy differential access
Driveline
- Torque-Control™ slipper clutch system
- Heavy-duty telescoping U-joint driveshafts and yokes
Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- White powder-coated springs
Wheels and Tires
- Pre-glued Alias^® step-pin rear tires and ribbed front tires with performance foam inserts
- 2.8″ Black-chrome All-Star™ wheels
Rubber-Sealed Ball Bearings
Precision Hex Hardware
Backed by Unparalleled Traxxas Support and Parts Availability
Requires Battery and Charger (Sold Separately)

Model Name:	RUSTLER VXL W/ MAGNUM 272R
Model Type:	Stadium Trucks
Model Speed:	70+ mph with 3s LiPo battery and optional 31-tooth pinion gear (sold separately)
Model Skill Level:	2
Scale:	1/10
Weight:	3.73 pounds (1.69 kg)
Length:	17.5" (445 mm)
Width:	12.25 inches (311 mm)
Front Track:	12.25 inches (311 mm)
Rear Track:	12.25 inches (311 mm)

Height:	7 inches (178 mm)
Wheelbase:	11.38 inches (289 mm)
Drivetrain:	2WD
Transmission:	Heavy-Duty Magnum 272R™
Differential Type:	Sealed bevel-gear differential
Gear Ratio (Internal):	2.72 (final drive: 9.05)
Gear Pitch:	48 pitch
Servo(s):	2075 digital high-torque waterproof
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with 6533 receiver
Battery Compartment Specs:	166 mm X 47.5 mm X 28 mm

Motor Name:	Velineon® 3500
Motor Type:	Sensorless brushless
Motor Weight:	9.24 ounces (262 g)
Motor Length:	3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length
Motor Diameter:	1.41 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	3.5 mm bullet

ESC Name:	VXL-3s™ electronic speed control
ESC Type:	Brushless
ESC Case Size:	1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)
ESC Weight:	3.17 ounces (90 g)
Motor Connectors:	3.5 mm bullet
Battery Connectors:	Traxxas High-Current Connector
ESC Power Wire:	12 gauge Maxx® Cable
