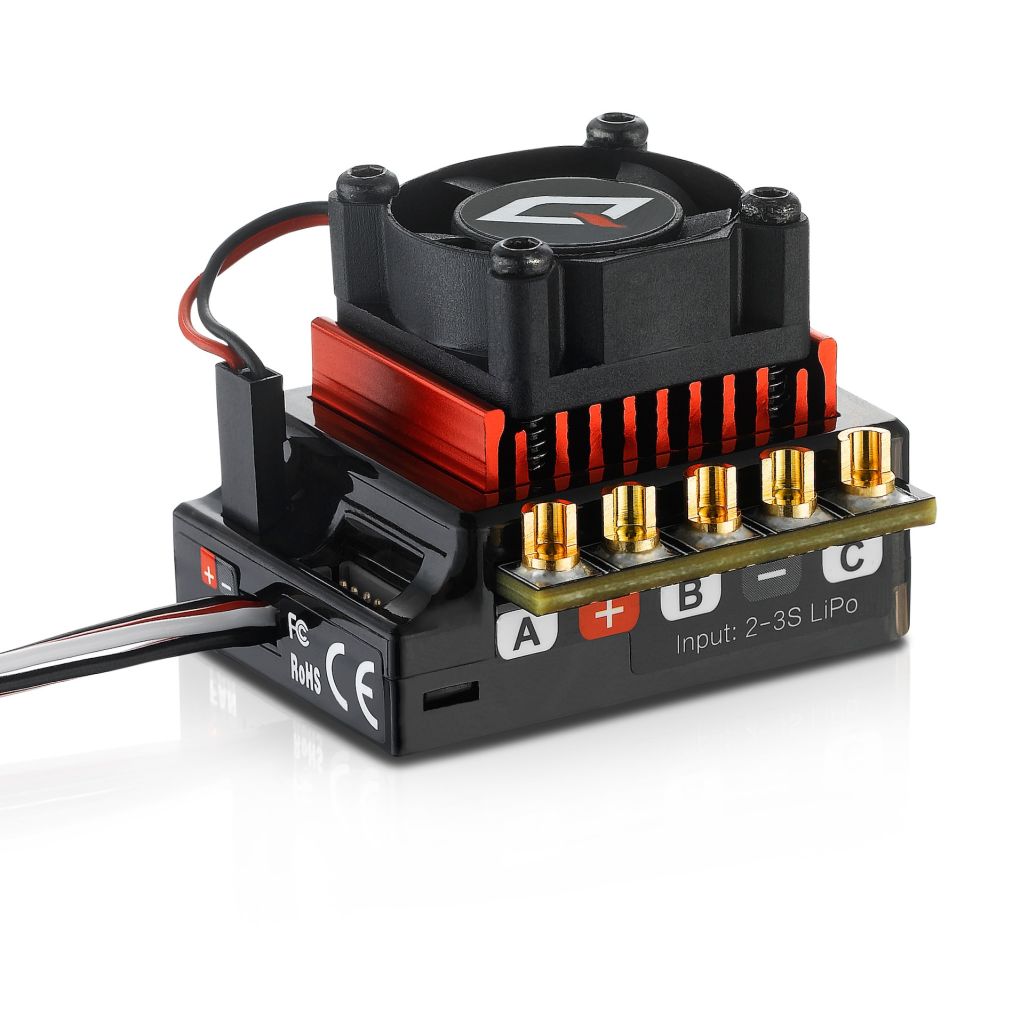

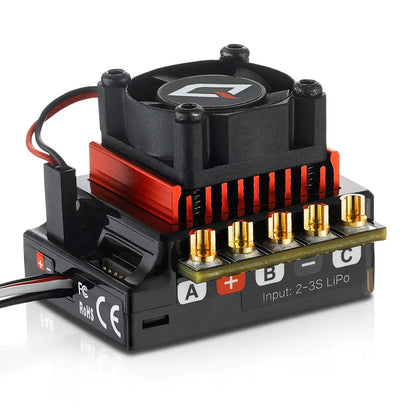

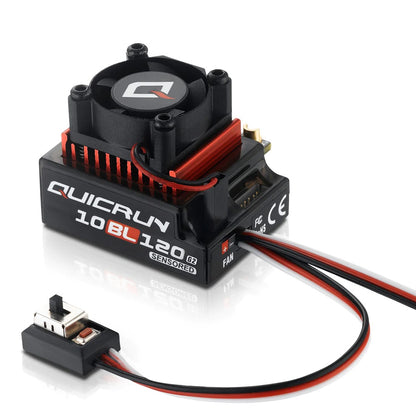

Quicrun 10BL120 Sensored G2 ESC

Note:
The recommended T counts are only applicable with the standard 3650(540) size 2 pole motors and the timing of esc is 0.
This ESC is NOT designed for a racing application.

• For 1/10, 1/12 Car general use.
• High performance but low price, users can own this reliable ESC at an affordable cost.
• Sensored programmable electric speed controller for a brushless motor.
• Compatible with LCD program box PRO, LED Program Card (purchase separately)

• Cont./Peak Current: 120A / 760A
• Motor Type: Sensored/Sensorless Brushless Motor
• Applications: 1/10 Touring, Buggy, Drift
• Motor Limit: 2S LiPo: >4.5T; 3S LiPo >10.5T 3650 Size Motor
• LiPo Cells: 2-3S LiPo
• BEC Output: 6V/7.4V @ 4A (Switch-mode)
• Cooling Fan: Powered by built-in BEC
• Size/Weight: 44(L) x 36.8(W) x 32.3(H) / 101.5g(W/Wires)
• Programming Port: Throttle Cable
