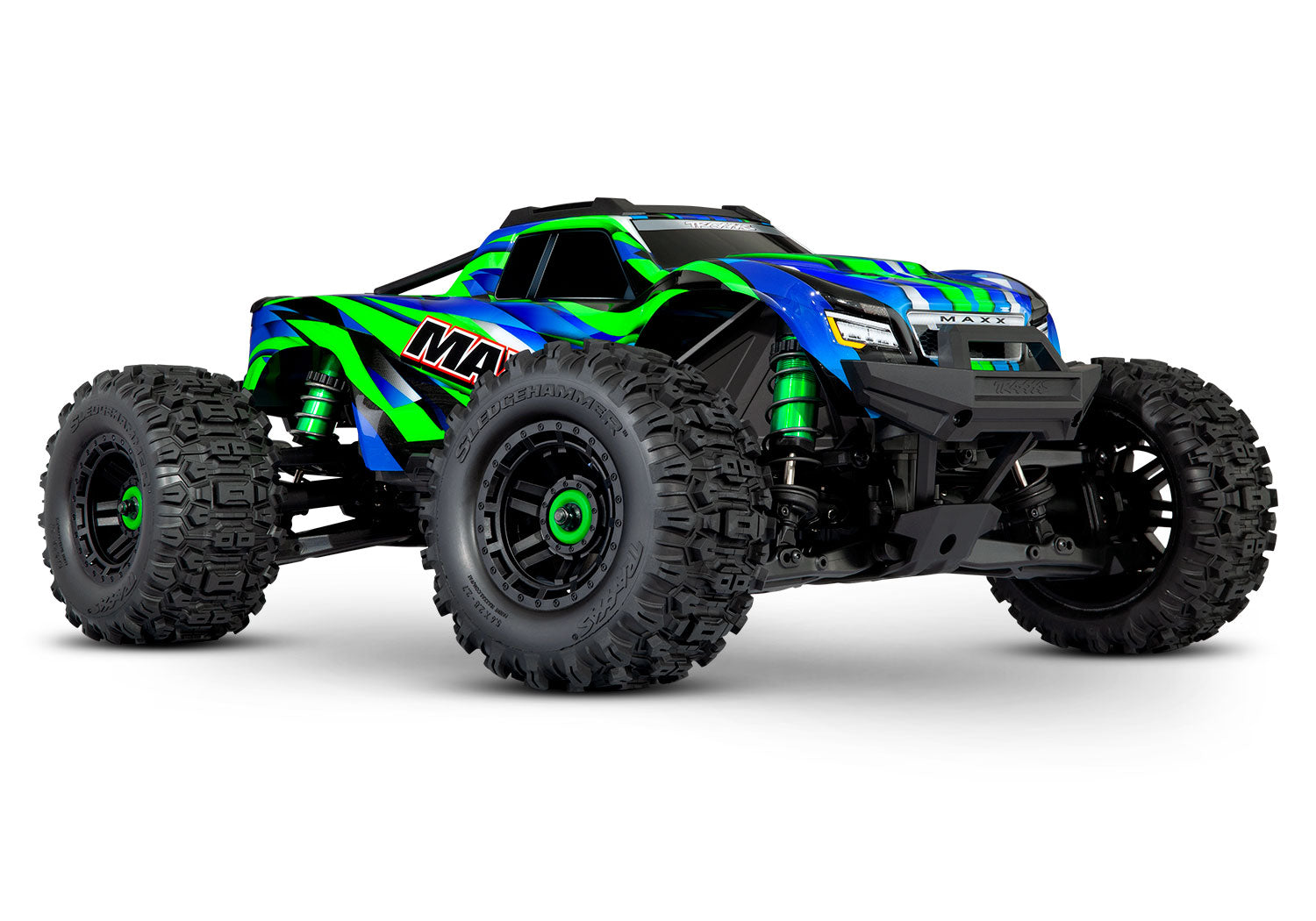

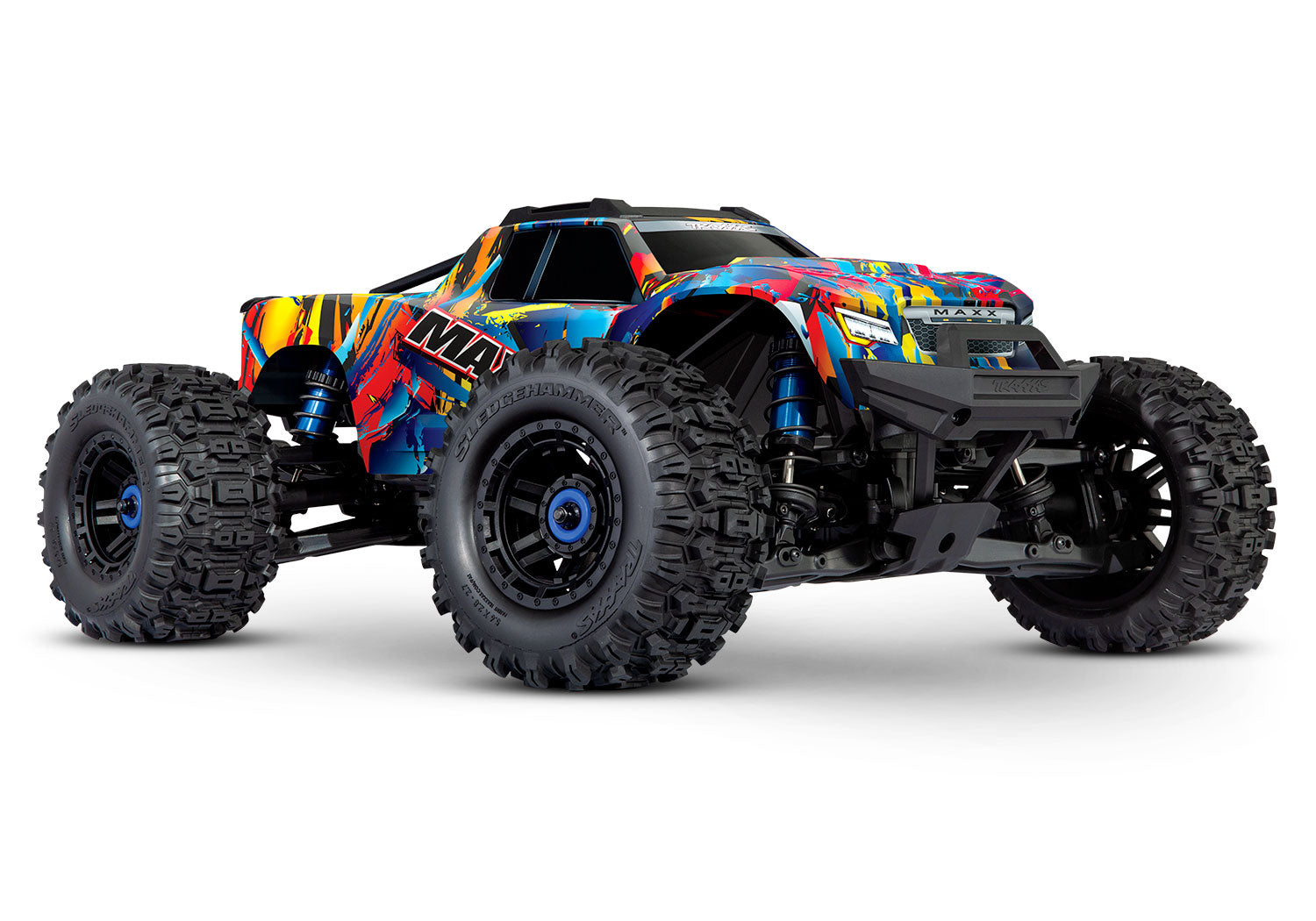

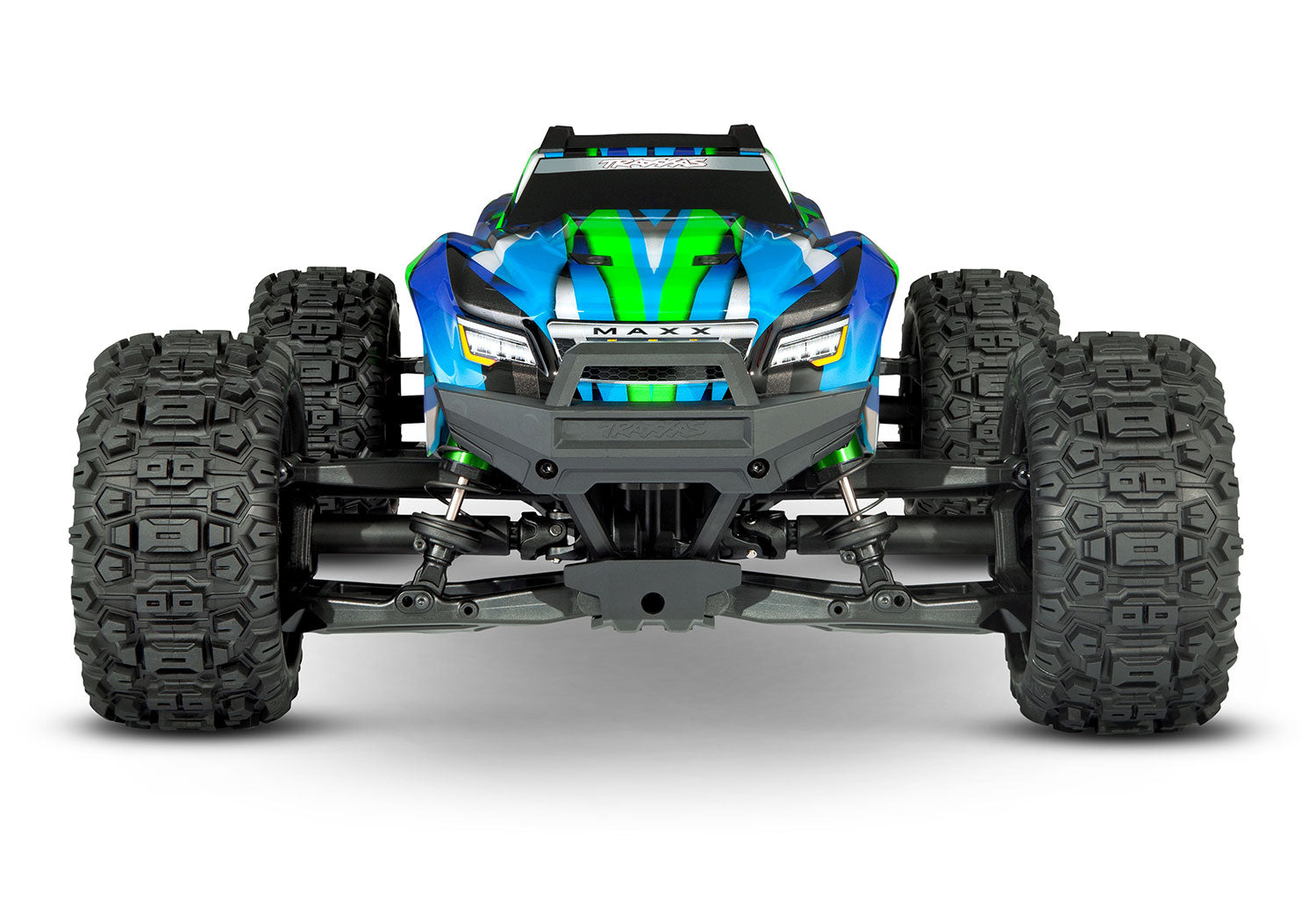

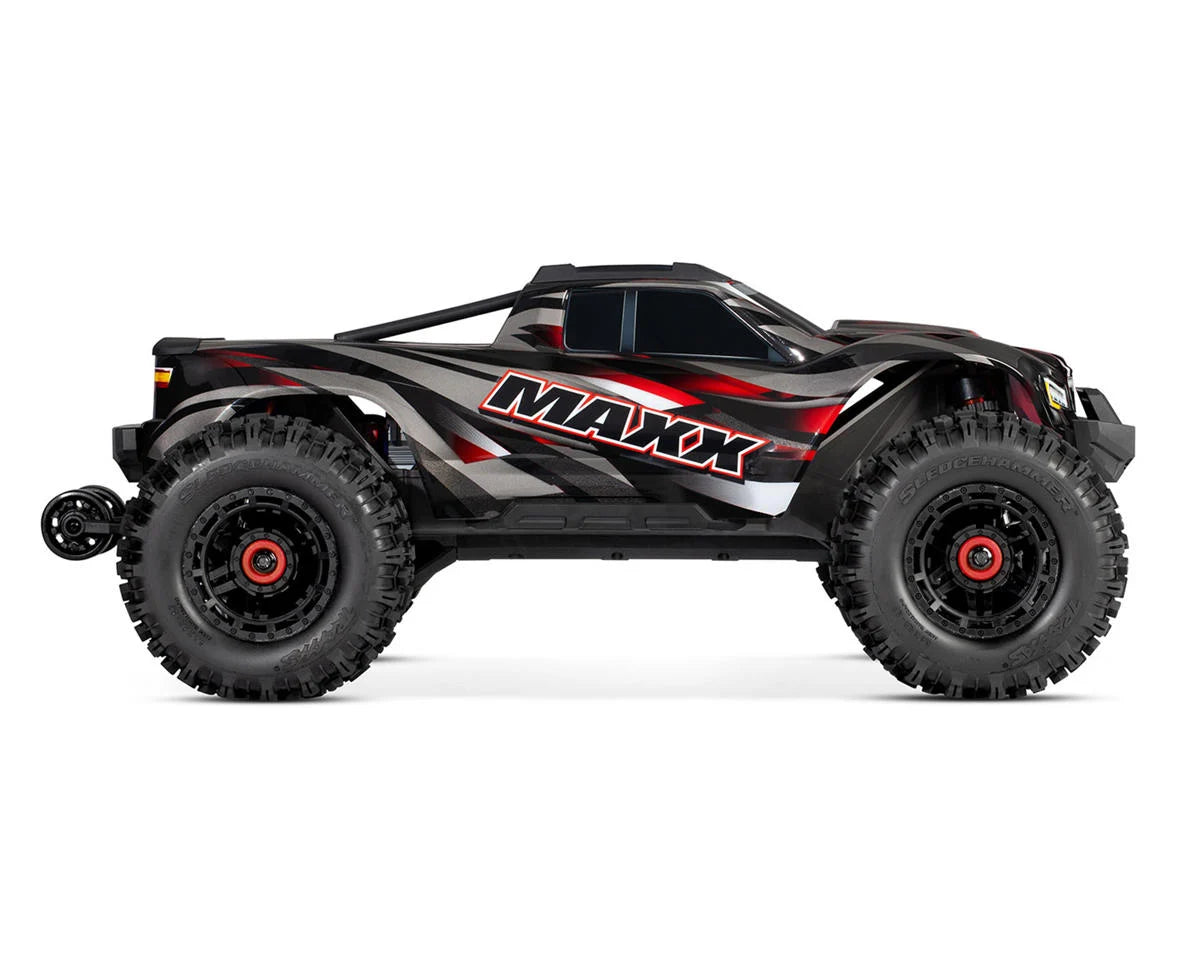

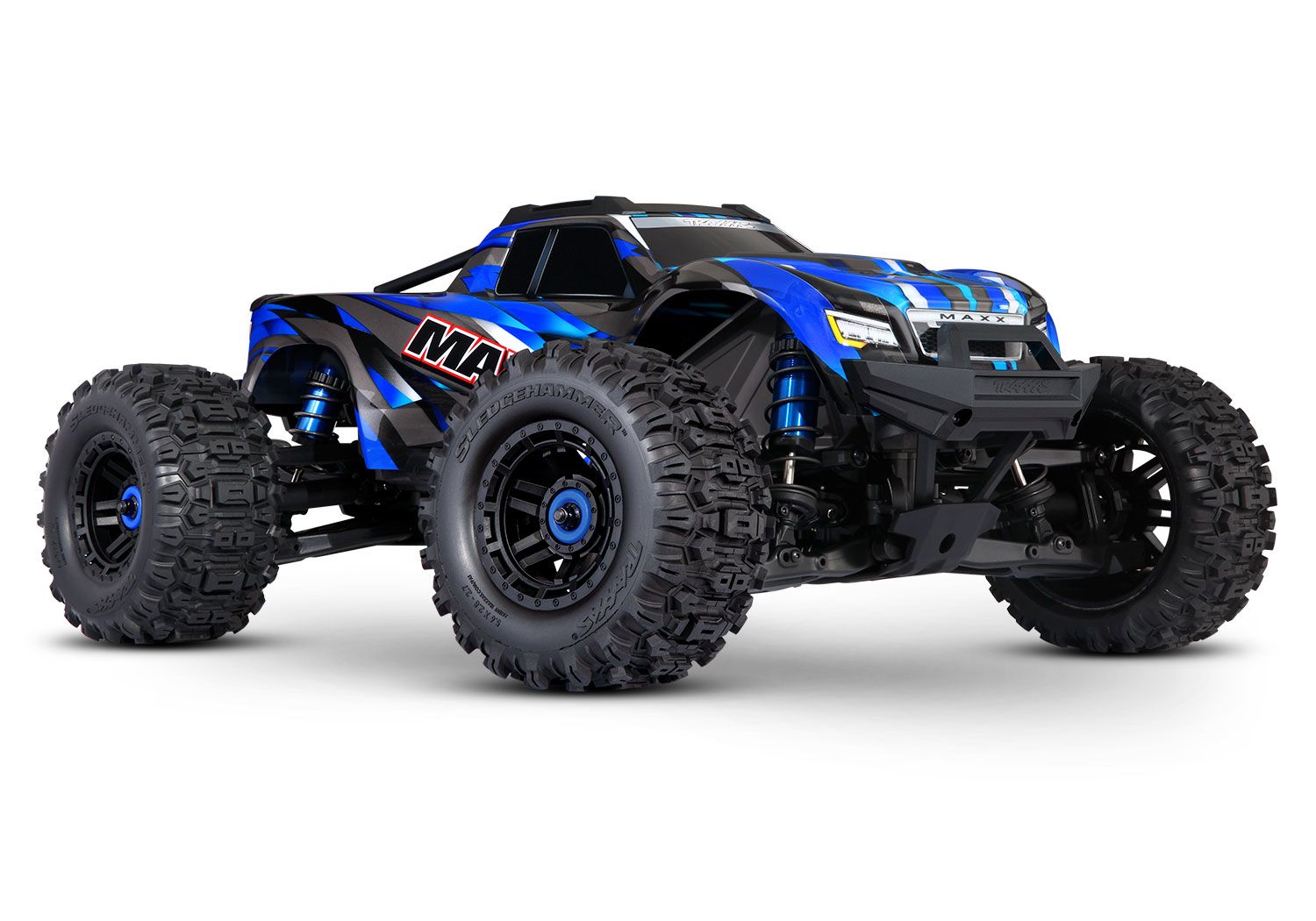

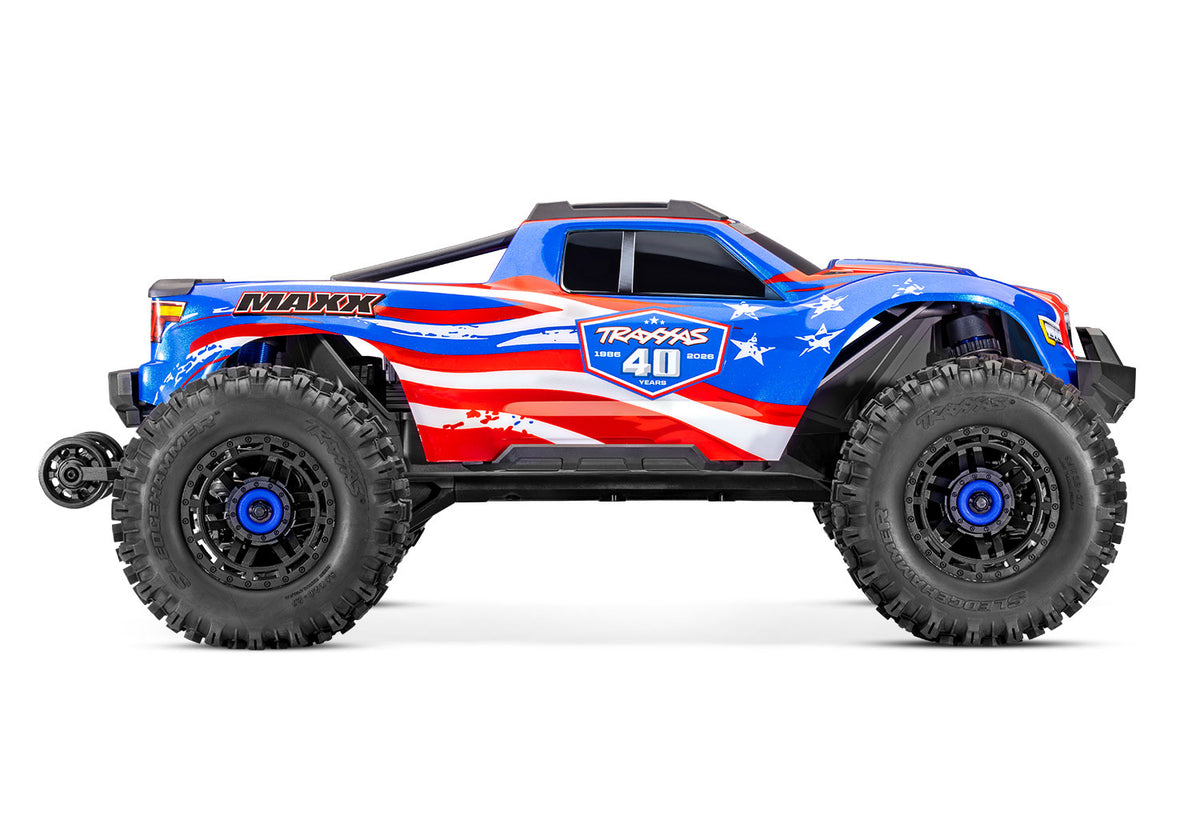

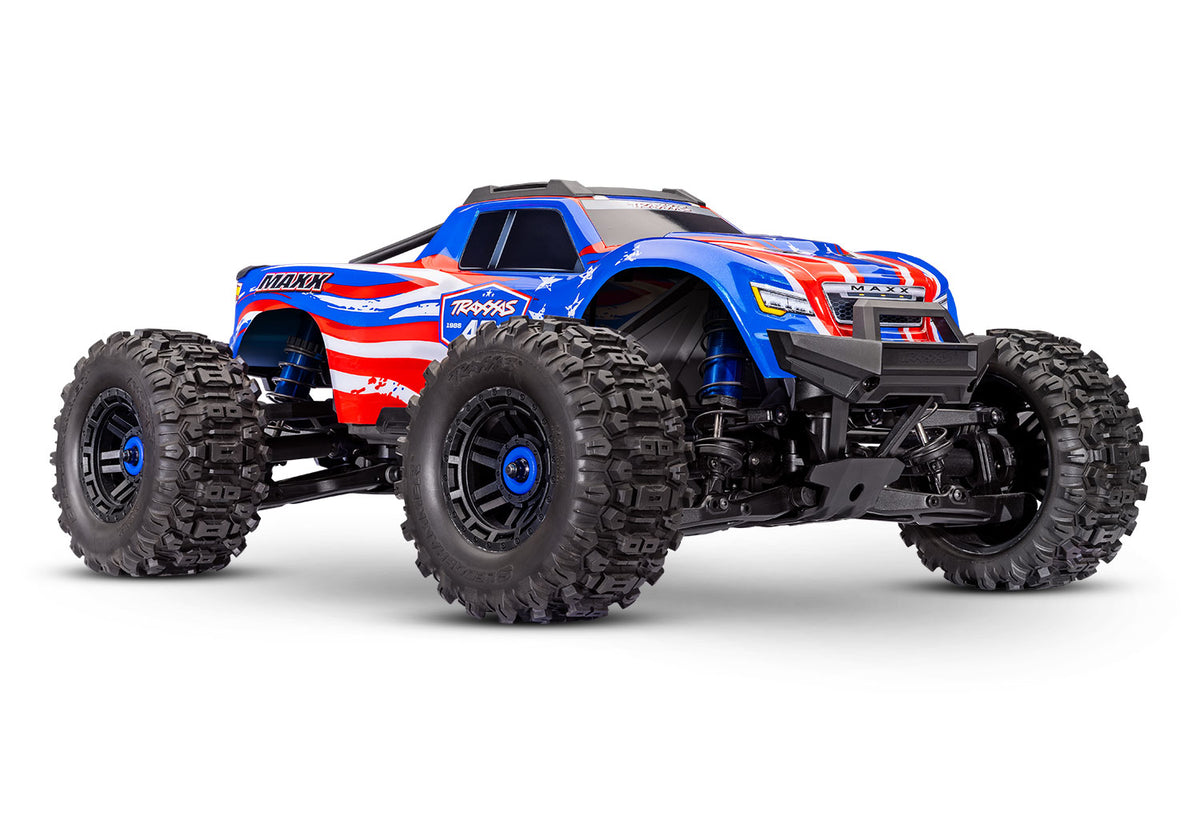

Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck w/TQi 2.4GHz Radio & TSM
Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck w/TQi 2.4GHz Radio & TSM
You might also need...
SKU:89086-4
Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck w/TQi 2.4GHz Radio & TSM
Included:
-
(1) Traxxas Maxx with WideMaxx and Traxxas 540XL brushless motor
-
(1) Quick Start Guide
-
(1) TQi 2.4GHz radio system
-
High quality maintenance tools
Needed to Complete:
-

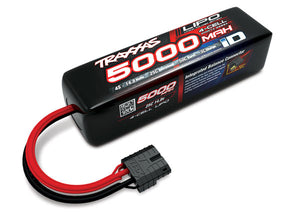

(1) 3-4S LiPo Battery with Traxxas ID connector
-
(1) Compatible Traxxas LiPo Balance Charger
-
(4) AA Batteries
- New Features
- WideMaxx® from the Start
- Longer chassis accommodates 6700 mAh 4-cell LiPo used in the X-Maxx
- Sledgehammer® Tires
- Six new colors

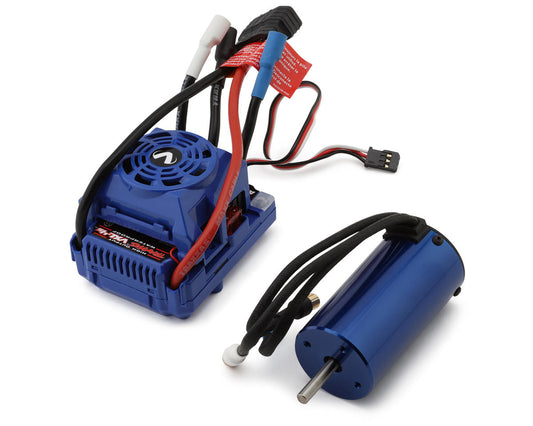

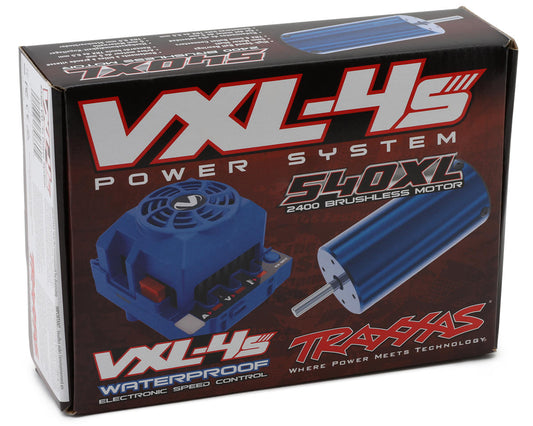

- VXL-4s™ Waterproof Electronic Speed Control
- 3s–4s LiPo compatible
- Built-in cooling fan
- Real-time telemetry via Traxxas Link
- Machined heat sinks
- 10-gauge silicone wire
- Integrated protection circuits
- LED status lights
- Velineon® 540XL Brushless Motor
- Long format brushless motor
- 4-pole 2400 kV
- 5 mm output shaft
- Aluminum heat sink
- Cooling fan
- 55+ MPH out of the box using single 4s LiPo battery (sold separately)
- 60+ MPH with optional gearing and single 4s LiPo battery (sold separately)
- Traxxas Stability Management®
- Helps prevents spinouts and loss of control
- Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz High Output Radio System
- Traxxas Link enabled
- 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
- Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Telemetry-ready 5-channel micro receiver
- Clipless Body Mount System
- Quick one-hand installation and removal
- Uses pivoting rear latch mechanism
- Eliminates body posts and clips
- Reinforced for extra protection against tearing
- Drivetrain
- Full-time shaft-driven 4-wheel drive
- Torque-Biasing Center Drive™ absorbs shocks and distributes power
- 17 mm keyed wheel hex with 5 mm nut
- Sealed, silicone fluid-filled diffs with large module ring and pinion gears
- Splined outdrives attached with external thru-bolt method

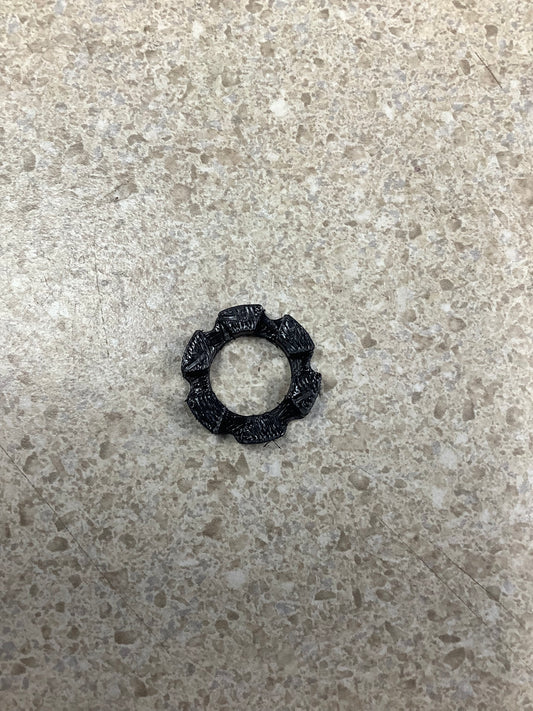

- Heavy-duty Cush Drive™
- Extreme-duty telescoping driveshafts
- Splined aluminum center driveshaft
- Secure Motor Mounting System
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
- Full-length motor cradle

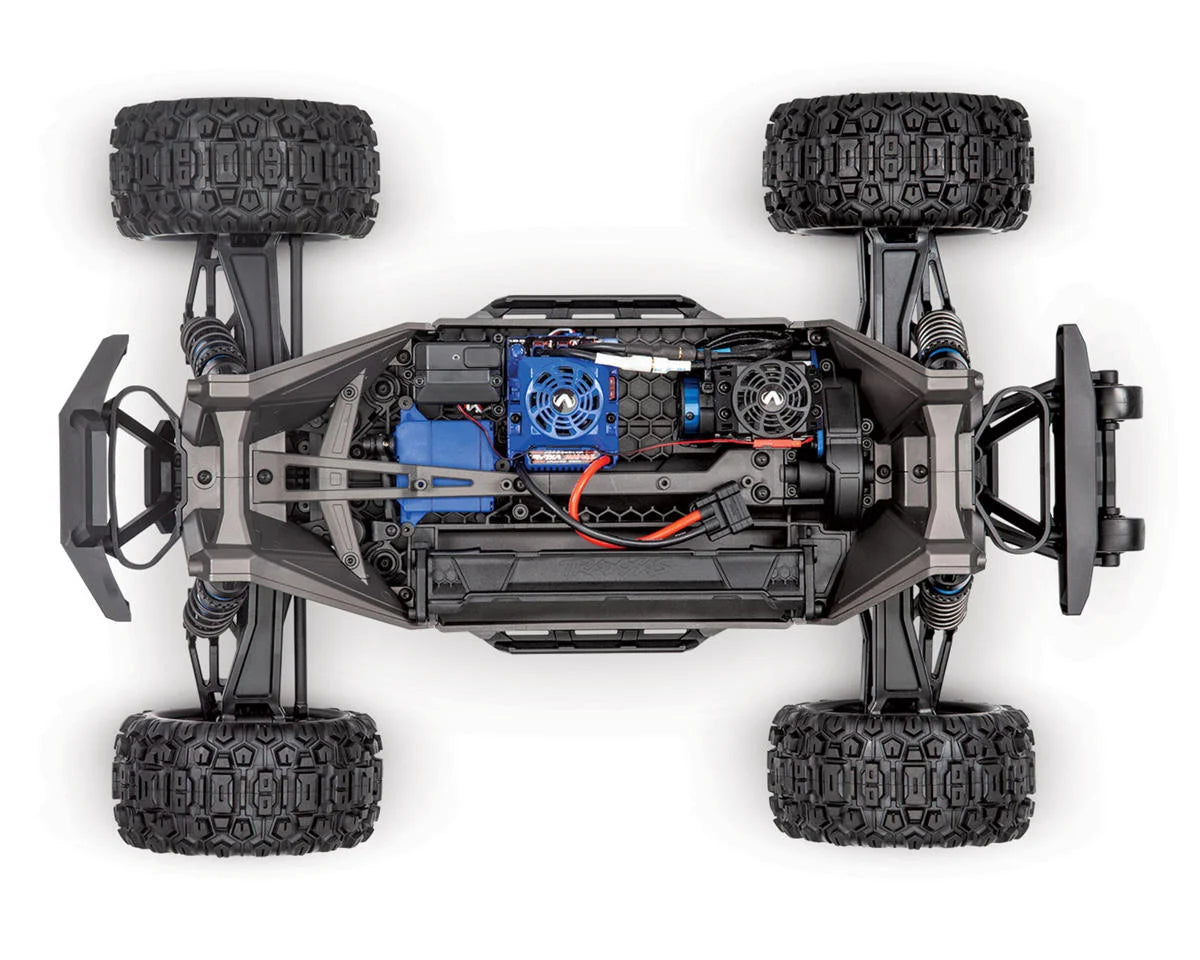

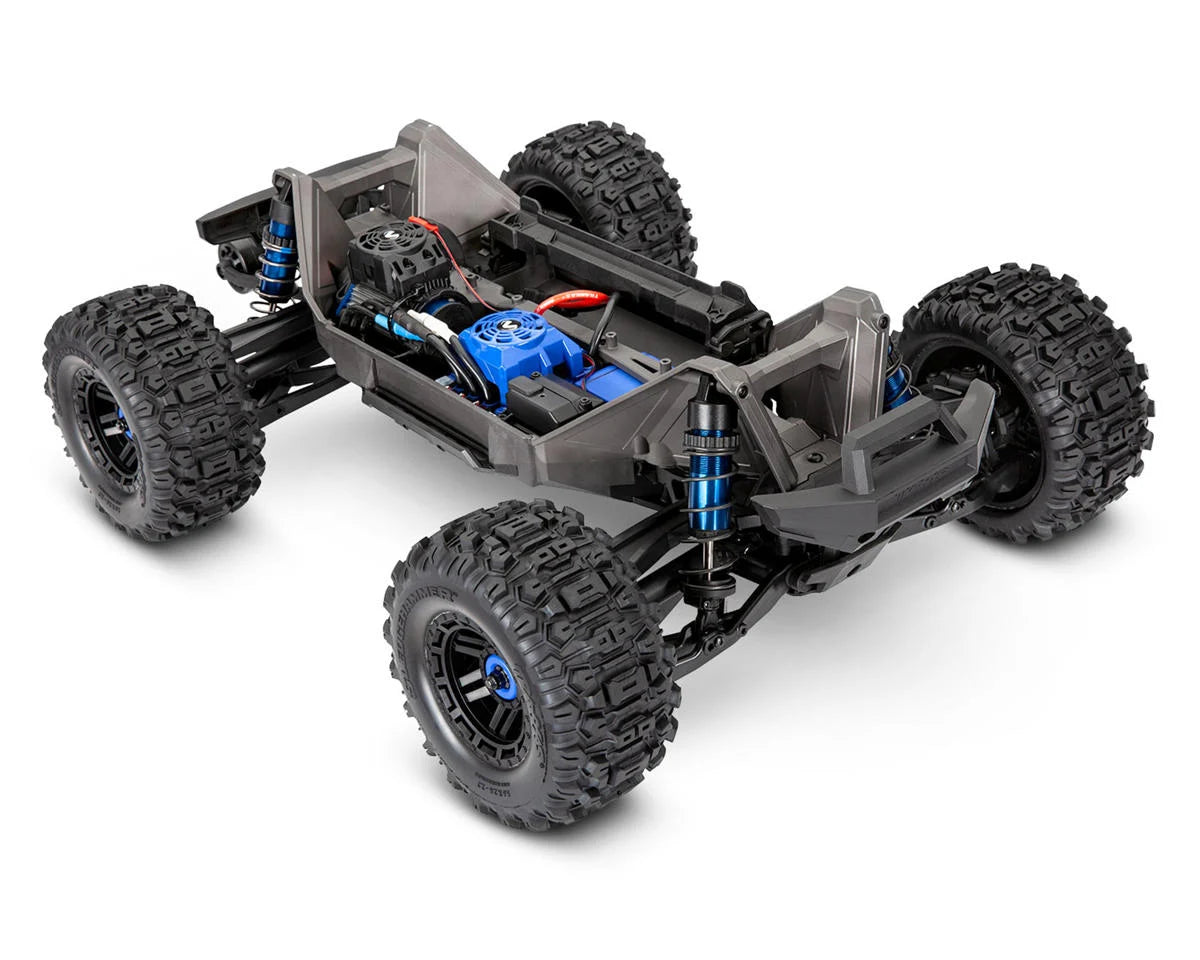

- New Modular Composite Chassis
- Extended modular chassis design interlocks with front and rear bulkheads
- Absorbs and distributes impact energy
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt and grit
- Easy Battery Access
- Extended battery tray accepts 6700 mAh 4-cell LiPo battery
- Battery is protected deep in the chassis
- Battery hold-downs pivot for easy access
- More secure than conventional retention systems

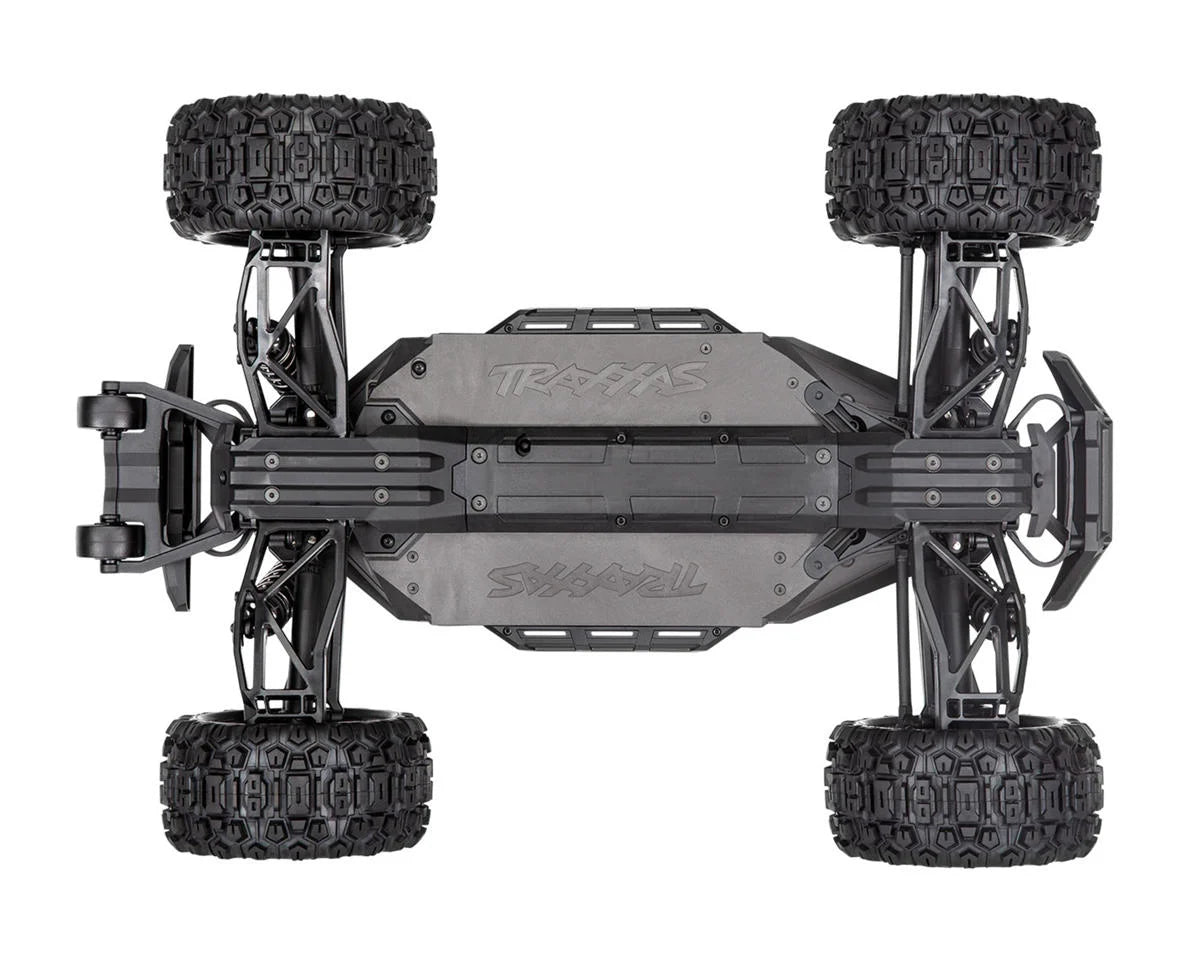

- Bumpers
- Tough energy absorbing front and rear bumpers
- Lower front and rear skids for impact and abrasion resistance
- Integrated nerf bars for side impact resistance
- Wheelie bar with integrated carry handle

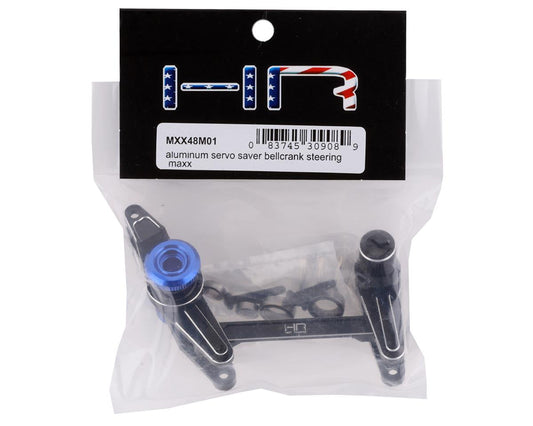

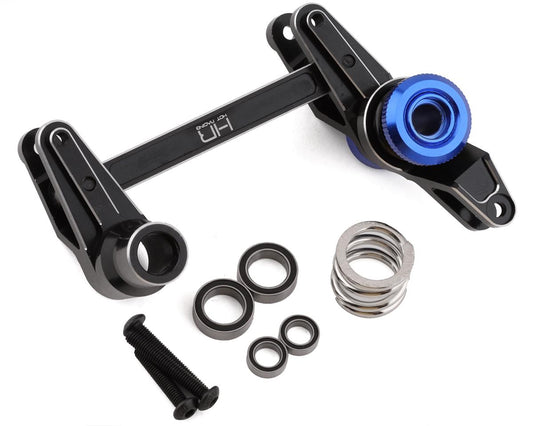

- Heavy-Duty Steering Bell Cranks and Servo Saver
- 285 oz-in of torque
- 0.18 sec transit speed
- Large-scale high-output steering servo
- Triangulated mounting system to fully support case
- Heavy-duty double-shear bellcranks
- Suspension

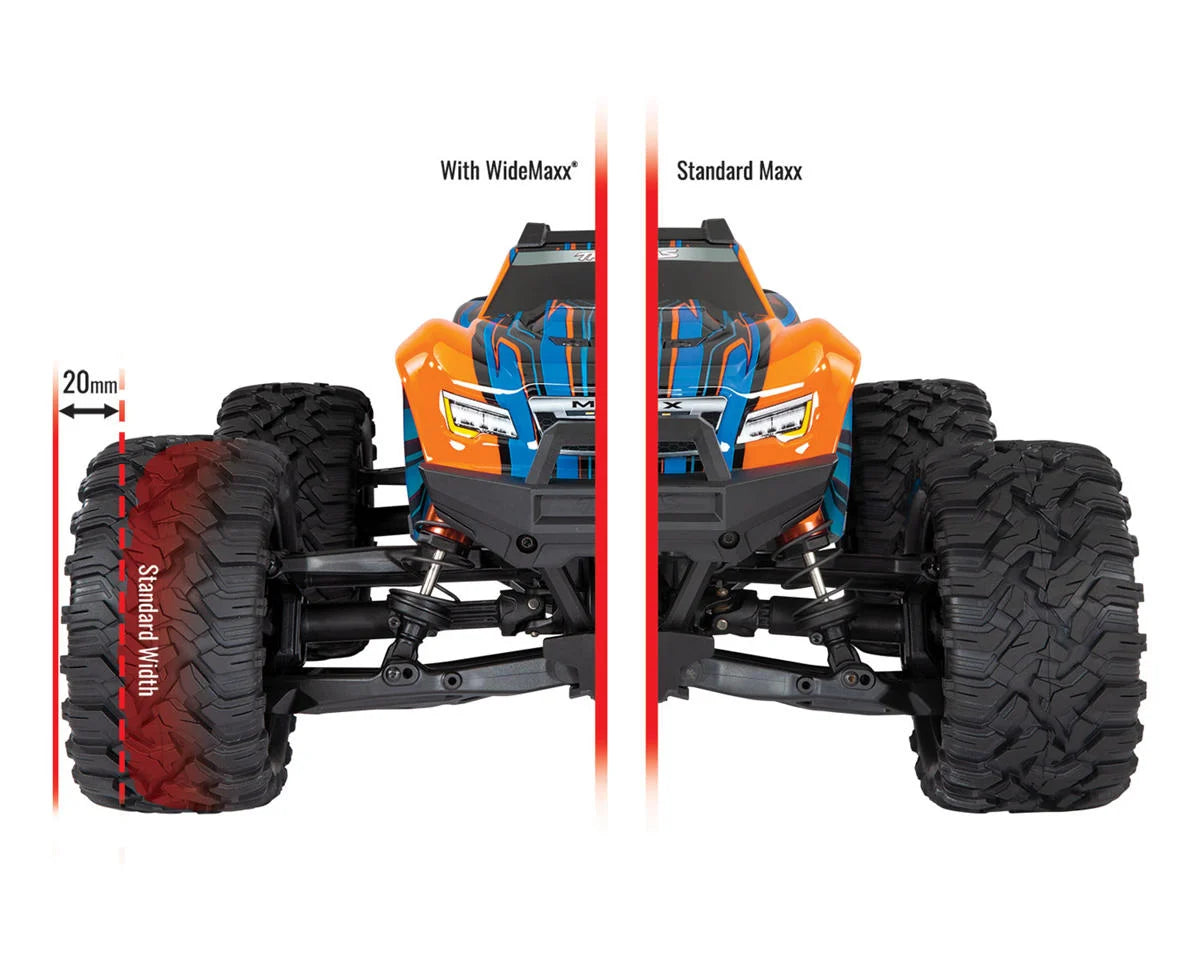

- WideMaxx® double-shear suspension arms
- 1.57″ (40 mm) wider for improved handling
- Tough new composite formula resists impact damage, even in cold weather
- Engineered to optimize suspension travel and steering angles
- All critical suspension points have double shear strength
- Steel pivot balls
- 4 mm machined pivot balls
- C-hub and steering block geometry maximizes steering angle
- Fixed, high-strength camber and toe links
- Steel upper and lower tie bars
- Full contact sealed bearings used in exposed locations
- GT-Maxx® Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- Large-diameter damper shaft
- Lower seal cartridge with dual X-rings
- Adjustable upper spring retainer
- Plastic shock caps with pivot balls
- Lower spring perches bolted on
- Wheels/Tires
- Tough 2.8″ wheels with keyed 17 mm hex receptor
- Sledgehammer® extreme tires for sure-footed traction
- 1-piece foam inserts
- Pre-glued and ready for action
- TSM® rated
Model Specs
Model Name: | Maxx with WideMAXX |
---|---|
Model Type: | Monster Truck |
Model Speed: | 60+ mph with 4s LiPo battery and optional gearing |
Model Skill Level: | 4 |
Scale: | 1/10 |
Weight: | 10.40 lbs (4.7 kg) |
Length: | 22.50 inches (572 mm) |
Width: | 15.95 inches (405 mm) |
Front Track: | 15.95 inches (405 mm) |
Rear Track: | 15.95 inches (405 mm) |
Height: | 9.12 inches (232 mm) |
Wheelbase: | 13.85 inches (352 mm) |
---|---|
Center Ground Clearance: | 2.6 inches (67 mm) |
Drivetrain: | Shaft-driven 4WD |
Transmission: | Single speed |
Differential Type: | Sealed, hardened steel bevel, limited slip |
Gear Ratio (Internal): | 12.37:1 |
Gear Pitch: | 1.0 metric pitch |
Servo(s): | 2090 digital high-torque waterproof (285 oz-in) |
Radio System: | TQi™ 2.4 GHz transmitter with TSM® receiver |
Battery Compartment Specs: | 186 mm X 48 mm X 43 mm |
Motor Specs
Motor Name: | 540XL 2400 kV |
---|---|
Motor Type: | 2400 kV sensorless brushless |
Motor Weight: | 317 g (11.1 8oz) |
Motor Length: | 3.58 inches (91 mm) |
Motor Diameter: | 1.41 inches (36 mm) |
Motor Shaft Size: | 5 mm |
Motor Connector Type: | 6.5 mm bullet connectors |
The Traxxas Maxx 1/10 Brushless RTR 4WD Monster Truck with WideMaxx Kit is the next level in ultimate basher chassis. This special chassis comes equipped with the WideMaxx suspension kit from the factory for greater stability.
Traxxas has totally revamped the Maxx chassis for this release. Starting on the four corners, Traxxas equipped this truck with the Sledgehammer tires. These tires feature an open-block design that clears away mud allowing for unreal traction. Moving to the suspension, Traxxas then equipped the truck with the WideMaxx suspension set. This extends the width over 1.5 inches improving stability. To further add to the stability, a longer chassis is used allowing the use of larger and more powerful batteries. All of these features come together to make the Traxxas Maxx an extremely durable and stable chassis. With six colors to choose from, the Traxxas Maxx with WideMaxx will be able to exceed expectations.
Features:
- Refined shock tower design
- Full length motor cradle
- Updated wheels and tires
- Clipless Body Mount System
- Quick one-hand installation and removal
- Waterproof
- WideMaxx double-shear suspension arms
- 1.57” (40 mm) wider for improved handling
- Tough composite formula resists impact damage, even in cold weather
- Modular chassis design
- GT-Maxx Aluminum Shocks
- 60+ MPH with optional gearing and single 4S LiPo battery (sold separately)
- Full contact sealed bearings
- Torque-biasing center drive
- Easy Battery Access
- Extended battery tray accepts Traxxas’ 6700mAh 4-cell LiPo battery
- Aluminum splined driveshaft
- Steel gear differentials
- Extreme-duty telescoping driveshafts
Specifications:
Share
Accessories for this product...
-
Auto-Detectable Temperature Sensor
Regular price $14.00 USDRegular priceUnit price / per -

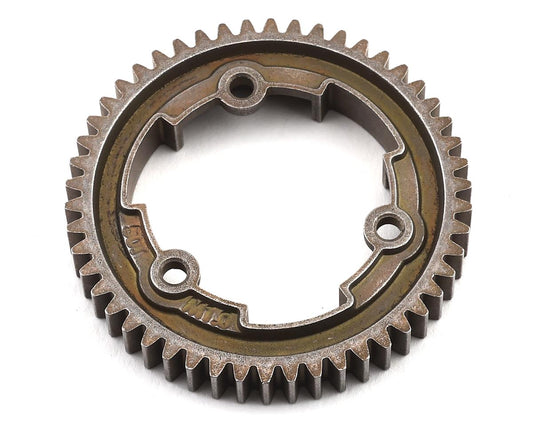

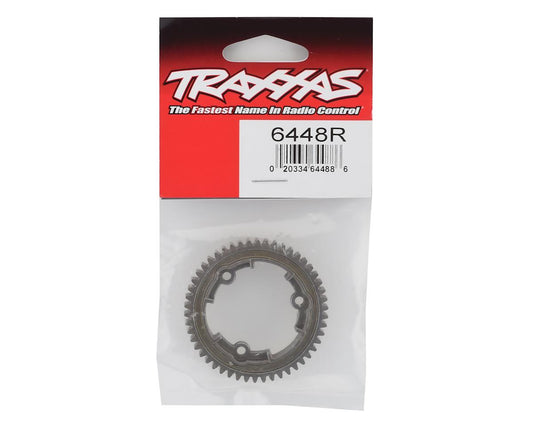

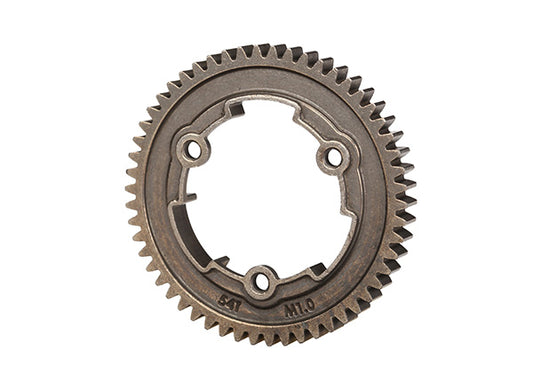

X-Maxx/XRT Mod 1 Steel Spur Gear (54T)
Regular price $18.00 USDRegular priceUnit price / per -

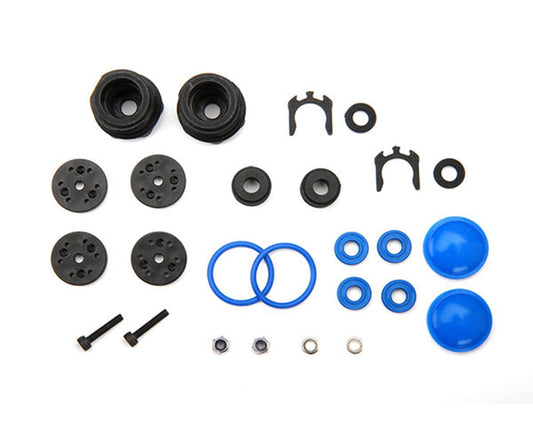

GT-Maxx Shock Rebuild Kit
Regular price $8.00 USDRegular priceUnit price / per -

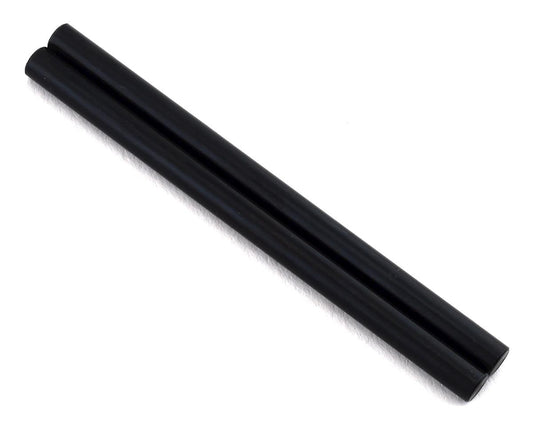

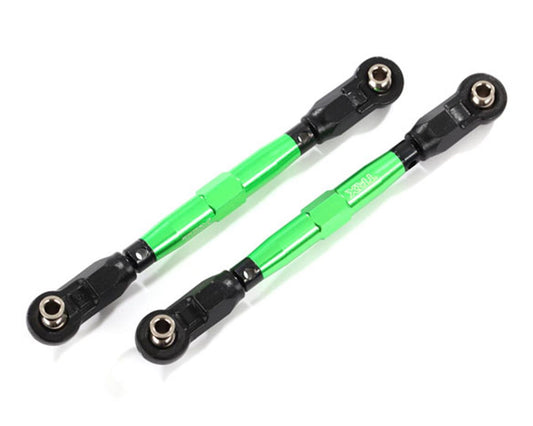

TOE LINKS FRONT TUBES
Regular price $39.99 USDRegular priceUnit price / per -

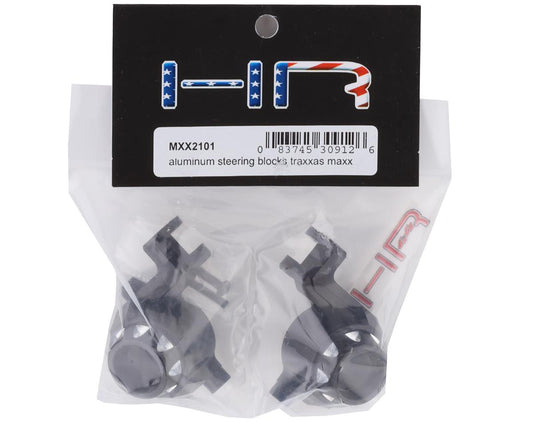

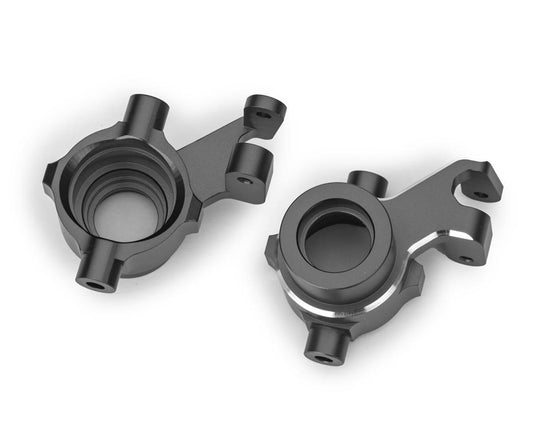

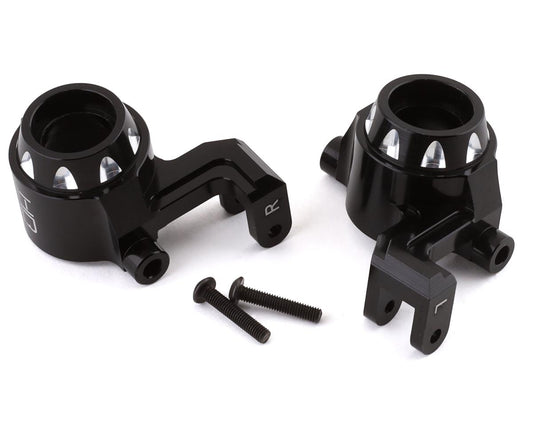

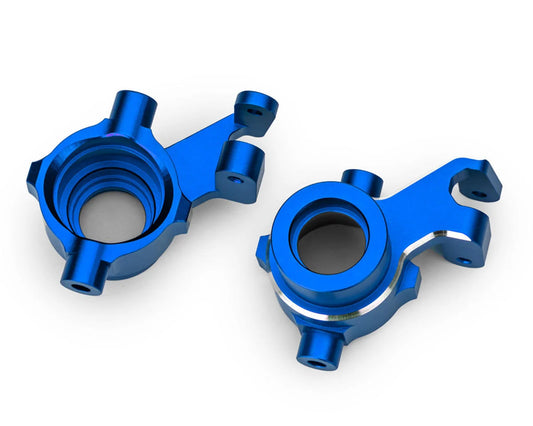

Maxx Aluminum Steering Blocks
Regular price $49.95 USDRegular priceUnit price / per -

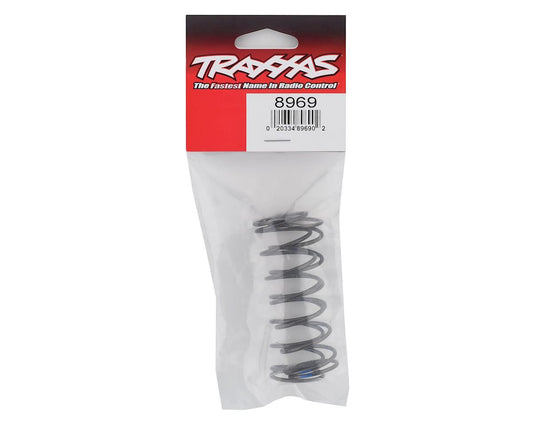

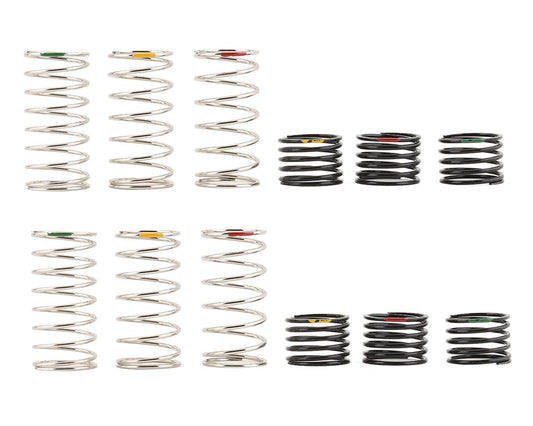

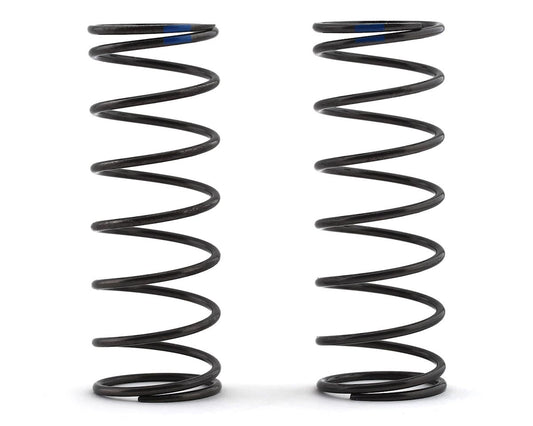

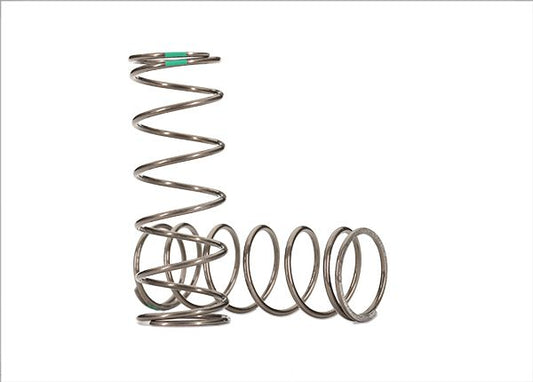

GT-Maxx Shock Springs (2) (1.725 Rate)
Regular price $8.00 USDRegular priceUnit price / per -

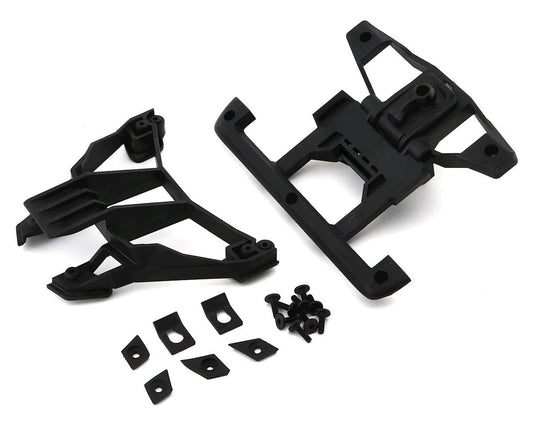

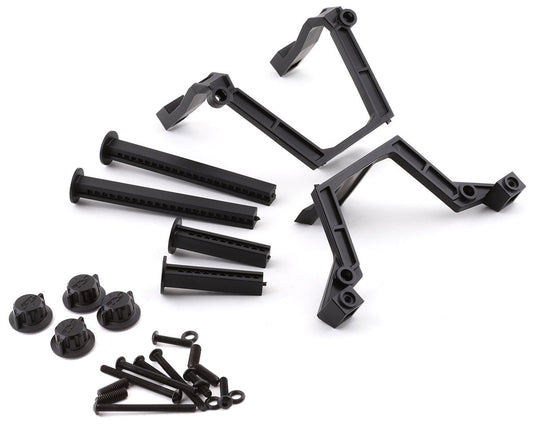

Maxx Body Mount Set
Regular price $18.00 USDRegular priceUnit price / per -

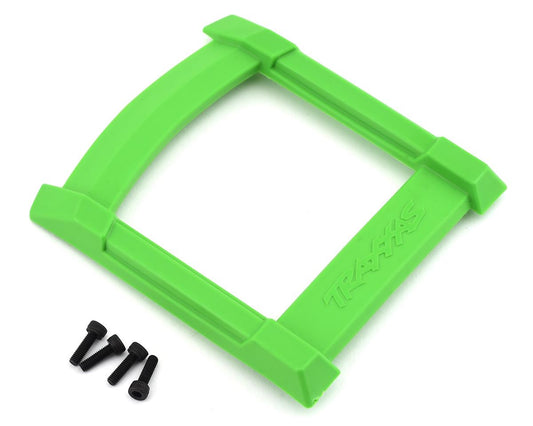

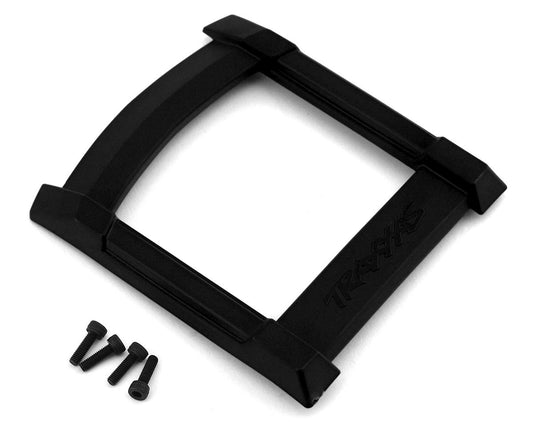

Maxx Roof Skid Plate
Regular price $6.00 USDRegular priceUnit price / per -

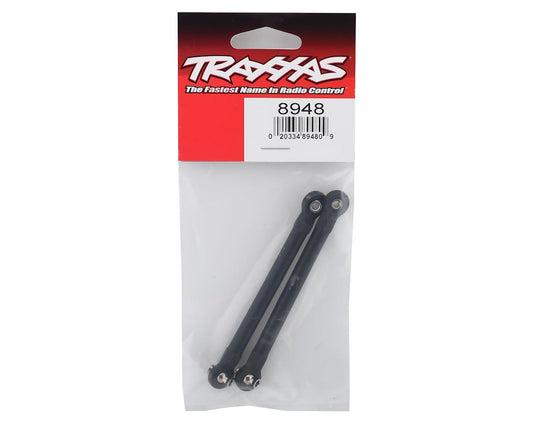

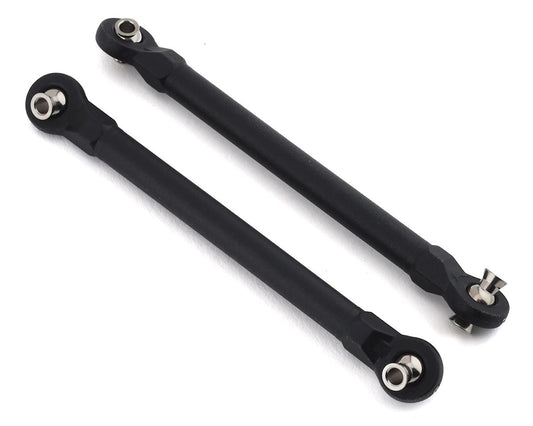

Maxx Molded Toe Links (Black) (2) (100mm)
Regular price $6.50 USDRegular priceUnit price / per -

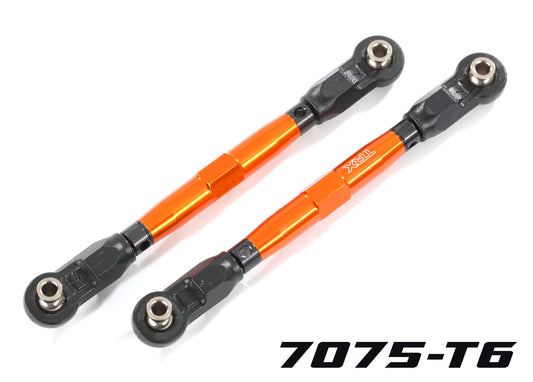

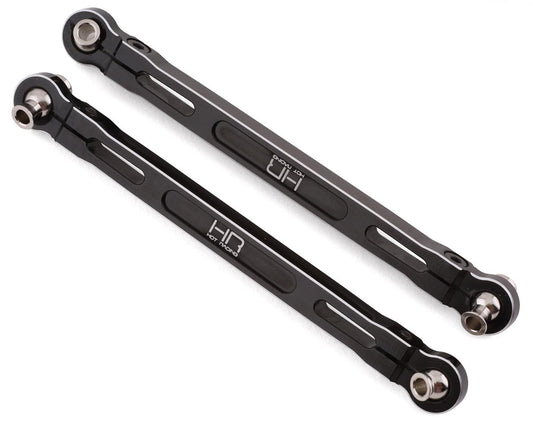

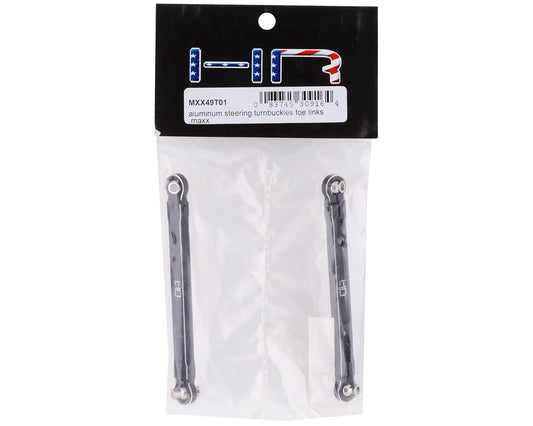

Maxx v1 Aluminum Steering Toe Links (Black) (2)
Regular price $32.99 USDRegular priceUnit price / per -

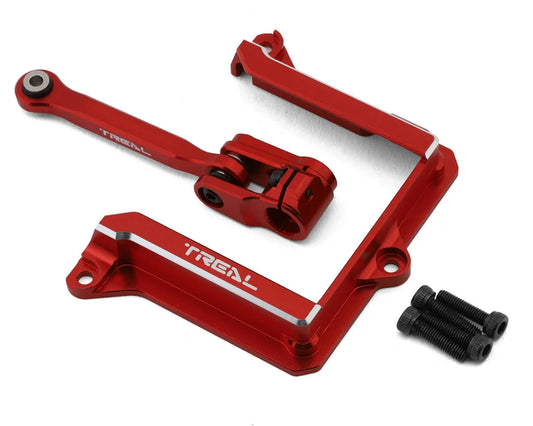

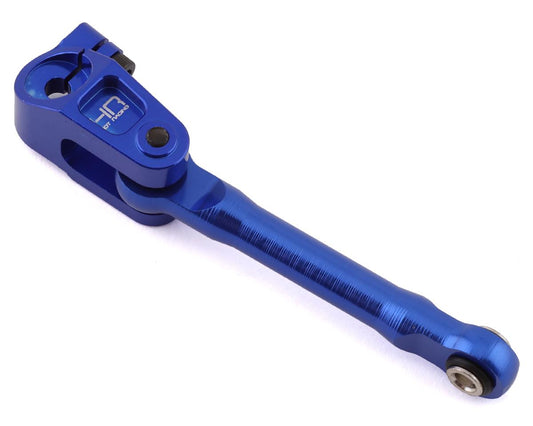

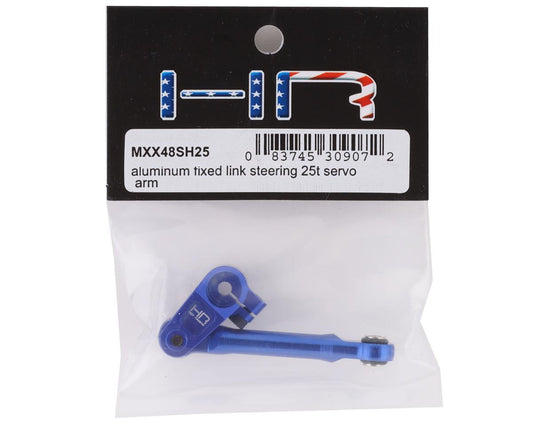

Maxx Aluminum Fixed Steering Link w/25T Servo Arm
Regular price $23.99 USDRegular priceUnit price / per -

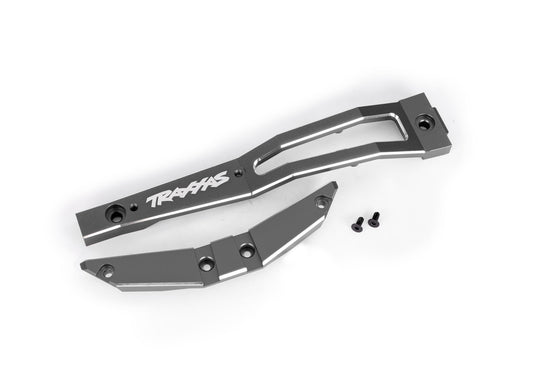

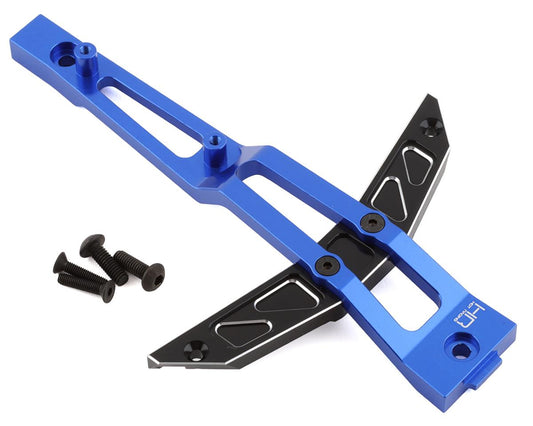

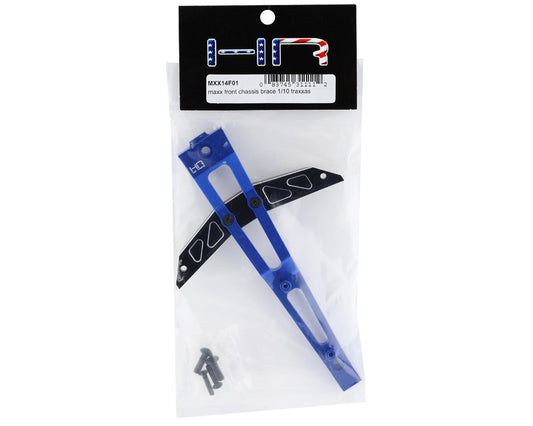

Maxx Aluminum Front Chassis Brace (Blue)
Regular price $43.88 USDRegular priceUnit price / per -

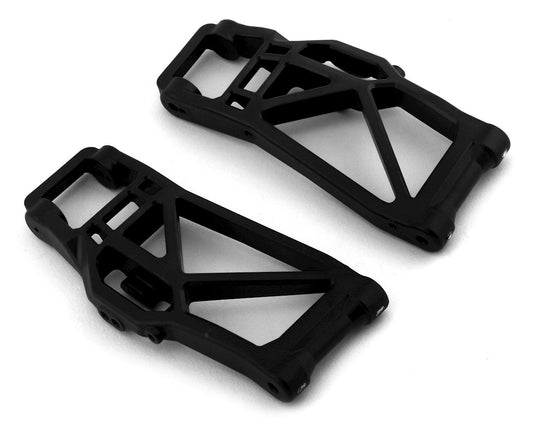

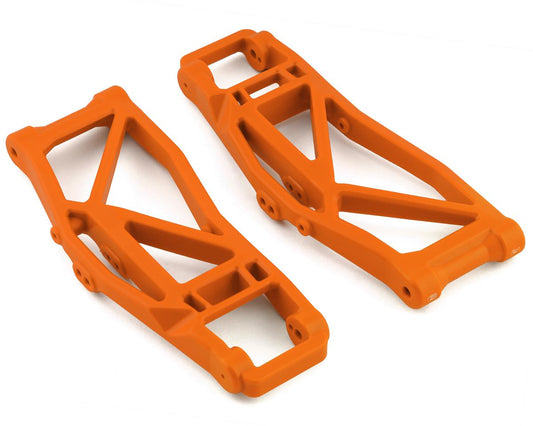

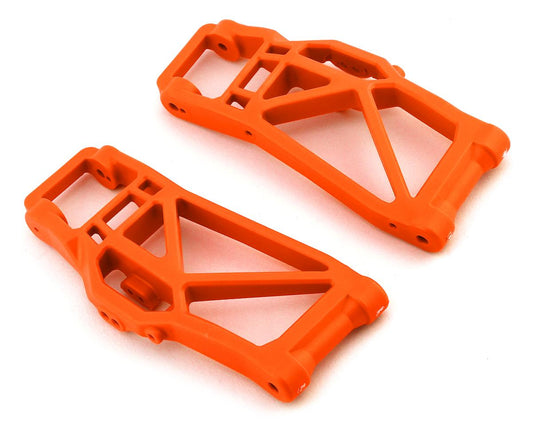

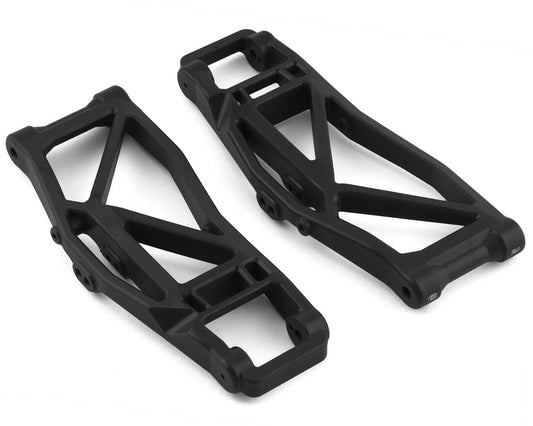

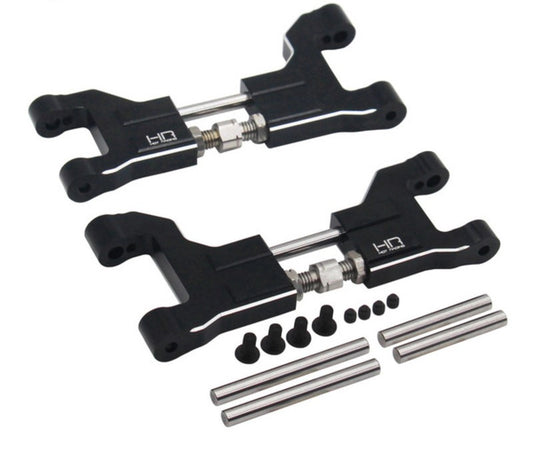

Maxx WideMaxx Lower Suspension Arms (2)
Regular price $12.00 USDRegular priceUnit price / per -

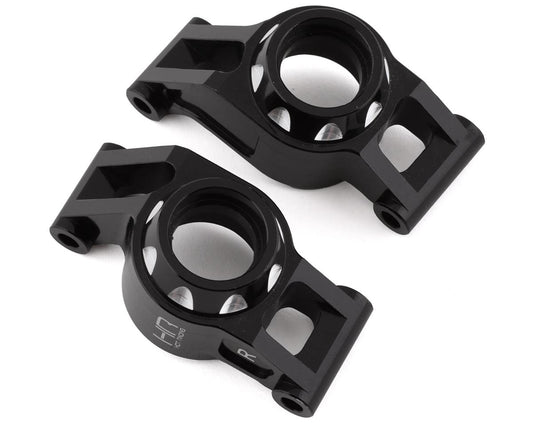

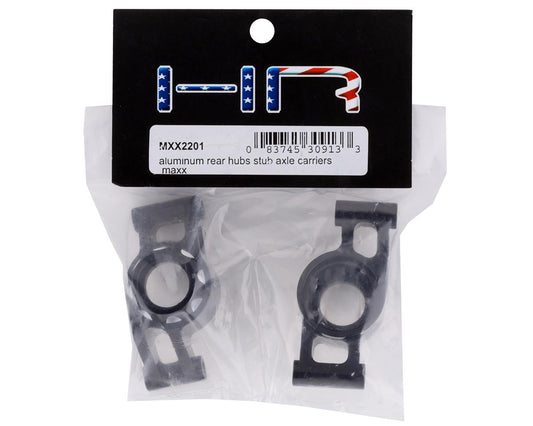

Maxx Aluminum Rear Hubs Stub Axle Carriers (Black) (2)
Regular price $33.88 USDRegular priceUnit price / perSold out -
Sold out

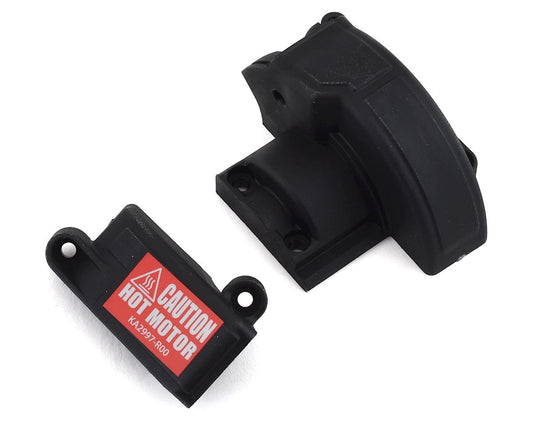

Maxx Gear Covers
Regular price $4.00 USDRegular priceUnit price / perSold out -

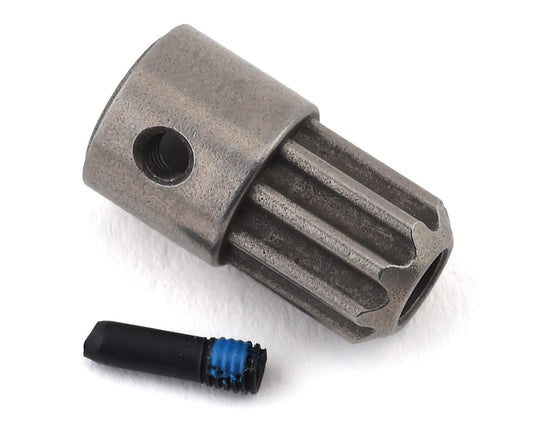

Maxx Front Drive Hub w/3x10mm Screw Pin
Regular price $6.00 USDRegular priceUnit price / per -

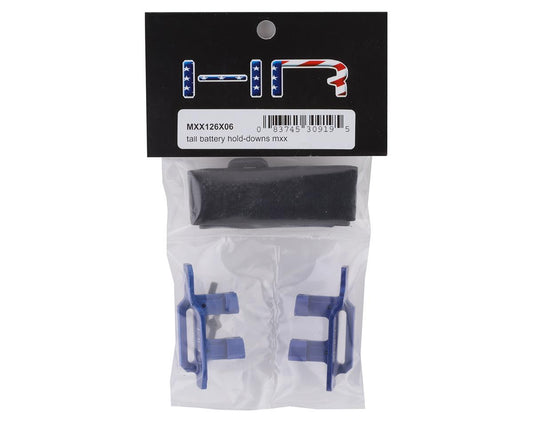

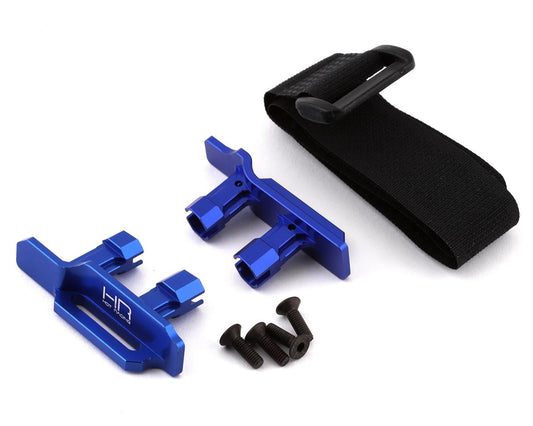

Maxx Tall Battery Hold-Downs (Blue)
Regular price $25.99 USDRegular priceUnit price / per -

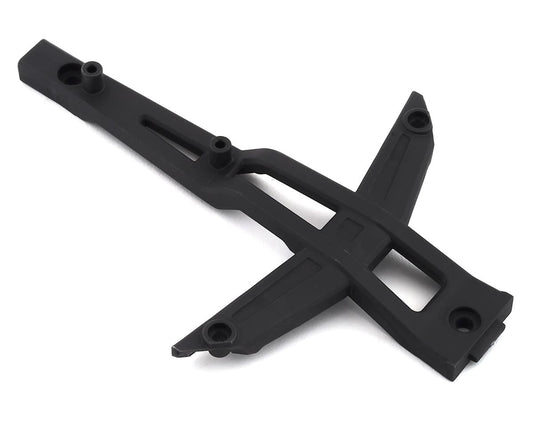

Maxx Front Chassis Brace
Regular price $6.00 USDRegular priceUnit price / per -

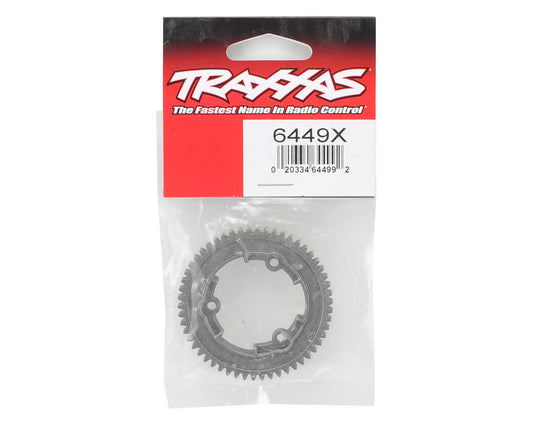

Steel Wide-Face Mod 1.0 Spur Gear (50T)
Regular price $18.00 USDRegular priceUnit price / perSold out -

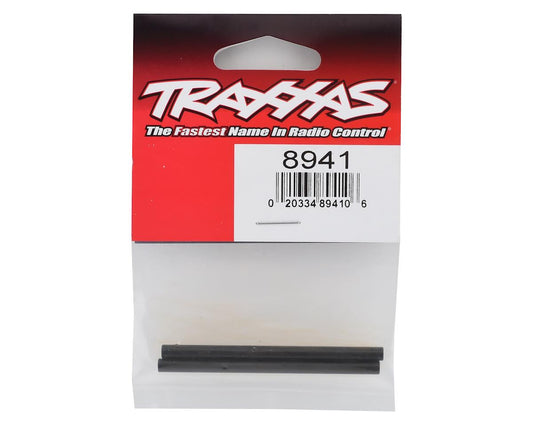

Maxx Front/Rear Suspension Pins (2) (4x64mm)
Regular price $3.50 USDRegular priceUnit price / per -

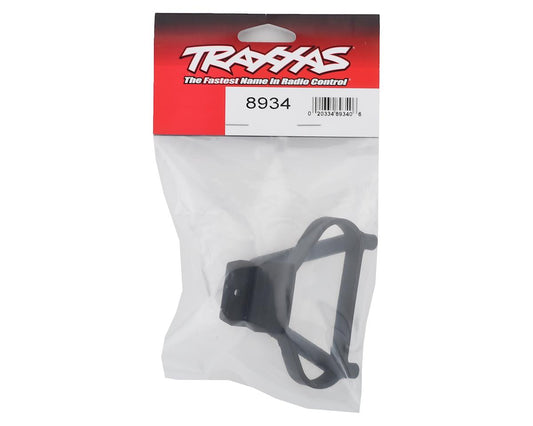

Maxx Rear Bumper Mount
Regular price $5.00 USDRegular priceUnit price / per -

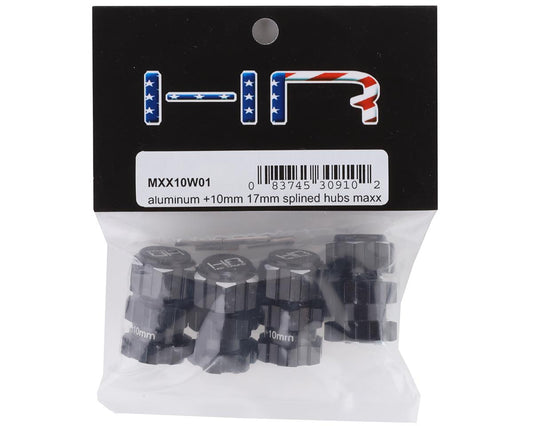

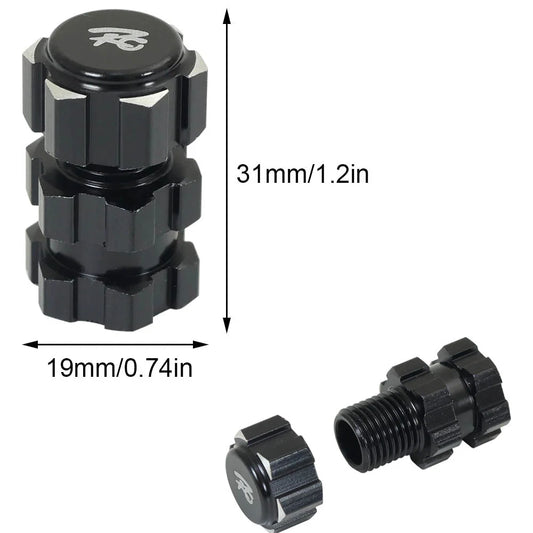

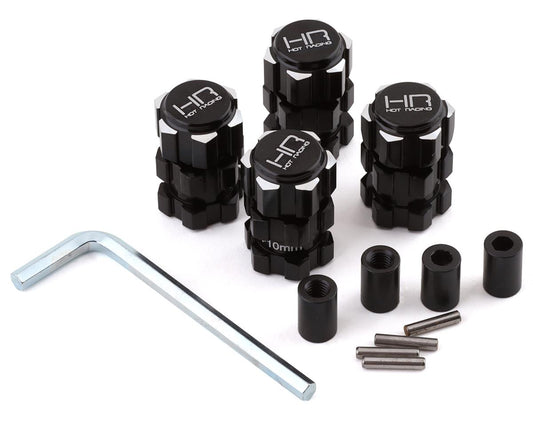

Maxx Aluminum +10mm 17mm Splined Hubs
Regular price $29.99 USDRegular priceUnit price / per -

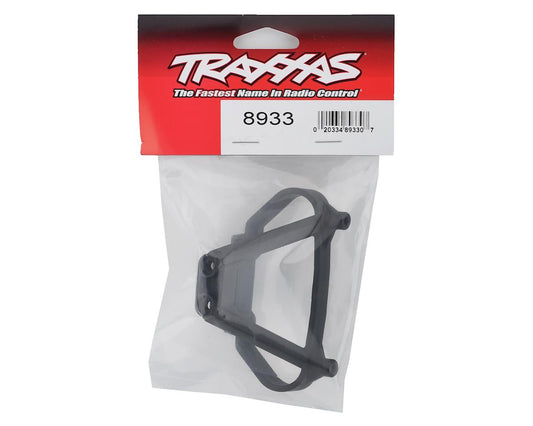

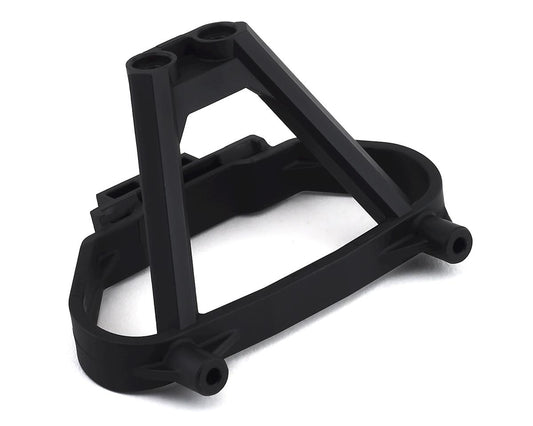

Maxx Front Bumper Mount
Regular price $5.00 USDRegular priceUnit price / per -
Tailgate Protector
Regular price $4.00 USDRegular priceUnit price / per -

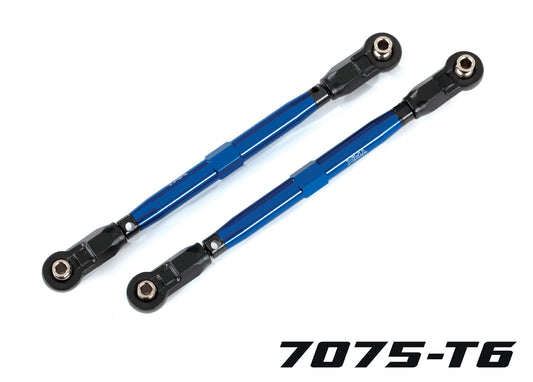

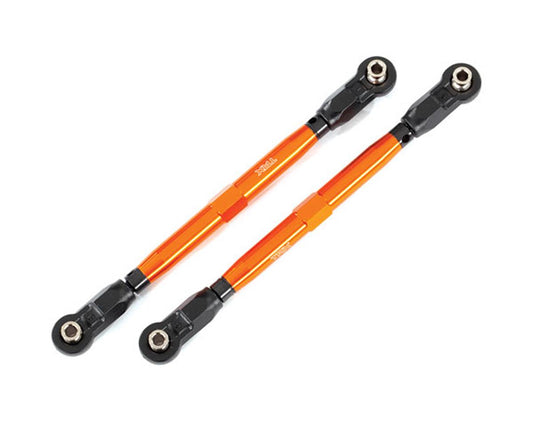

TOE LINKS WIDEMAXX 119.8
Regular price $39.95 USDRegular priceUnit price / per -

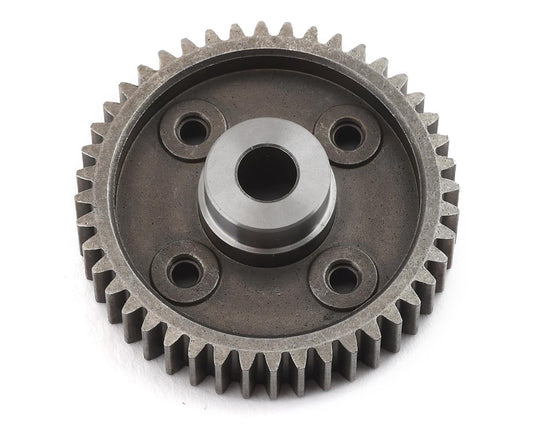

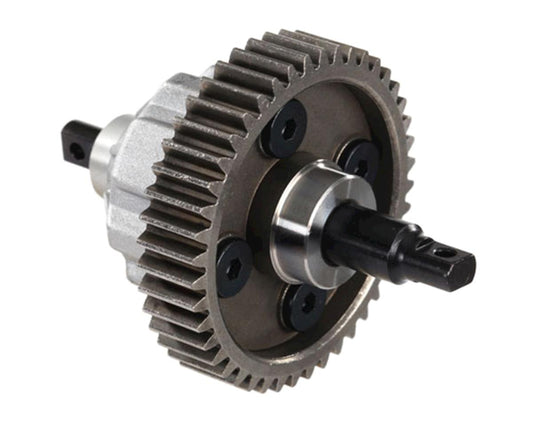

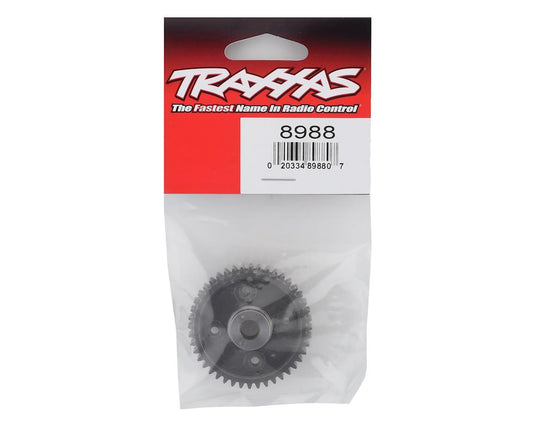

Maxx Gear Center Differential (44T)
Regular price $11.00 USDRegular priceUnit price / per -

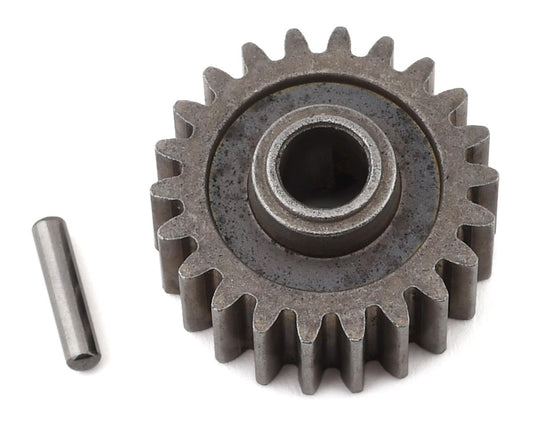

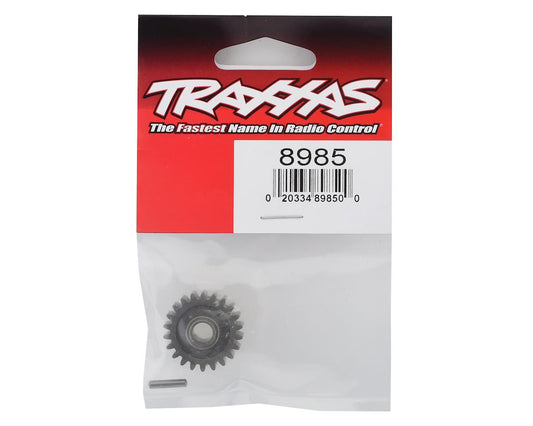

Maxx Transmission Input Gear (22T)
Regular price $4.00 USDRegular priceUnit price / per -

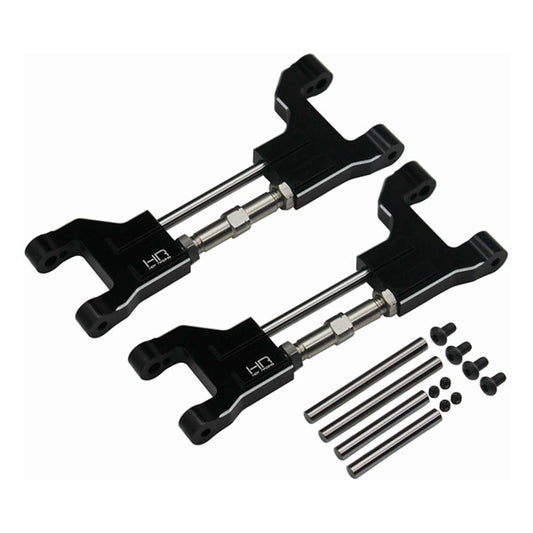

Maxx Lower Suspension Arm
Regular price $9.00 USDRegular priceUnit price / per -

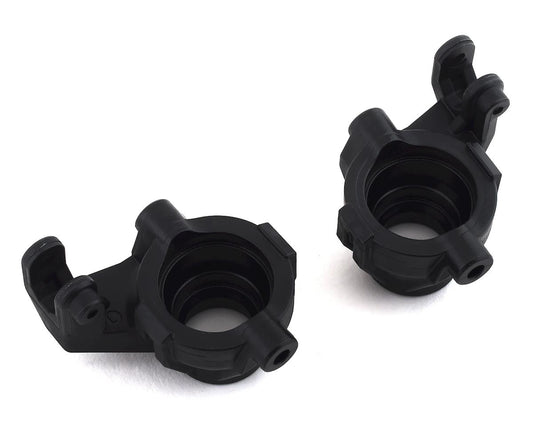

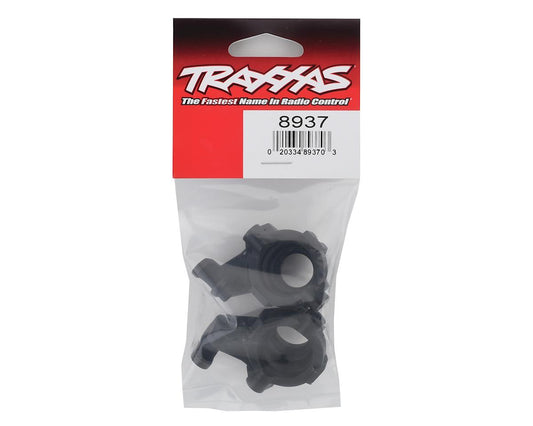

Maxx Steering Blocks (2)
Regular price $6.00 USDRegular priceUnit price / per -

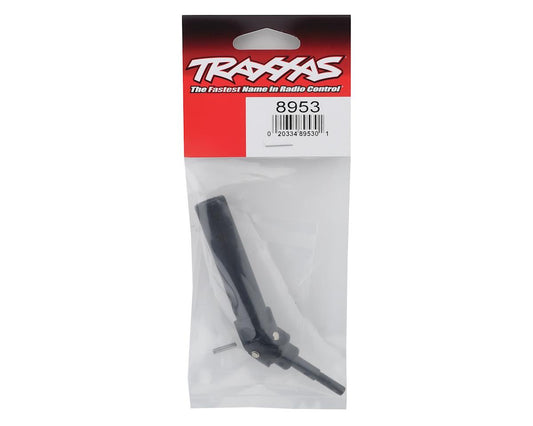

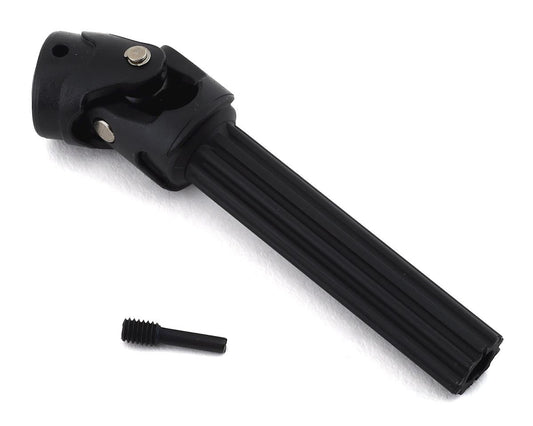

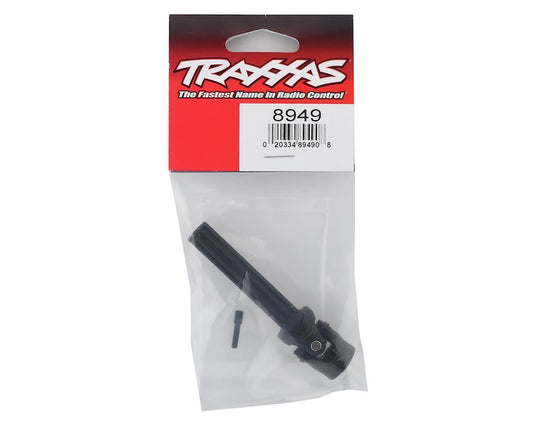

Maxx Outer Stub Axle Assembly
Regular price $7.00 USDRegular priceUnit price / per -

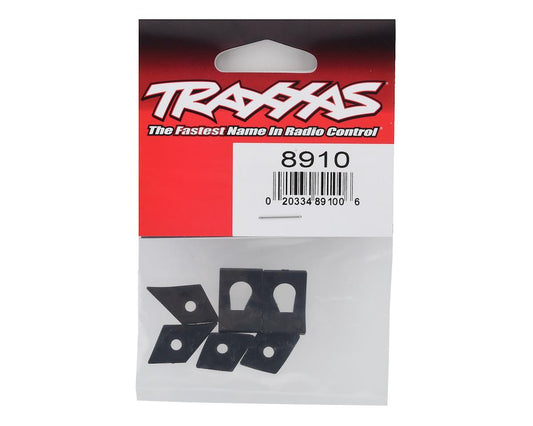

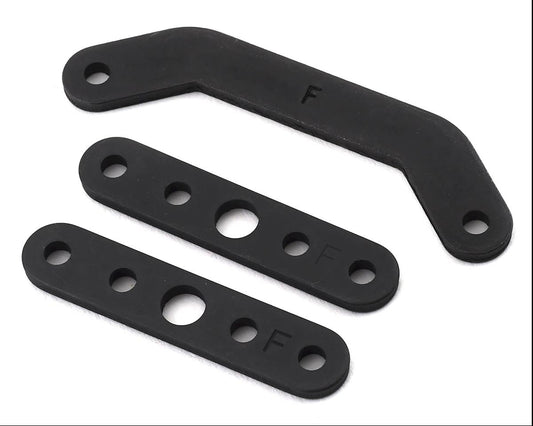

Maxx Body Reinforcement Set
Regular price $6.00 USDRegular priceUnit price / per -
Maxx Center Differential Kit (Complete)
Regular price $74.95 USDRegular priceUnit price / per -
Sold out
SPRINGS SHOCK NATURAL GT-MAXX
Regular price $9.00 USDRegular priceUnit price / perSold out -

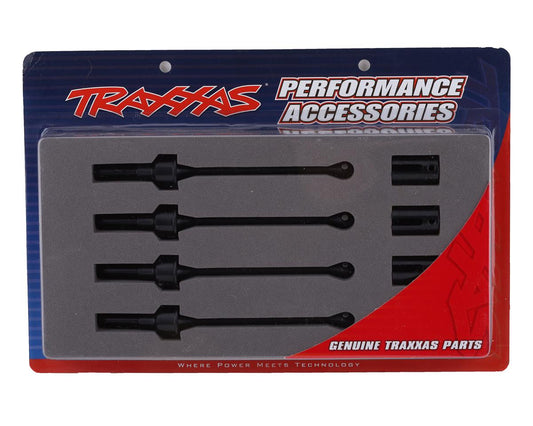

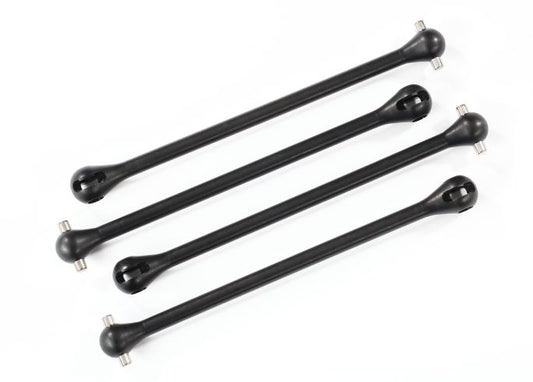

DRIVESHAFT WIDEMAXX 109.5 (4)
Regular price $44.95 USDRegular priceUnit price / per -

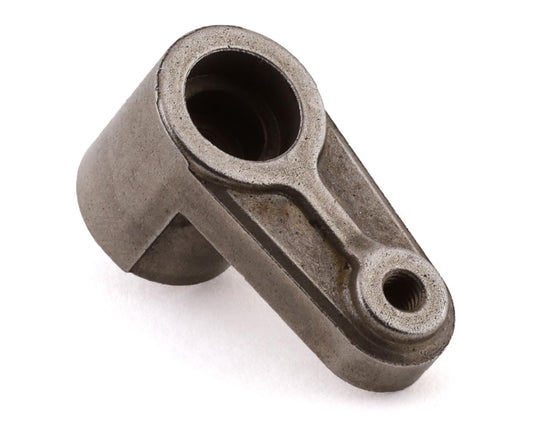

Maxx Steel Servo Horn
Regular price $6.00 USDRegular priceUnit price / per -

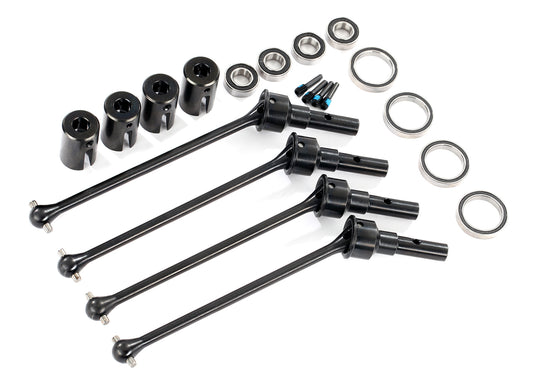

DRIVESHAFTS, SCV (ASSEMBLED) WIDEMAXX
Regular price $99.95 USDRegular priceUnit price / per -
Maxx Front Bulkhead Tie Bar
Regular price $12.00 USDRegular priceUnit price / per -

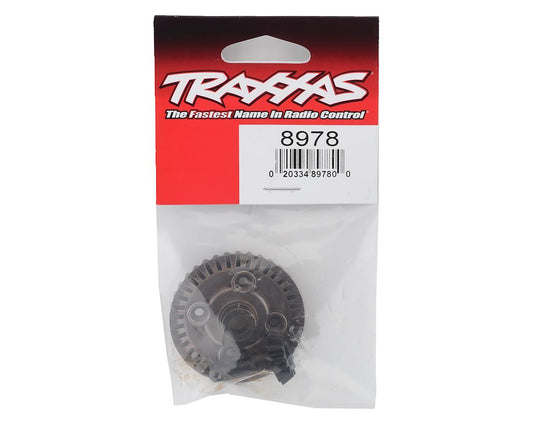

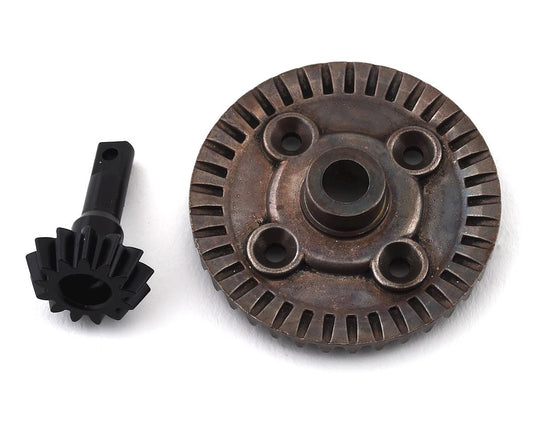

Maxx Front Ring & Pinion Gear
Regular price $18.00 USDRegular priceUnit price / per -

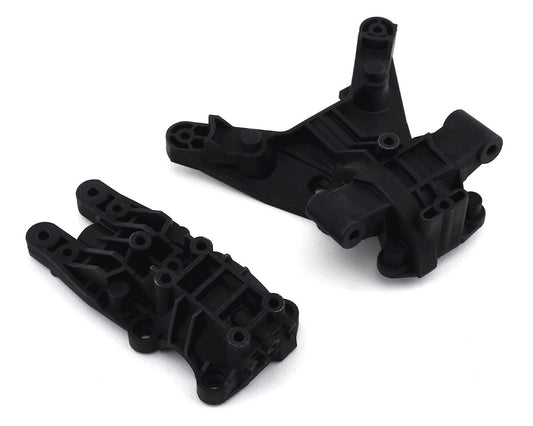

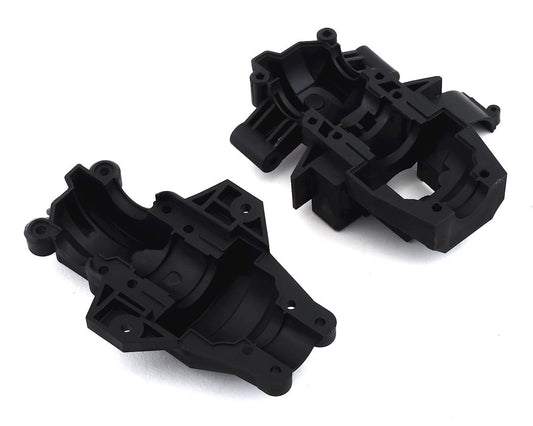

Maxx Front Bulkhead
Regular price $12.00 USDRegular priceUnit price / per -
Maxx Rear Bulkhead
Regular price $12.00 USDRegular priceUnit price / per -

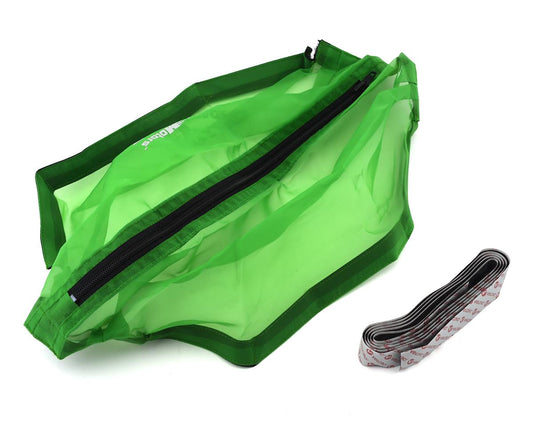

Maxx Protection Cover (Green)
Regular price $39.99 USDRegular priceUnit price / per -
Sold out

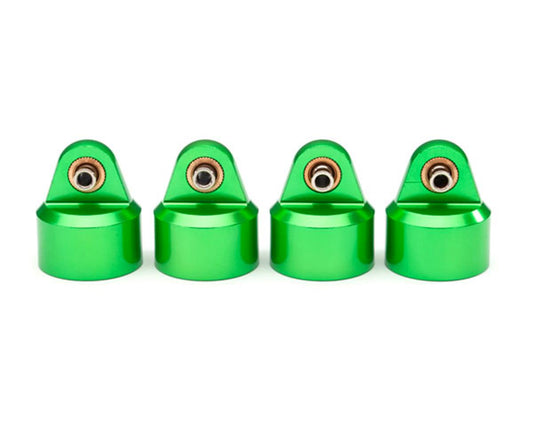

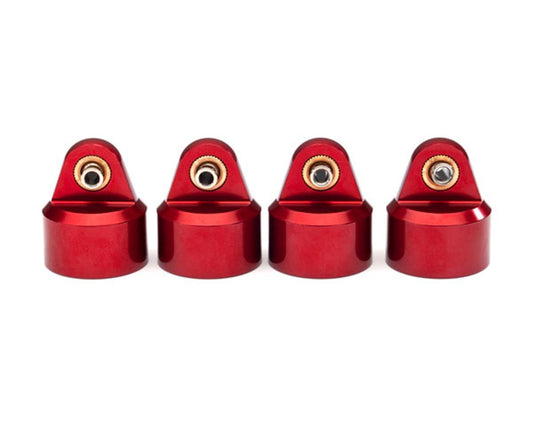

GT-Maxx Aluminum Shock Caps (4)
Regular price $49.95 USDRegular priceUnit price / perSold out -

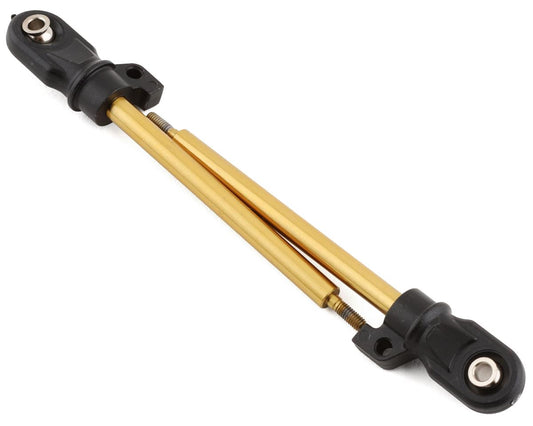

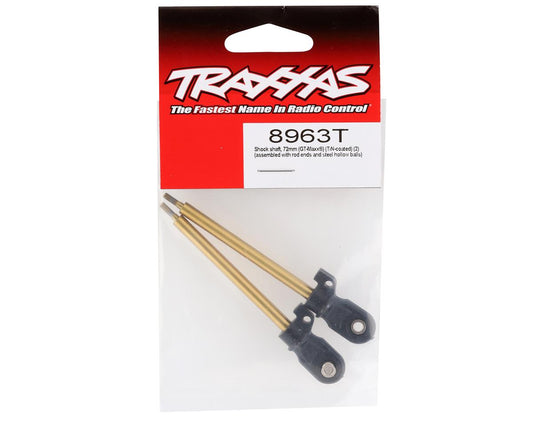

GT-Maxx TiN Coated Shock Shaft Assembly (2) (72mm)
Regular price $24.95 USDRegular priceUnit price / per -

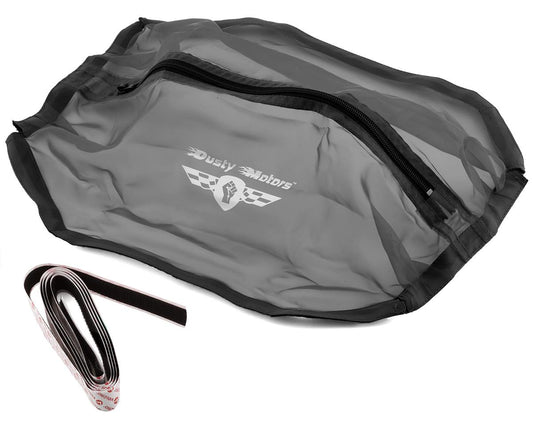

WideMaxx Protection Cover (Black)
Regular price $39.99 USDRegular priceUnit price / per -
Maxx Differential Output Yoke
Regular price $7.00 USDRegular priceUnit price / per -

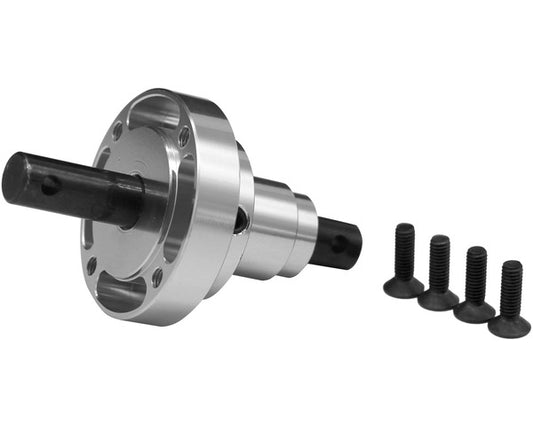

Maxx Differential Locker Spool
Regular price $23.99 USDRegular priceUnit price / per -

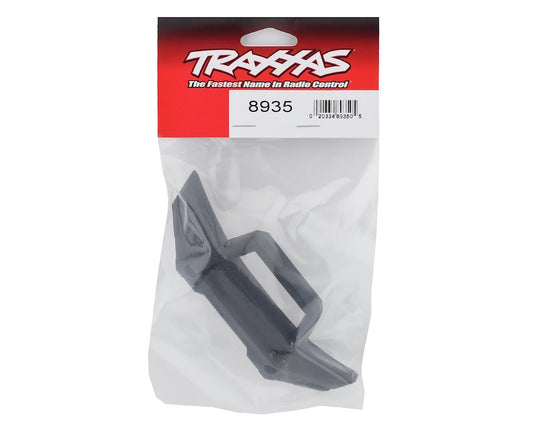

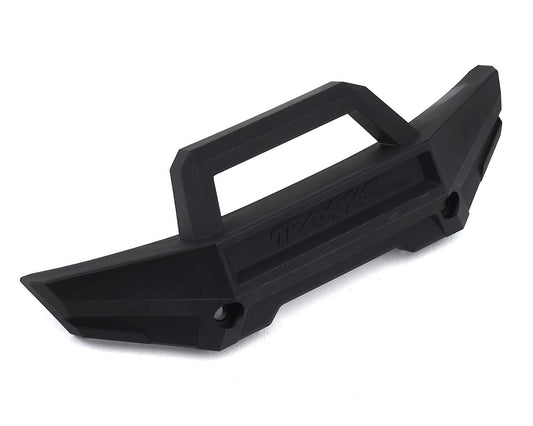

Maxx Front Bumper
Regular price $6.00 USDRegular priceUnit price / per -

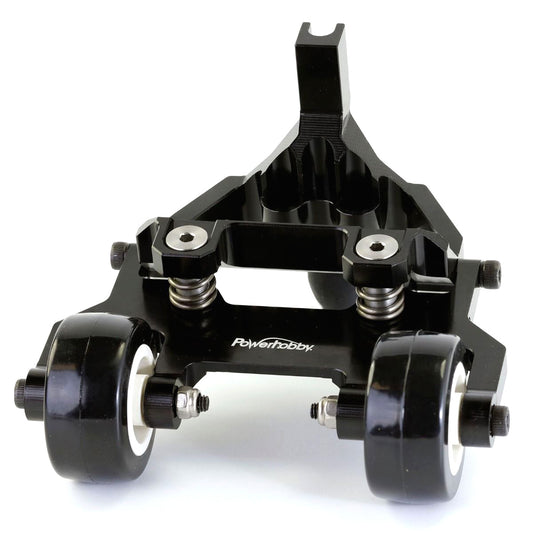

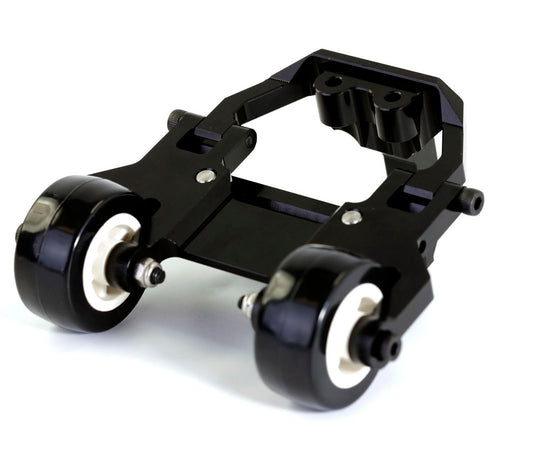

Aluminum Wheelie Bar, Black, fits Traxxas Maxx
Regular price $64.95 USDRegular priceUnit price / perSold out -

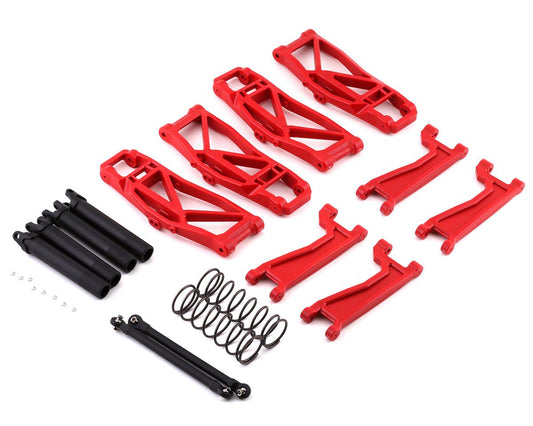

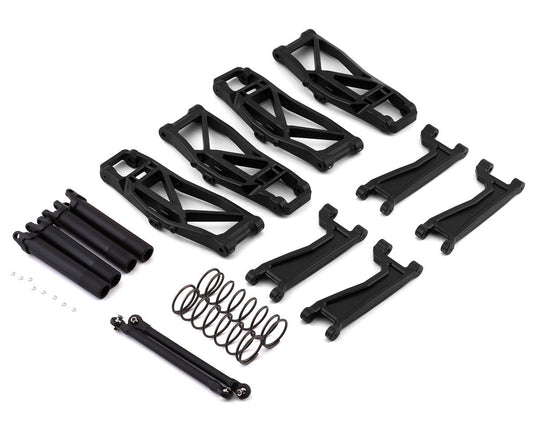

Maxx WideMaxx Suspension Kit
Regular price $49.95 USDRegular priceUnit price / per -

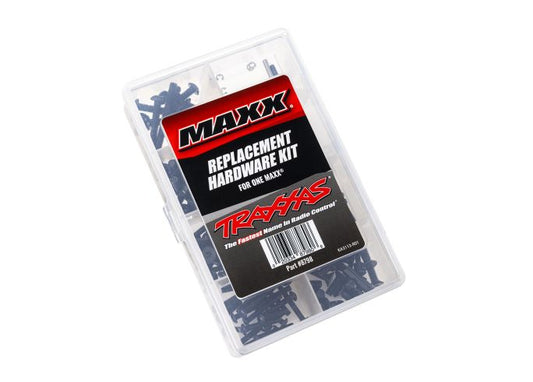

HARDWARE KIT MAXX CMPLT
Regular price $29.95 USDRegular priceUnit price / per
Upgrades for this product...
-
Sold out

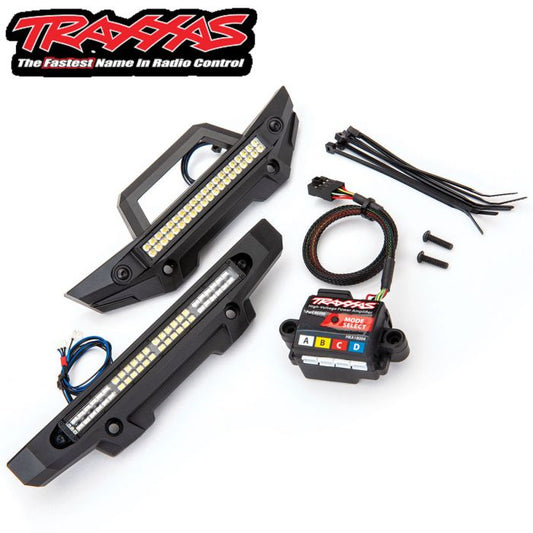

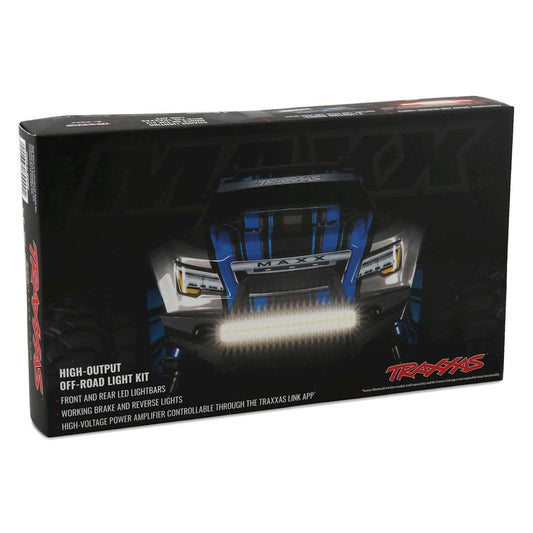

LED LIGHT KIT MAXX WITH 6590
Regular price $99.95 USDRegular priceUnit price / perSold out -
Sold out

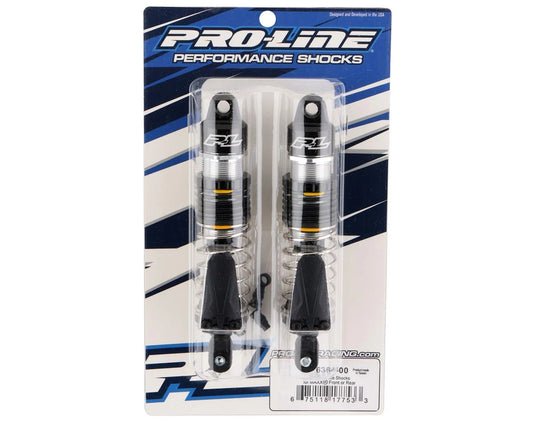

MAXX 1/10 PowerStroke Front & Rear
Regular price $84.99 USDRegular priceUnit price / perSold out -

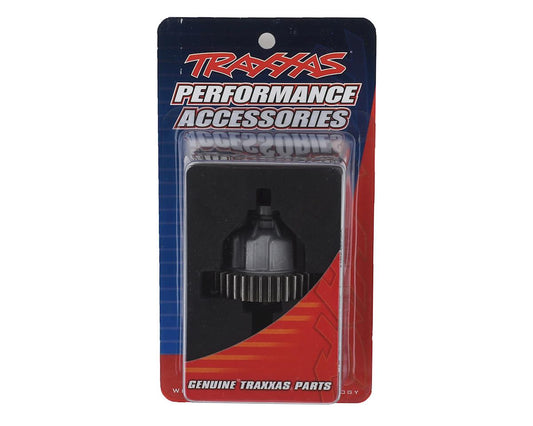

Maxx Differential Locker Spool
Regular price $23.99 USDRegular priceUnit price / per -
Aluminum Upper Arms: Traxxas Wide Maxx
Regular price $34.99 USDRegular priceUnit price / perSold out -

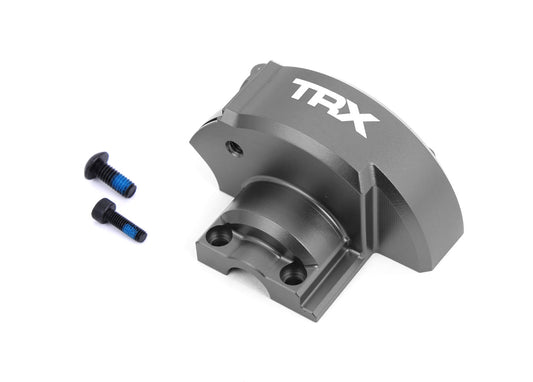

Aluminum Gear Cover Black FOR Traxxas Maxx / Maxx Slash
Regular price $29.99 USDRegular priceUnit price / per -
Hot Racing Traxxas Maxx V1 or Maxx Slash Aluminum Adjustable Upper Suspension Arms MXX5401
Regular price $34.99 USDRegular priceUnit price / per -

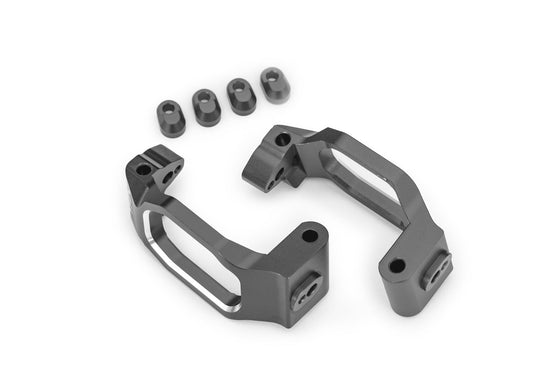

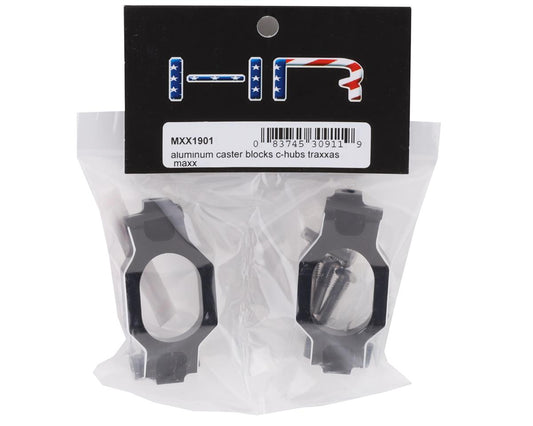

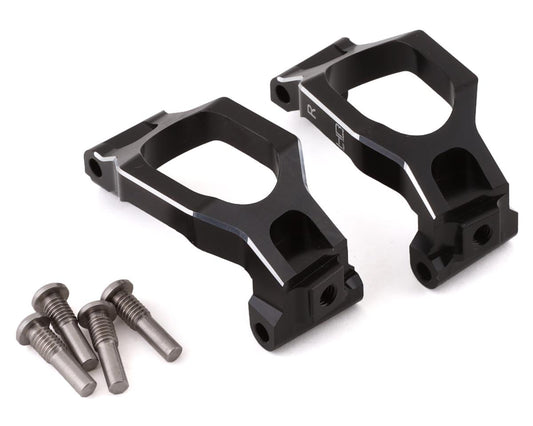

Maxx Aluminum C-Hub Caster Blocks (Black) (2)
Regular price $38.99 USDRegular priceUnit price / perSold out -
Maxx Aluminum Fixed Steering Link w/25T Servo Arm
Regular price $23.99 USDRegular priceUnit price / per -
Maxx Aluminum Front Chassis Brace (Blue)
Regular price $43.88 USDRegular priceUnit price / per -
Maxx Aluminum Rear Hubs Stub Axle Carriers (Black) (2)
Regular price $33.88 USDRegular priceUnit price / perSold out -

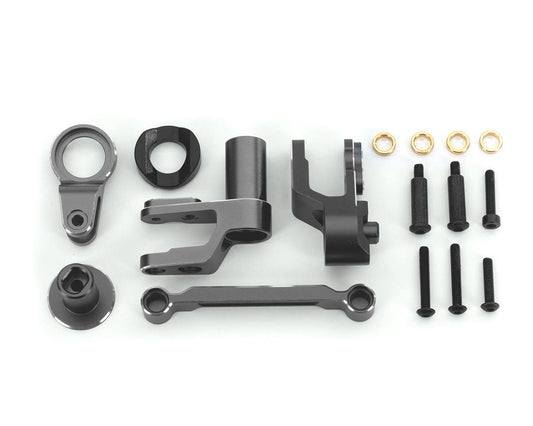

Maxx Aluminum Servo Saver Steering Bellcrank Set
Regular price $39.88 USDRegular priceUnit price / perSold out -
Maxx Aluminum Steering Blocks (Black) (2)
Regular price $33.88 USDRegular priceUnit price / perSold out -
Maxx Tall Battery Hold-Downs (Blue)
Regular price $25.99 USDRegular priceUnit price / per -
DRIVESHAFTS, SCV (ASSEMBLED) WIDEMAXX
Regular price $99.95 USDRegular priceUnit price / per
Parkflyers R/C - YouTube Channel
Checkout our youtube Channel for amazing reviews on out products ! We are NOT biased. We tell it like it is.
