TRAXXAS

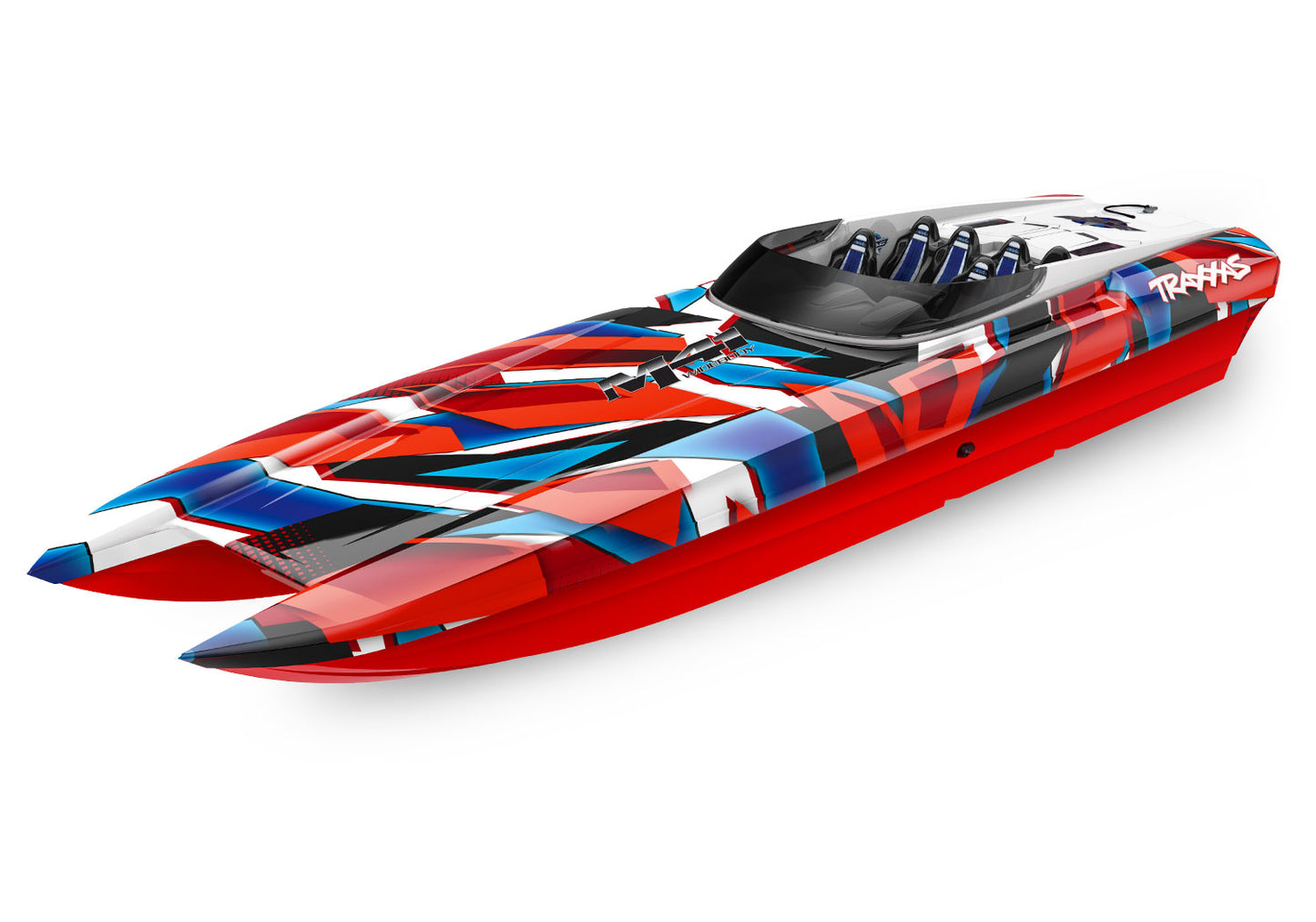

DCB M41 WIDEBODY, NO BATTERY OR CHARGER

$449.95 USD

Sale Sold out

Shipping calculated at checkout.

Color Green Orange

Product variants

SKU:57046-4

Quantity

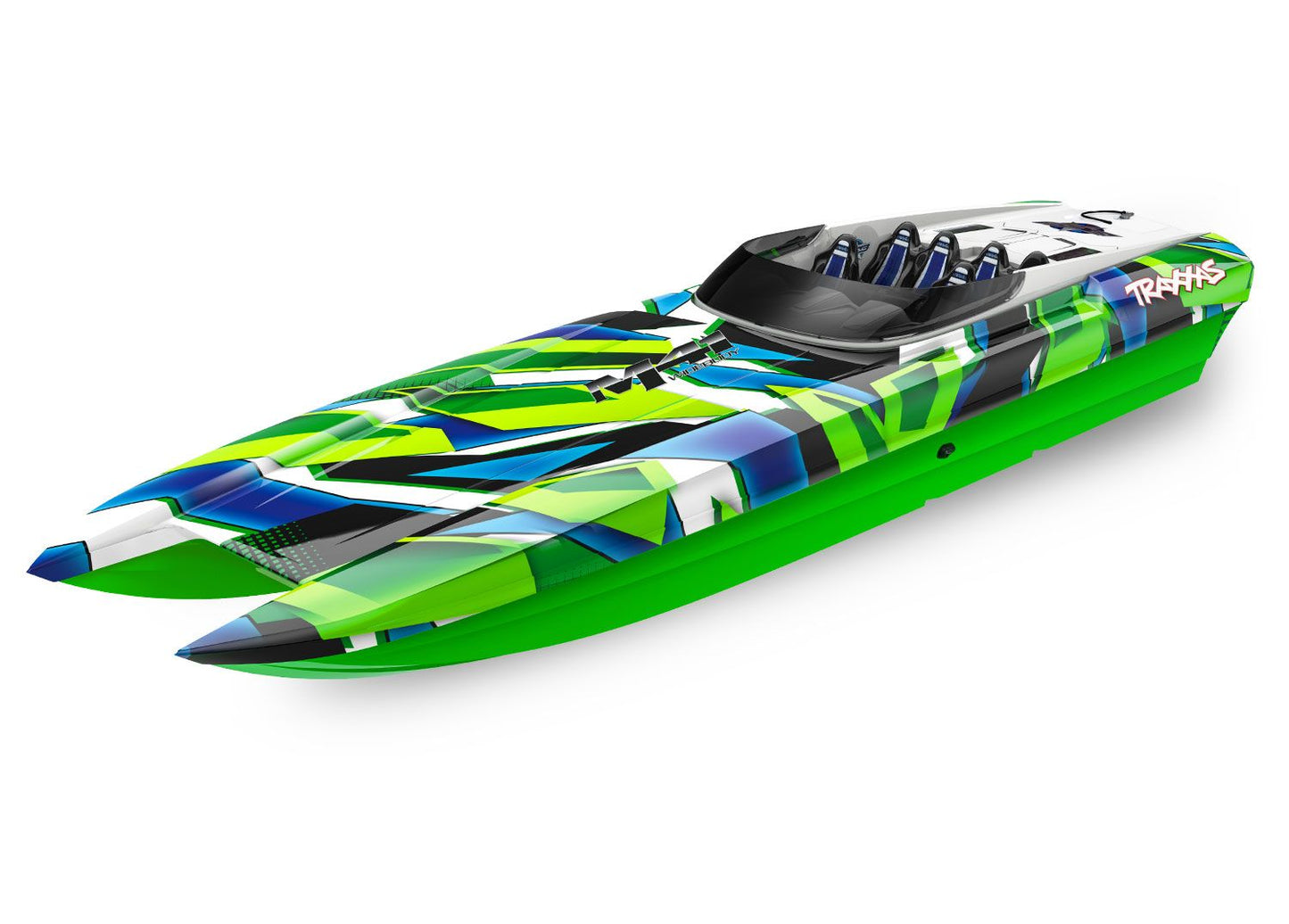

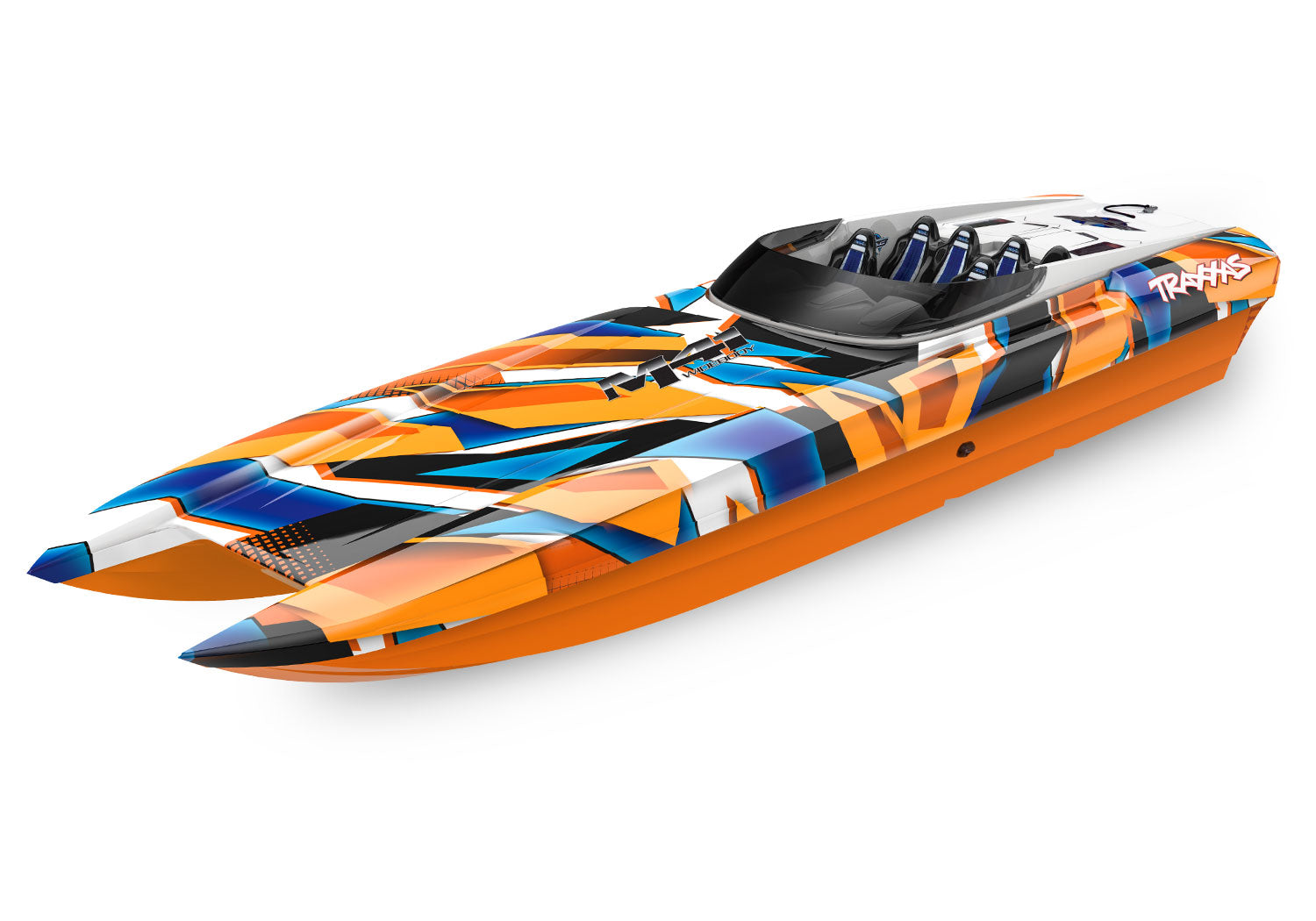

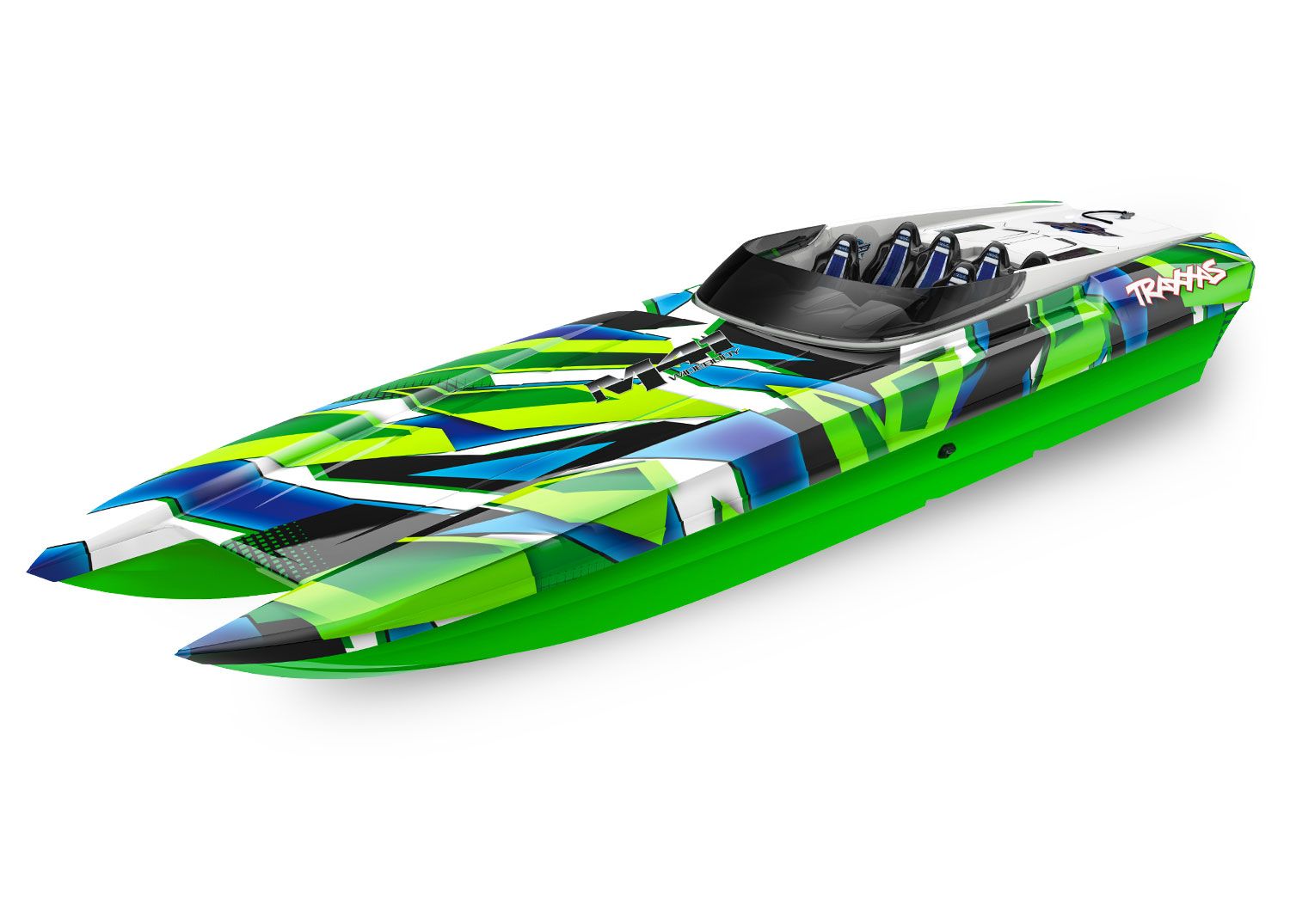

Traxxas DCB M41 Widebody 40" Catamaran - Extreme Power with the Style to Match!

The Traxxas DCB M41 Widebody 40" Catamaran was built for extreme power and speed. With a powerful 6s motor this boat can reach speeds in excess of 50mph! Built with a Twin-hull catamaran design the DCB M41 can handle high speeds even in less than ideal conditions. Additionally this boat is equipped with Traxxas Stability Management (TSM) bringing another level to stability that other boats cannot match. With 6s power, off the charts stability and dependable Traxxas components leave your competition at the docks with the DCB M41 Widebody!

Traxxas has faithfully captured the incredible looks and performance of the DCB M41 in a detailed scale replica that is versatile, fun, and fast. Designed by DCB (Dave’s Custom Boats) founder Dave Hemmingson, is one of the largest full size models offered in the DCB M-Series. The full size boat with its precision sculpted design and a pair of Mercury Racing 1350 engines speeds across the water at 175mph!

Features:

50+mph on 6S LiPo
40" DCB M41 Widebody catamaran replica
Stable Twin-hull catamaran performs across waves and smooth water
Water-cooled, waterproof VXL-6s Marine speed control
Traxxas High-Current Connectors (patented)
Velineon 540XL high-output brushless motor with high flow water-cooling jacket
Quick-release Power Module integrates power system with waterproof electronics
Adjustable battery trays with hook-and-loop straps
Blue-anodized aluminum rudder support, rudder, and drive strut
Stainless steel trim tabs, and hardware
TQi 2.4GHz radio system and 5-channel receiver
Access the Traxxas Link app with the Traxxas Link Wireless Module (#6511) (sold separately)
Traxxas Stability Management® (TSM) makes it easy to go fast
Waterproof high-torque steering servo

Specifications:

Hull Type: Vacu-formed ABS, catamaran, shoebox style

Hull Length: 39.5" (1003mm)

Overall Length: 40.6" (1030mm)

Beam: 10.5" (267mm)

Height: 5.95" (151mm)

Deadrise & Transom: 14.5 degrees

Weight: 86.7 ounces (2.46 kg)

Speed Control Type: Traxxas Velineon VXL-6s, water-cooled

Input Voltage: 2-6 LiPo cells (14.8-22.2 volts DC)

BEC Voltage: 6.0 VDC

BEC Current: 3A

Thermal Protection: Thermal shutdown

Low Voltage Detection: Yes (user enabled)

Motor (electric): Traxxas Velineon 540XL Brushless, water-cooled

Drive System: Direct drive, 0.15 inch flex cable

Outdrive: Adjustable aluminum

Prop: 2-blade composite, 42x59mm

Transmitter: TQi 2.4GHz (2-channel)

Receiver: 6533 2.4GHz Traxxas Stability Management 5-channel

Servo: 2056 High-torque waterproof

Skill Level: 2

Needed To Complete:

(4) "AA" Batteries (for transmitter)
(2) 2S or 3S LiPo Battery w/iD Connector
(1) Compatible Battery Charger

MODEL SPECS

Model Name:	M41 Catamaran
Model Type:	Boats
Model Speed:	50+ mph with two 3-cell LiPo batteries
Model Skill Level:	2
Scale:	1/10
Weight:	5.42 pounds (2.46 kg)
Length:	40.6 inches (1030 mm)
Width:	10.5 inches (267 mm)
Height:	5.95 inches (151 mm)
Drive System:	Direct drive, 0.150" flex cable

Prop:	2-blade composite, 42 mm x 59 mm
Outdrive:	Adjustable aluminum
Hull Length:	39.5 inches (1003 mm)
Dead Rise Angle:	14.5 degrees
Length:	40.6 inches (1030 mm)
Height:	5.95 inches (151 mm)
Beam (Width):	10.5 inches (267 mm)
Hull Type:	Vacu-formed ABS, catamaran
Servo(s):	2056 high-torque waterproof
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with TSM^® receiver

MOTOR SPECS

Motor Name:	Velineon^® 540XL
Motor Type:	Sensorless brushless
Motor Weight:	13.62 ounces (386 g)
Motor Length:	4.07 inches (103 mm) overall length, 3.25 inches (82 mm) can length
Motor Diameter:	1.42 inches (36 mm)
Motor Shaft Size:	5 mm
Motor Connector Type:	Traxxas 5.5 mm bullet connectors

ESC SPECS

ESC Name:	Velineon^® VXL-6s
ESC Type:	Brushless
ESC Case Size:	2.28 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
ESC Weight:	7.30 ounces (207 g)
Motor Connectors:	Traxxas 5.5 mm bullet connectors
Battery Connectors:	Traxxas High Current Connector

40″ DCB M41 Catamaran Hull
- Replica of Dave’s Custom Boats M41 Widebody
- Highly detailed cockpit
- Lightweight ABS hull
- Reinforced transom

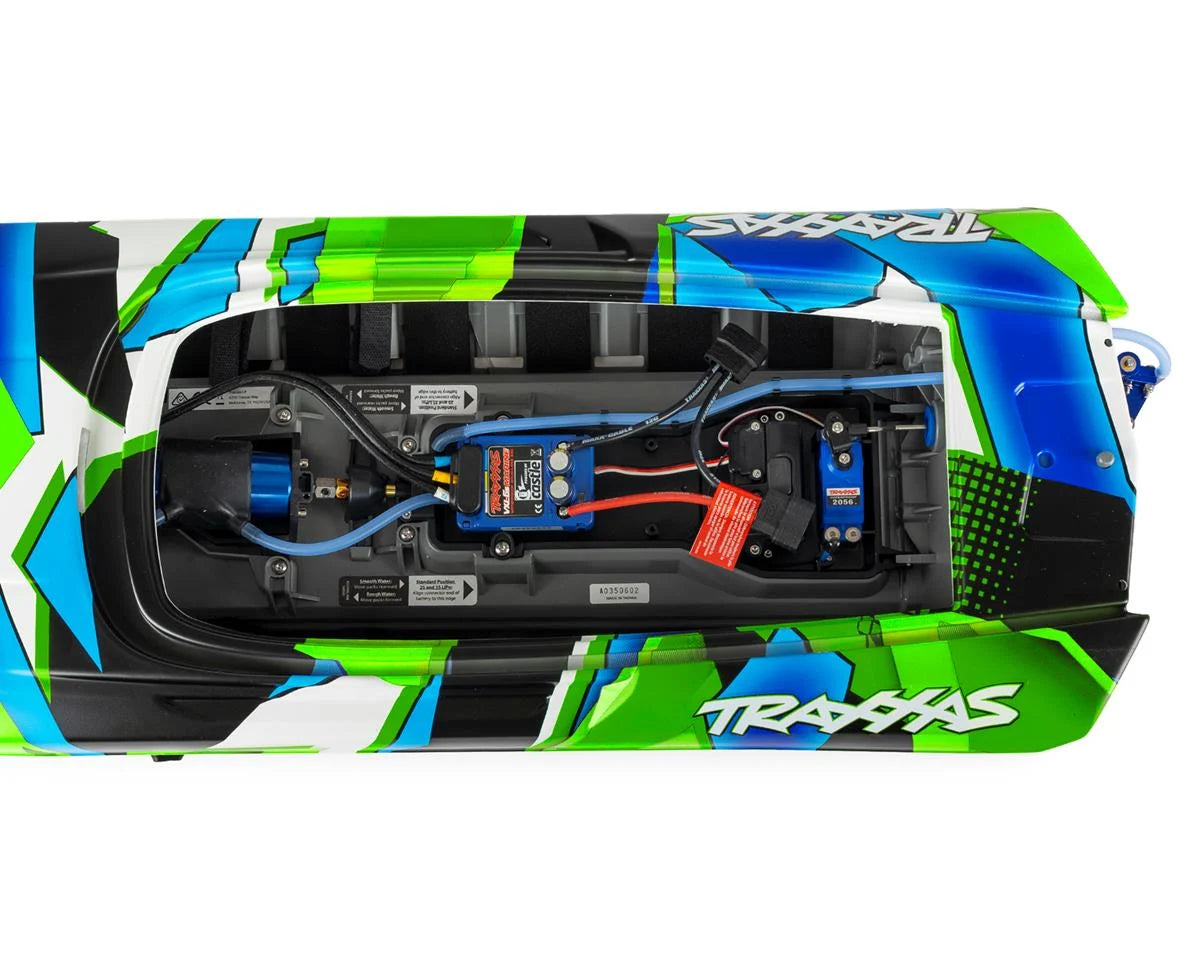

- Quick-release Power Module integrates power system, waterproof electronics, and stuffing tube
- Pre-painted graphics
- Easy-access hatch with body clip lanyard
- Molded foam in the bow for extra security
VXL-6s™ Marine Electronic Speed Control
- Innovative waterproof design
- Integrated water cooling
- Three drive profiles
  - Sport Mode - forward / brake / reverse
  - Race Mode - forward / brake
  - Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Built-in two-stage low-voltage detection for LiPo batteries
- Locked rotor protection
- NiMH battery packs: 12-18 cells (14.4 to 21.6 volts)
- LiPo battery packs: 4-6 cells (16.8 to 22.2 volts)

Velineon^® 540XL Brushless Motor
- 1800 kV
- 5 mm output shaft
- Ultra high-temperature sintered Neodymium magnets
- Unique high-flow silicone water cooling jacket
Traxxas Stability Management^® (TSM)
- Improves straight line acceleration
- Never dulls throttle or slows the vehicle
- Adjusts from off to 100% assistance from the transmitter

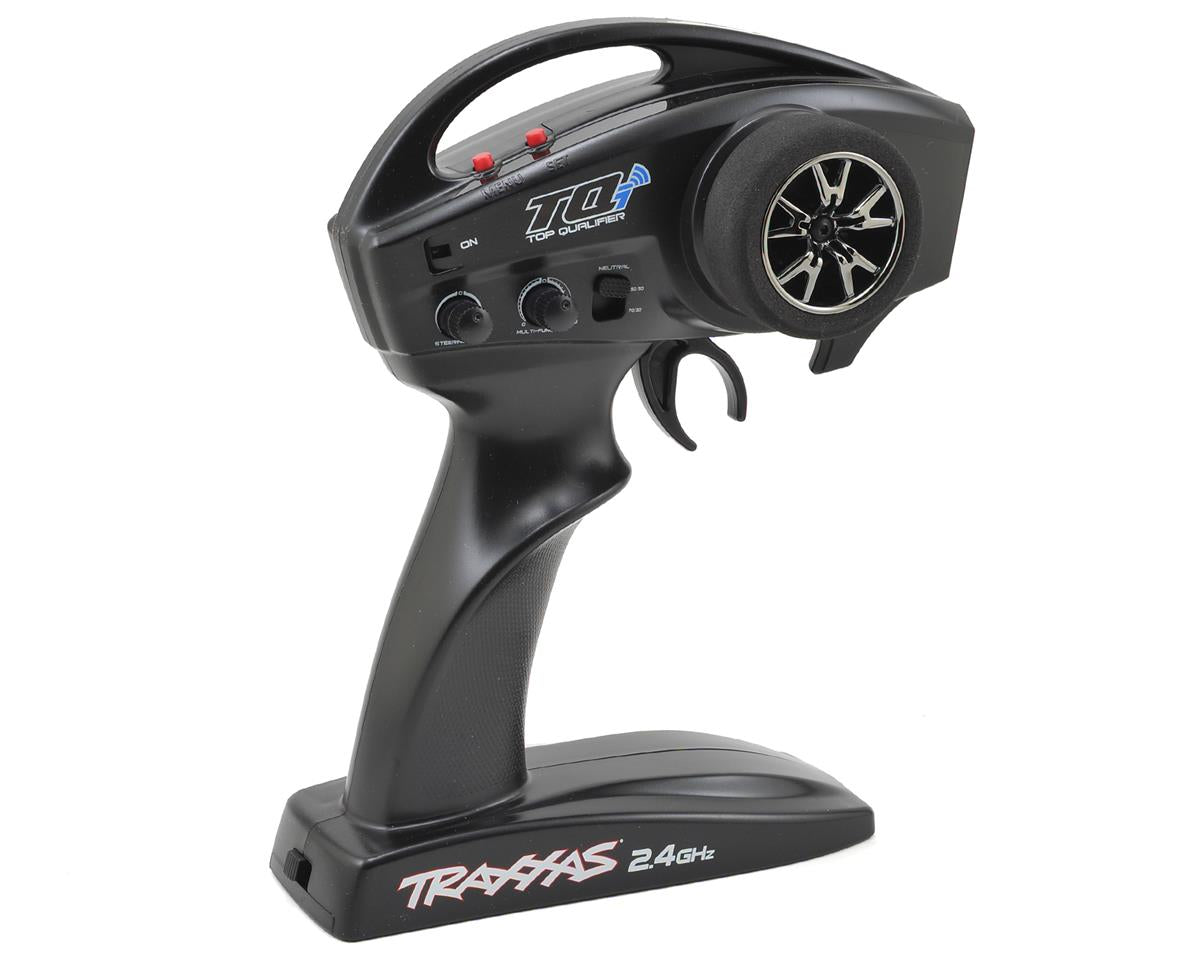

TQi™ 2.4 GHz Radio System
- 2-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- Patented waterproof receiver box

Integrated Battery Trays
- Integrated trays reinforce hull
- Hold a variety of 2-cell and 3-cell LiPo batteries
- Batteries can be positioned fore or aft for better balance
Driveline
- Quick release flex cable
- Blue-anodized aluminum drive strut
- High performance prop
Steering
- Waterproof digital 2056 servo
- Blue-anodized aluminum rudder

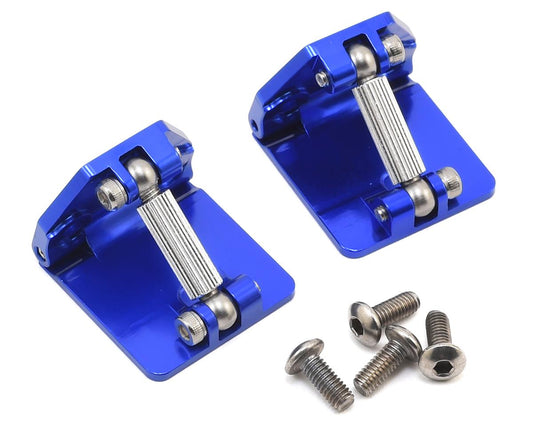

- Stainless steel trim tabs and turn fins
Low-maintenance Oilite bushings
Stainless steel hardware
Requires Battery and Charger (Sold Separately)
