Hobbywing

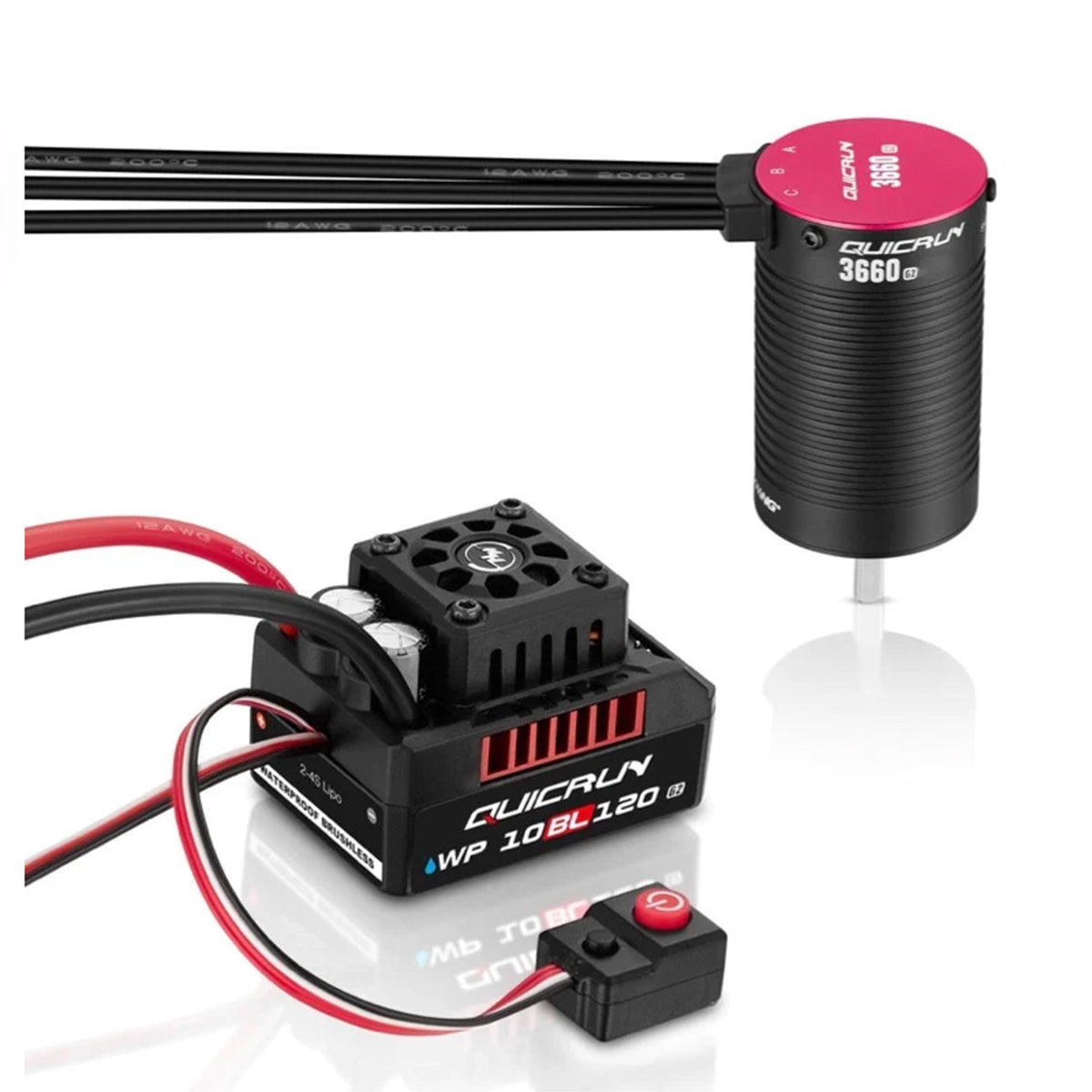

COMBO QUICRUN 10BL120 G2+3660 SL G2; 3700KV

$89.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

SKU:HWI38030211

Quantity

COMBO QUICRUN 10BL120 G2+3660 SL G2; 3700KV

Features:

QUICRUN WP 10BL120 SL G2 ESC (Waterproof, Sensorless) x 1
QUICRUN 3660SL G2 brushless motor 3700KV x 1
HOBBYWING decals x 1
Accessories x 1 set

QuicRun WP 10BL120 G2 Brushless Electronic Speed Controller

Features:

High protection level, all-weather operation: The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
Intelligent freewheeling technology, greatly improved performance: The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC, and further improves the stability and reliability of the ESC.
Powerful built-in BEC: The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A. The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.
Efficient cooling system: The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat. These results an efficient heat dissipation system to ensure that the ESC is always in a good heat dissipation state.
Capacitor Thermal Protection: Capacitor thermal protection is designed and implemented into the ESC to effectively prevent capacitors from exploding and causing irreversible damages to the ESC due to overloading.
Built-in capacitor: Super large built-in capacitor of the ESSC is as high as 1640uF. External capacitors are not needed for the 10th scale models on the market and helps improve ease of use.

ESC Specifications:

Cont./Peak Current: 120A/760A
Motor Type: Sensorless/Sensored Brushless Motor(only in sensorless mode)
Applications: 1/10th Short course truck. Monster truck
Motor Limit: With 3S LiPo = KV<4000 3660 size motor, With 4S LiPo = KV<2600 4268 size motor
LiPo Cells: 2-4S LiPo
BEC Output: 6V/7.4V adjustable, continuous current 5A (Switch-mode)
Cooling Fan: Powered by built-in BEC
Size/Weight: 52.8(L) x 39.8(W) x 38.2(H)mm/119g(Included wires&connectors)
Programming Port: Independent programming port

QuicRun 3660 SL G2 Sensorless Brushless Motor

Features:

Excellent performance, temperature is lowered: The motor efficiency is significantly higher when comparing it with the same specification. Taking 3652-3250KV as an example, the efficiency of the rear section is 8% higher, motor temperature is lower under the same load condition.
Explosion-proof rotor design, strong and reliable: The rotor is designed with front and rear aluminum end plates, which greatly improves the overall balance. At the same time, the rotor is wound with high-strength tensile materials and has strong explosion-proof ability.
Solid material, strong and reliable provide a solid guarantee for the long-term excellent performance of the motor. It adopts high-hardness aluminum CNC end cover. 0.2mm ultra-thin and low-loss silicon steel sheet. Top of the line high-precision and high-quality bearings. 200 degrees C high-temperature-resistant enameled wire with high current silicone wires.
Detachable design for easy maintenance: The motor adopts a modular detachable structure design, which is convenient for routine cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.

Motor Specifications:
