Hobbywing

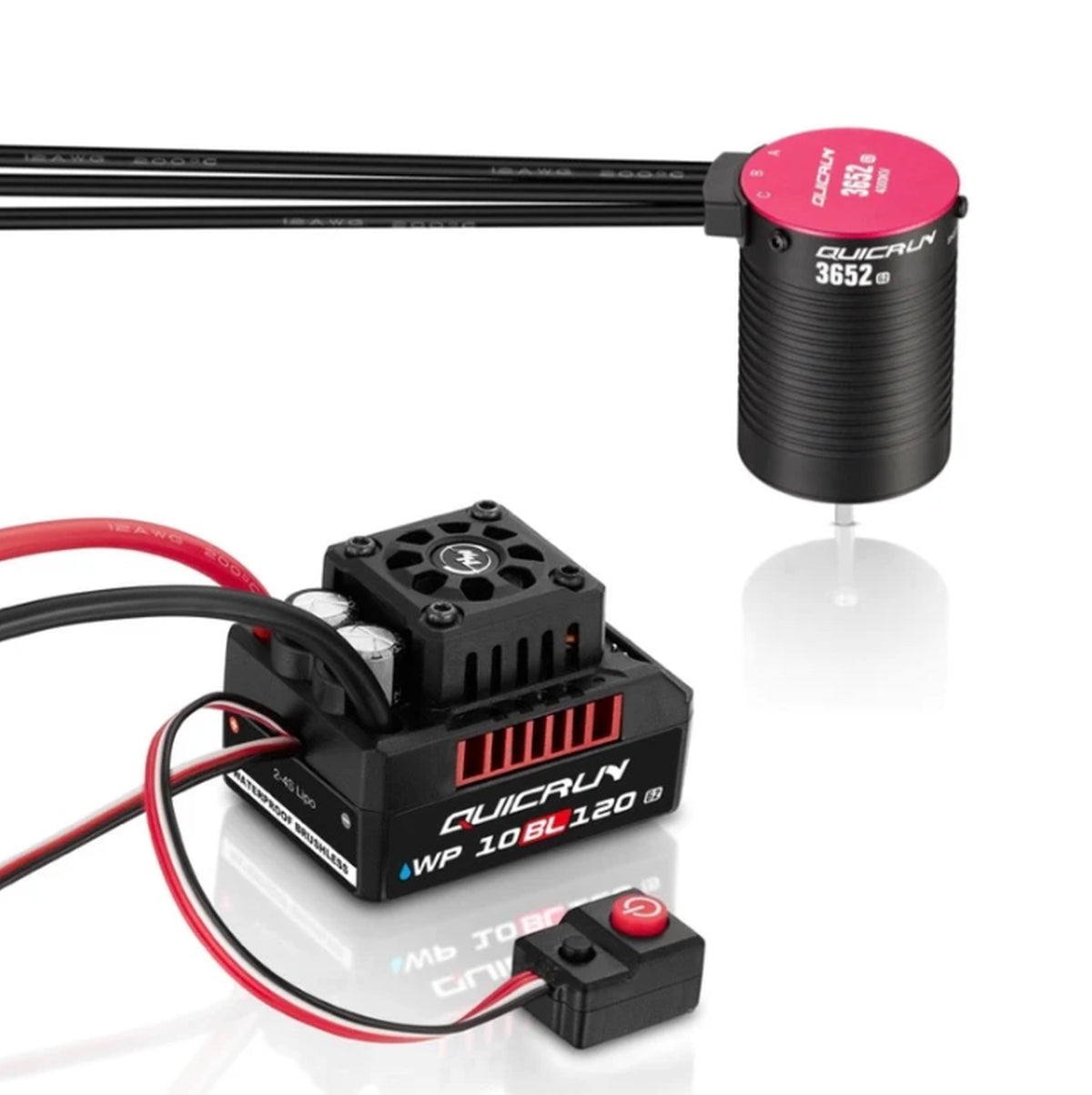

COMBO QUICRUN 10BL120 G2+3652 SL G2, 4000KV
COMBO QUICRUN 10BL120 G2+3652 SL G2, 4000KV
Regular price
$84.99 USD
Regular price
Sale price
$84.99 USD
Unit price
/
per
Shipping calculated at checkout.
SKU:HWI38030208
Couldn't load pickup availability
High protection level, all-weather operation: The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.Intelligent freewheeling technology, greatly improved performance: The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC, and further improves the stability and reliability of the ESC.Powerful built-in BEC: The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A. The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.Efficient cooling system: The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat. These results an efficient heat dissipation system to ensure that the ESC is always in a good heat dissipation state.Capacitator Thermal Protection: Capacitor thermal protection is designed and implemented into the ESC to effectively prevent capacitors from exploding and causing irreversible damages to the ESC due to overloading.Built-in capacitor: Super large built-in capacitor, the built-in capacitor of the ESC is as high as 1640uF. External capacitors are not needed for 10th scale models on the market and helps improve ease of use. ESC Specifications:Cont./Peak Current: 120A/760AMotor Type: Sensorless/Sensored Brushless Motor (only in sensorless mode)Applications: 1/10th Short course truck, Monster truckMotor Limit: With 3S Lipo: KV<4000 3660 size motor, With 4S Lipo: KV<2600 4268 size motorLipo Cells: 2-4S LipoBEC Output: 6V/7.4V adjustable, continuous current 5A (Switch-mode)Cooling Fan: Powered by built-in BECSize/Weight: 52.8(L) x 39.8(W) x 38.2(H)mm/119g (Included wires & connectors)Programming Port: Independent programming port QuicRun 3652 SL G2, 4000KV Sensorless Brushless Motor Features:Explosive output power: The output of the motor is powerful and explosive. Taking 3652-3250KV as an example and comparing it with the same specification, there is more than 10% increase in maximum output power.Excellent performance, temperature is lowered: The motor efficiency is significantly higher when comparing it with the same specification. Taking 3652-3250KV as an example, the efficiency of the rear section is 8% higher, motor temperature is lower under the same load condition.Explosion-proof rotor design, strong and reliable: The rotor is designed with front and rear aluminum end plates, which greatly improves the overall balance. At the same time, the rotor is wound with high-strength tensile materials and has strong explosion-proof ability.Solid material, strong and reliable: It adopts high-hardness aluminum CNC end cover. 0.2mm ultra-thin and low-loss silicon steel sheet. Top of the line high-precision and high-quality bearings. 200deg.C high-temperature-resistant enameled wire. High current silicone wires.Detachable design for easy maintenance: The motor adopts a modular detachable structure design, which is convenient for routine cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor. Motor Specifications:KV: 4000KVLiPos: 2-3SNo-load Current (A): 5.3ADiameter/Length(mm): O=36mm(1.42"), L=52mm(2.05")Shaft Diameter/Length(mm): O=3.175mm(0.13"), L=15mm(0.59")Bearing size(mm): Front= D13*D5*T4, Rear= D13*D5*T4Poles: 4Weight(g): 224gApplications: 1/10 On-road, Buggy, Track (Light load)
