2280 High Torque Metal Gear Waterproof Brushless Digital Servo

Servo Overview:

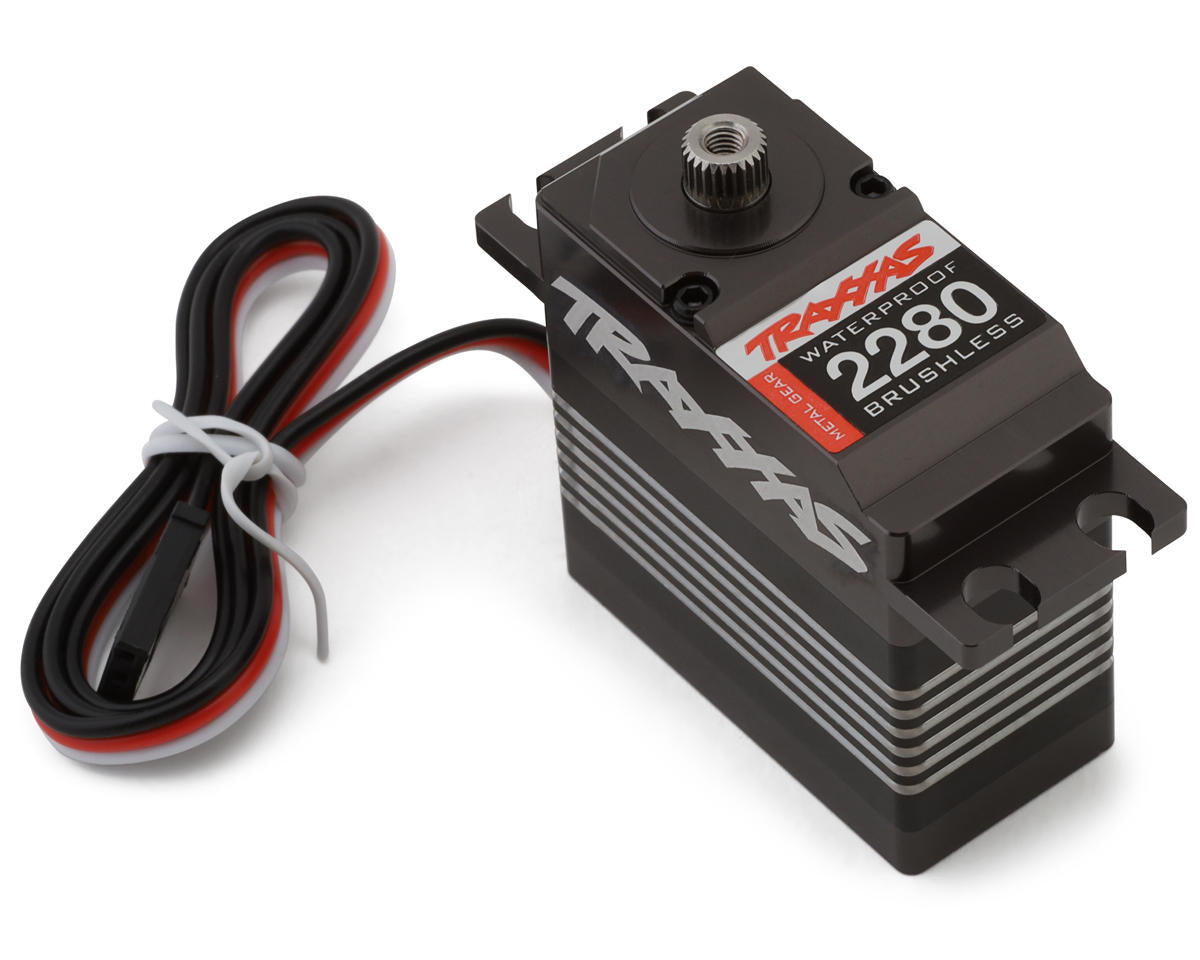

Introducing the Traxxas® 2280 High Torque Metal Gear Waterproof Brushless Digital Servo. This is a high-performance upgrade designed to enhance the steering capabilities of 1/10 and 1/8 scale platforms. It delivers exceptional torque, with 600 ounces per inch at 6 volts and over 700 ounces per inch at 7.4 volts, making it powerful enough to handle even the heaviest trucks with ease. This makes it an ideal choice for vehicles requiring robust steering power, such as the Traxxas Sledge®, Raptor R™, Revo®, and lifted TRX-4®* models with larger 2.2 inch wheels and tires. Equipped with a brushless motor, the servo delivers exceptional efficiency, longevity, and performance. The servo features full steel gears, ensuring durability and reliability even under extreme stress. The inclusion of ball bearings enhances smooth operation and reduces wear and tear, contributing to the servo's longevity.

Note: When installing this servo on the Traxxas TRX-4, the Traxxas Complete BEC Kit with Receiver Box Cover (TRA2262-sold separately) is required.

Features:

• High torque design ensures sufficient power for demanding applications
• Equipped with a brushless motor, ensuring exceptional performance
• Precise control and quick response times, crucial for high-speed, high-demand applications
• Ball bearings enhance smooth operation and reduce wear and tear
• Finned aluminum case aids in heat dissipation
• Easy drop-in installation into most Traxxas 1/10 and 1/8 models

Specifications:

• Suggested Application: 1/10 - 1/8 Scale
• Input Voltage: 6-7.4V
• Speed:
• @6.0V: 0.13sec/60°
• @7.4V: 0.09sec/60°
• Torque:
• @6.0V: 600oz-in (43.2kg-cm)
• @7.4V: 705oz-in (50.8kg-cm)
• Pulse/Frequency: in (mm)
• Motor Type: Brushless - Digital
• Operating Spline: 25T
• Gear Material: Metal
• Dimensions: -
• Servo Lead Length: -
• Weight:2.26oz (64g)

Includes:

• (1) Traxxas 2280 High Torque Metal Gear Waterproof Brushless Digital Servo
