TRX-4M Ford Bronco
TRX-4M Ford Bronco
Regular price
$159.95 USD
Regular price
Sale price
$159.95 USD
Unit price
/
per
You might also need...
SKU:97074-1
TRX-4M Ford Bronco
-
Officially Licensed Ford® Bronco Clipless Body
- Highly-detailed ABS hard body
- Molded-in color won’t chip or flake
- Tough fender flares and rock sliders
- Realistic side mirrors, door handles, & wipers
- LED bumper lights
- Heavy-duty latching clips
- Hold tightly on the trail
- Release in just seconds
- Highly-detailed ABS hard body
-
ECM-2.5™ Electronic Control Module
- Incorporates ESC, receiver, and LED controller in one chassis
- Fully waterproof for all-weather fun
- Three drive profiles
- Sport Mode — forward / brake / reverse
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Built-in Pro Scale® LED functionality
- Two stage low voltage protection (LVD)
- Motor overload protection
-
TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
-
Titan® 180 87-Turn Brushed Motor
- Fixed gear mesh doesn’t require adjustment
- Forward mounting position for improved crawling dynamics
-
Heavy-Duty Steel Ladder Frame
- Deep C-channel design
- Thicker center section for maximum rigidity
- Rails run from bumper to bumper
-
Drivetrain
- Full-time shaft-driven 4-wheel drive
- Solid steel axles
- Spool-equipped front and rear axles
- Heavy-duty CV center driveshafts
-
Low-CG Battery Tray
- Concentrates weight lower for improved stability
- Wide rubber strap secures battery in place
-
Optional Transmission Ratios (sold separately)
- Optional Low Range or Speed Gearing transmissions
- Modular design swaps out in minutes
-
Steering
- Heavy-duty 2065T steering servo
- Metal main gear
- Superior 45° steering angle
- Direct steering (no servo saver)
- Heavy-duty 2065T steering servo
-
Suspension
- Triangulated 4 link front and rear
- Heavy-duty rod ends
-
Oil-Filled GTM™ Shocks
- Provides smooth controlled damping
- Realistic driving body movements
- Adjustable pre-load spacers
- Easily refreshed with available rebuild kits
-

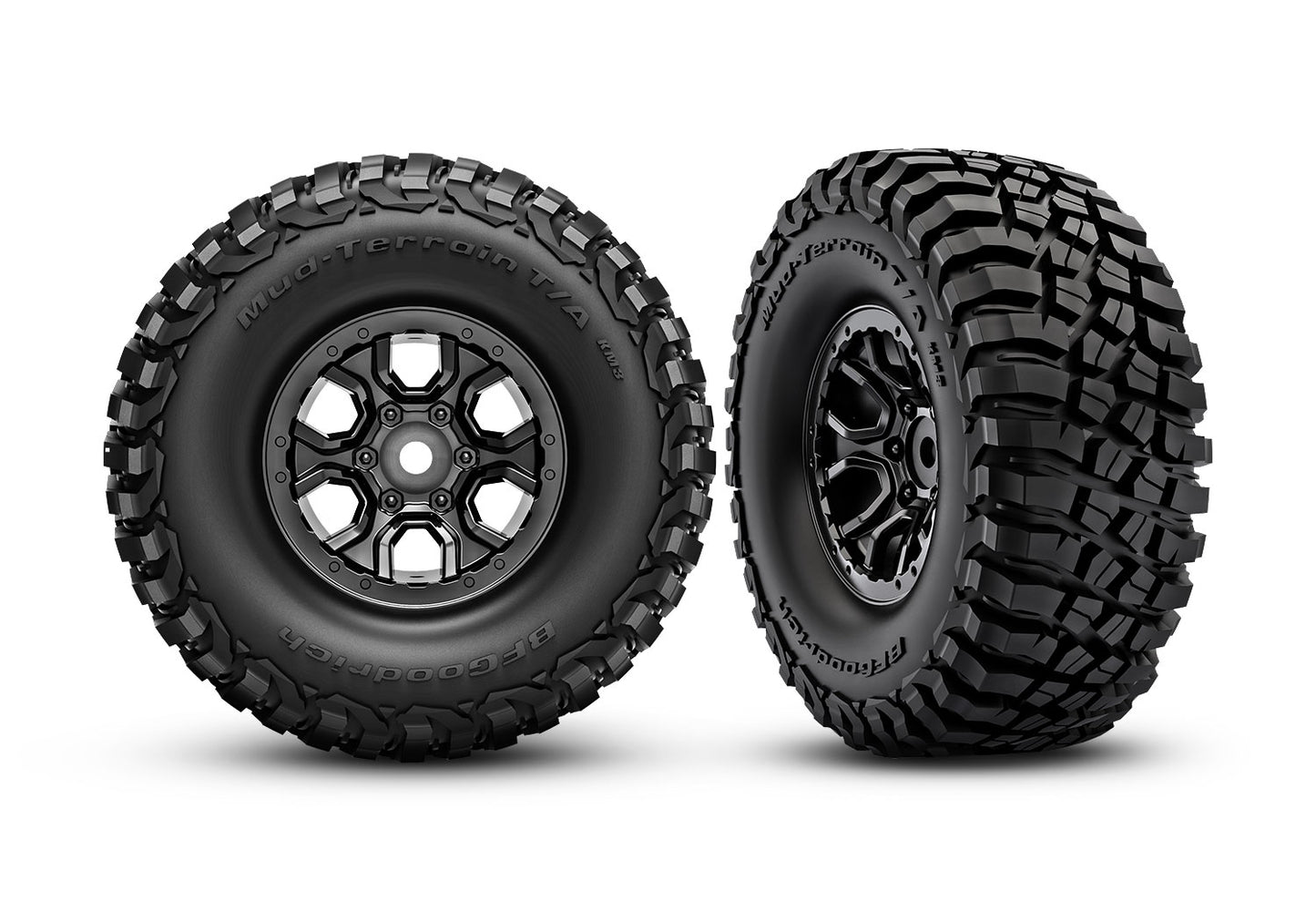

Wheels and Tires
- Highly-detailed 1″ wheels
- 7 mm hex
- Replica BF-Goodrich® Mud Terrain T/A® KM3 tires
- Trail-tuned rubber compound
- Highly-detailed 1″ wheels
-
Battery and Charger Included
- High-capacity 2-cell LiPo battery with iD®
- 7.4 volts
- 750 mAh for over an hour of run time
- 2-amp USB-powered charger
- iD® technology for faster, safer charging
- High-capacity 2-cell LiPo battery with iD®
- Low-Maintenance Self-Lubricating Bushings
- Durable Hex hardware
Model Specs
Model Name: | TRX-4M Ford Bronco |
---|---|
Model Type: | Trail / Crawler |
Model Skill Level: | 1 |
Scale: | 1/18 |
Weight: | 1.03 pounds (468 g) |
Length: | 10.3 inches (262 mm) |
Width: | 4.9 inches (124 mm) |
Front Track: | 4.9 inches (124 mm) |
Rear Track: | 4.9 inches (124 mm) |
Height: | 4.6 inches (117 mm) |
Wheelbase: | 6.1 inches (155 mm) |
---|---|
Center Ground Clearance: | 1.12 inches (29 mm) |
Drivetrain: | Shaft-driven 4WD |
Transmission: | Single speed direct drive |
Differential Type: | Locked spool |
Gear Ratio (Internal): | 11.38 |
Gear Pitch: | 64 pitch |
Servo(s): | 2065T |
Radio System: | TQ 2.4 GHz 2-channel transmitter |
Battery Compartment Specs: | 51 mm X 31 mm |
Motor Specs
Motor Name: | Titan 180 |
---|---|
Motor Type: | 87-turn brushed motor |
Motor Weight: | 1.16 ounces (33 g) |
Motor Length: | 1.66 inches (42 mm) |
Motor Diameter: | .81 inches (21 mm) |
ESC Specs
ESC Name: | ECM 2.5™ |
---|---|
ESC Type: | Brushed |
ESC Case Size: | 1.79 inches ( 45 mm) x 1.26 inches (32 mm) x 0.6 inches (15 mm) |
ESC Weight: | .92 ounces ( 26 g) |
